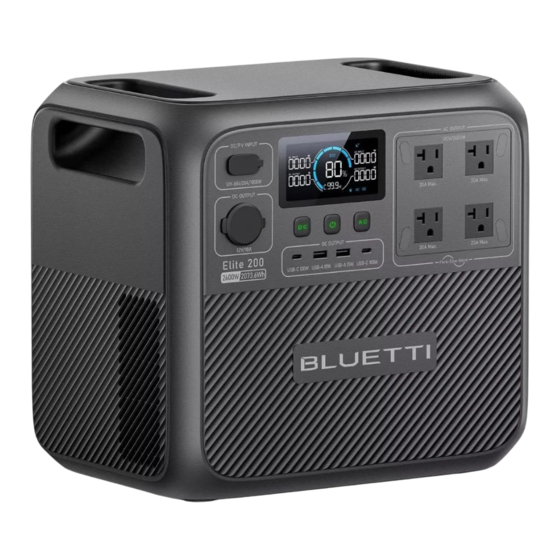

Elite 200 V2
Portable Power Station
User Manual
V1.2
Important Instructions
For the best experience and performance,
fully charge your unit and update to the latest firmware
before first use. See the appendix "Update Firmware via
BLUETTI App" for guidance.
Read and understand this manual before use and keep
it handy for future reference.
Advertisement
Table of Contents
Related Manuals for Bluetti Elite 200 V2
Summary of Contents for Bluetti Elite 200 V2
- Page 1 Elite 200 V2 Portable Power Station User Manual V1.2 Important Instructions For the best experience and performance, fully charge your unit and update to the latest firmware before first use. See the appendix "Update Firmware via BLUETTI App" for guidance.
- Page 2 Tips 1. Charge the unit before first use. 2. Do not use solar panels with open circuit voltage higher than 60V. Solar input voltage range for the unit is 12V-60V. 3. If the unit's SoC falls below 5%, please recharge the unit in time. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
-
Page 3: Legal Information
Shenzhen PowerOak Newener Co., Ltd. Notice BLUETTI's products and services are subject to the terms and conditions agreed upon during purchase. Some aspects described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, BLUETTI makes no express or implied representations or warranties regarding the contents of this manual. -
Page 4: Table Of Contents
Contents Safety Information What's in the Box Get to Know Your Elite 200 V2 Elite 200 V2 Overview LCD Display Use Your Elite 200 V2 Power On/Off Charging Options Power Your Devices Configure Your Elite 200 V2 Setting Mode AC Charging Mode... -
Page 5: Safety Information
1. Safety Information INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS WARNING - When using the product, basic precautions should always be followed, including the following: • Read all the instructions before using the product. • Handle the product with care, avoiding drops, violent impacts, or tilting. - Page 6 • WARNING - RISK OF ELECTRIC SHOCK. Never use the product to power tools to cut or access live parts, wirings or materials containing them, such as building walls. • Have servicing performed by a qualified repair person using only identical replacement parts.
- Page 7 Grounding Instructions (For AC charging only) • This product must be grounded when connected to the grid. If this product should malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. • The product is equipped with an AC charging cable having an equipment grounding conductor and a grounding plug.
-
Page 8: What's In The Box
12V DC Power Cable* Lead-acid Battery Charging Cable Cig lighter plug - DC5521-F Cig lighter plug - Clamps (28.35in / 0.72m) (19.69in / 0.5m) * Used to charge devices with DC5521 input using Elite 200 V2's cigarette lighter port. JUST POWER ON... -
Page 9: Get To Know Your Elite 200 V2
3. Get to Know Your Elite 200 V2 3.1 Elite 200 V2 Overview ① ⑦ Circuit Breaker DC Power Button ② ⑧ LCD Display AC Input ③ ⑨ Power Button USB-A Ports ④ ⑩ USB-C Ports AC Power Button ⑤... -
Page 10: Lcd Display
3.2 LCD Display 2 3 4 6 7 8 9 ① ⑩ ⑲ Progress Bar* AC Input Power Battery Status* ② ⑪ ⑳ Standard/Turbo Charging AC Output Power Low Temperature ③ ⑫ ㉑ ECO Mode Inverter Voltage High Temperature ④ ⑬... -
Page 11: Use Your Elite 200 V2
• When Elite 200 V2 is on, press the power button to turn on/off the display. • If there is no DC or AC output for over one minute, the Elite 200 V2 automatically powers off. • By default, the display turns off after one minute of inactivity. You can adjust the sleep time via the app. -
Page 12: Charging Options
Plug the Elite 200 V2 into a standard wall outlet. It stops charging when fully charged to prevent overcharging. For quicker charging, enable Turbo Charging in the app. This lets the Elite 200 V2 reach 80% charge in approximately 1 hour and 100% in about 1.4 hours, at an ambient temperature of 25°C (77°F). - Page 13 Car (12V / 24V) Connect the Elite 200 V2 to your car's 12V or 24V cigarette lighter port or socket using the car charging cable. It charges at up to 96W with a 12V port and 192W with a 24V port.
-
Page 14: Power Your Devices
4.3 Power Your Devices AC Outlets 2,800W Max. (AC + DC Output) Note: When servicing the devices connected to the unit, remember to unplug them from the outlets. Even if the AC output is turned off, physically unplugging the devices is necessary for complete disconnection. DC Outlets 12V / 10A 100W Max. -
Page 15: Configure Your Elite 200 V2
2 seconds. The frequency icon flashes. Exit the Mode: Press and hold both the AC and DC power buttons again. If left idle for 1 minute, the Elite 200 V2 automatically exits without saving any changes. Adjust settings in Settings Mode. -
Page 16: Ac Charging Mode
5.3 Power Lifting Mode Power Lifting mode is disabled by default. It allows Elite 200 V2 to power up to 3,900W pure resistive loads like kettles, electric blankets, hairdryers, and similar heating devices. Note: This mode is only for pure resistive loads rated 2,600W-3,900W. While the Elite 200 V2 can handle such loads, its actual output power is still 2,600W. -
Page 17: View Device Information
Version 7. UPS Feature Connect Elite 200 V2 to the wall, and it directly draws power from the outlet to operate connected devices. It swiftly switches to battery power within 15 ms during an outage. Set UPS modes in the app. - Page 18 Grid Elite 200 V2 Elite 200 V2 Elite 200 V2 • PV Priority Efficiently uses solar energy. Elite 200 V2 initially charges from the grid to a set SoC and seamlessly switches to solar replenishment. Battery capacity 100% AC Loads...
-
Page 19: Grid Self-Adaption Mode
8. Grid Self-adaption Mode When charging with an unstable generator or grid power, or if consumption power exceeds charging power, enable this mode in the app. The Elite 200 V2 automatically adjusts to handle power fluctuations, protecting the unit and connected devices from potential issues due to variations in power quality. -
Page 20: Adjust Grid Input Current
For settings above 12A, please contact BLUETTI support for help. • If the current is set above 12A, the Elite 200 V2 switches to Turbo charging mode. For settings of 12A or below, it switches to Standard charging mode. 10. System Switch Recovery Enable this feature in the app to save the on/off settings for the AC and DC power buttons when the battery drops to 0%. -
Page 21: Maintenance And Care
11. Maintenance and Care • If the unit's SoC falls below 5%, please recharge the unit in time. • Before storing, charge to 40%-60% SoC, then power off and disconnect all cables. • Store it in a cool, dry place, away from flammable materials. •... -
Page 22: Specifications
12. Specifications Model Elite 200 V2 Battery Capacity 2,073.6Wh (54Ah) Battery Type LiFePO Weight 24.2kg (53.35lbs) Dimensions (L × W × H) 350 × 250 × 323.6mm (13.78 × 9.84 × 12.74in) Charging Temperature 0°C to 40°C (32°F to 104°F) Discharging Temperature -20°C to 40°C (-4°F to 104°F) -
Page 23: Troubleshooting & Faq
• Contact utility company if necessary. • Verify home grid frequency. E115 Grid overfrequency • Contact utility company if necessary. • Verify home grid frequency. Grid underfrequency E116 • Contact utility company if necessary. Others • Contact BLUETTI support for help. JUST POWER ON... -
Page 24: Appendix
How to calculate the operation time? Operation time = Battery Capacity x DoD x η ÷ (Load + Elite 200 V2 Self-consumption) Note: DoD (Depth of Discharge) is 90%. η (inverter efficiency) is over 85%. The Elite 200 V2 self-consumption is about 10W. - Page 25 2. Log in or sign up Log in with a BLUETTI account. If there is no account, create one by following the on-screen instructions. 3. Bind the unit • Tap Add Device directly or access My Devices > Add Device to start the process.
-
Page 26: Grounding Guidelines
5. Check for Firmware Updates Tap Upgrade to access the Upgrade page. The app will check for the latest firmware version available for the unit. 6. Download and Install the Update If a new firmware update is available, tap Upgrade and follow the on-screen instructions. Note: •... -
Page 27: Compliance
Compliance • FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 28 RF exposure statement: The equipment complies with IC Radiation exposure limits set forth for uncontrolled environments. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
- Page 29 • Faire pas utiliser un batterie paquet ou appareil que est endommagé ou modifié. Endommagé ou modifié batteries peut exposition imprévisible comportement résultant dans feu, explosion ou risque de blessure. • Poignée le produit avec prudence dans faible air pression environnements à prévenir explosion ou des fuites.
-
Page 30: Élimination Et Recyclage
Attention Pas permis sur avion. • Quand mise en charge avec plomb-acide batteries ou en utilisant le produit à charge eux, suivre ces sécurité précautions: a. Porter oeil et vêtements protection; faire pas touche yeux quand fonctionnement près un batterie. b. - Page 31 Need Help? We're here for you! +1 800-200-2980 (Mon-Sun 9:00-17:00) service@bluettipower.com @ BLUETTI Official @ bluetti_inc @bluetti.inc @bluetti.inc Visit Us SHENZHEN POWEROAK NEWENER CO., LTD. 19F, Block A, Kaidaer Bldg., No. 168 Tong Sha Rd, Shenzhen, China BLUETTI Power Inc.
- Page 32 Cer t ifi ca te Inspector: Q C : P/N: 17.0303.0811-00A0...
