Summary of Contents for Bluetti EB200P

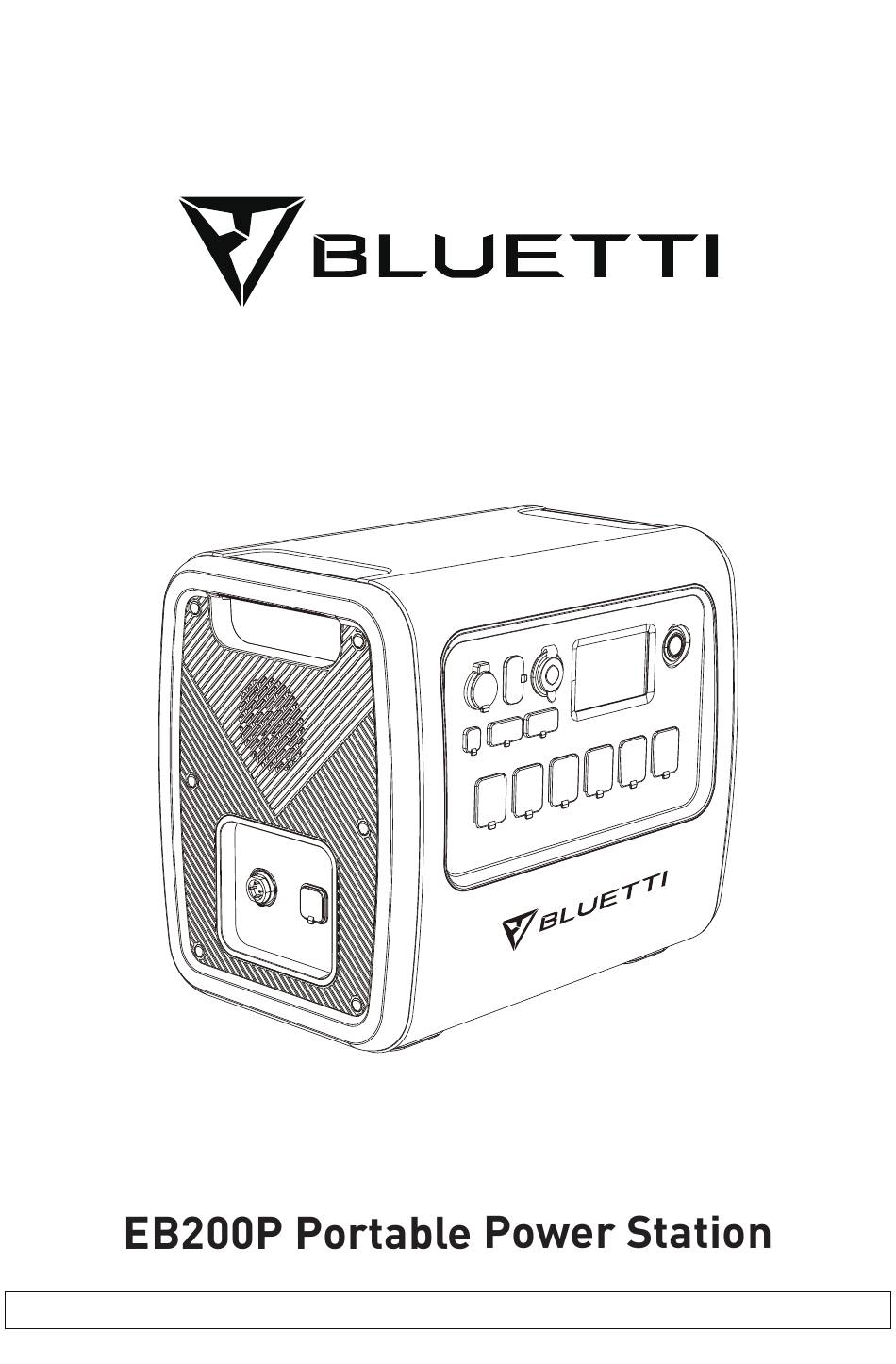

- Page 1 Please read and fully understand this manual before use and keep it handy for future reference.
- Page 2 User Manual Please read and fully understand this manual before use and keep it handy for future reference.
-
Page 3: Table Of Contents
CONTENTS 1. BRIEF INTRODUCTION ..…………………………………......………01 2. ABBREVIATION ..…………………………………………........01 3. SAFETY INSTRUCTION ..………………………......………………01 4. IN THE BOX ..…………………………………..........………02 5. FUNCTIONS ..………………………………...........…………04 6. LET'S GET STARTED ..…………………………......………………05 7. TOUCHSCREEN GUIDE ..……………....…………....………………05 8. CHARGING ..…………………...………..…..........………08 9. DISCHARGING …..…………………………..………........……11 10. APPLICATION SCENARIO ……..…………………....……………..11 11. EXAMPLES OF LOADS ……..…………..………......………………11 12. -
Page 4: Brief Introduction
● Grid: Home Power Supplied by Utility ● DOD: Depth of Discharge ● ECO Mode: A power-saving setting for the EB200P. When it is on, the AC power will automatically turn off over 4 hours low (≤50W) or no load to save power drain from the inverter. -
Page 5: In The Box
● DO NOT move the EB200P in use since vibrations and sudden impacts may lead to poor connections to the hardware inside. ● Please read and fully understand the operating instructions of the electrical products to be connected. Failure to operate the electrical products properly may result in accidents or injuries. - Page 6 Certificate of QC PASS 1PCS Optional Accessories Picture Category Type Lead-acid Battery Charging Clamp Charging EB200P through lead-acid battery only. Optional DO NOT charge the lead-acid battery via this cable. Input Multifunctional Input Cable Cable (XT90 - DC7909) Expand the charging methods via AC input port.
-
Page 7: Functions
DC 5521 12V/10A output x 2pcs Traditional ports for routers/cameras, old Place your phone (if wireless charging laptop, etc. supported) on the top of the EB200P horizontally, and turn on the DC. DC 12V/30A output Special 30A output port adapted to most Interaction LCD touchscreen appliances, perfect for RV. -
Page 8: Let's Get Started
6. LET'S GET STARTED (1) Startup: short press the power button, the indicator light will be on, and the machine will be on standby. (2) Shutdown: press and hold the power button for several seconds, and the indicator light will be off and the machine will shut down. The LED indicator lamp status explanation BMS Over-current or short circuit protection The indicator light flashes and then turns off. - Page 9 ● UK output: 230V/50Hz ● US output: 120V/60Hz DC Input Source: Select the right method you choose to charge the EB200P. ECO Mode: When it is on, the AC power will automatically turn off over 4 hours low (≤50W） or no load to save power drain from the inverter.
- Page 10 （Figure 2） (3) Back to the Homepage, tap the 'Data' to enter the Data section (Figure 3). ● Tap the 'Product Info', you can view the product model, software version, BMS version, and so on; ● Tap the 'Inverter & Charger Info', you can view the input and output information, which can also be accessed directly from the shortcut on the Homepage;...
-
Page 11: Charging
8. CHARGING (1) From the AC wall outlet ● Turn the EB200P on and connect the adapter plug to the wall outlet, the other end to the AC input port. Charging will automatically stop when it gets fully charged. AC socket ▲... - Page 12 (3) From the car cigarette lighter port ● Turn the EB200P on and connect it to the car cigarette lighter port via the car charging cable. ● Enter the setting section as Figure 1 to set the 'DC Input Source' into 'Others'.
- Page 13 ● Set the 'DC Input Source' to 'PV' to achieve AC + PV Dual Charging. ● Set the 'DC Input Source' to 'Others' to achieve AC + Adapter/Lead-acid Battery Charging. Adapter Solar Panels Lead-acid Battery (EB200P Dual Charging System) - 10 -...
-
Page 14: Discharging
(1) Most electrical appliances in the market apply to the specifications of 12V/30A, 12V/10A, cigarette lighter port, USB-A, USB-C output ports of the EB200P. But still, the charging of some products may trigger overload protection if it generates a massive instantaneous power at the moment of starting. -
Page 15: Estimation Of Operating Time
3:1. Thus, it's recommended to apply the EB200P to the electrical appliances with lower-rated power. (3) If an output over-current, overload, or short circuit occurs, the EB200P will turn off the corresponding output port. Then it will automatically start again (at an interval of 20s). -
Page 16: Technical Specifications
13. TECHNICAL SPECIFICATIONS General Specs Rated Output power Typical Capacity Battery Type Net Weight About 28.1KG/61.9lbs 2000W 2200W 2048Wh LiFePO4 (The weight may vary 2000W<load<2500W, 2min； 2200W<load<2750W, 2min； due to measurement 2500W<load, 8~10S 2750W<load, 8~10S differences.) Dimensions Charging Discharge Working Working Temperature Temperature... -
Page 17: Troubleshooting
14. TROUBLESHOOTING Error Code Description PV Over Voltage DC Output Short Circuit Adapter Over Voltage Adapter Low Voltage Adapter Relay Error Adapter Over Current USB-A/USB-C/PD Over Current 12V/10A Over Current 12V/30A Over Current DC Start Failure DC Output Relay Error BUS Start Failure Inverter Start Failure BUS Low Voltage... -
Page 18: Faq (Frequently Asked Questions)
Yes, it supports pass-through charging. Please keep the equipment laid flat during use, charging, and discharging. ● How to store the EB200P? It is recommended to charge the unit to 60-80% SOC every 3 months to extend the battery life. -
Page 19: Declaration
16. DECLARATION ● Please note that specifications, appearance, and other upgrades are subject to improvement without prior notice. ● The company shall not be liable for any damage caused by force majeure, such as fires, typhoons, floods, earthquakes, or the user's intentional negligence, misuse, or other abnormal conditions. - Page 20 Company: POWEROAK GmbH Address: Lindwurmstr. 114, 80337 München Germany Mail: logi@bluetti.de Company: POWEROAK ENERGY UK CO., LTD Address: Suite 108 Chase Business Center 39-41 Chase Side London United Kingdom N14 5BP Mail:poweroak.eu@bluetti.com P/N:17.0303.0434-01A1...
