ECOVACS DEEBOT N10 PLUS Manual

Introduction

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specific problem or question.
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

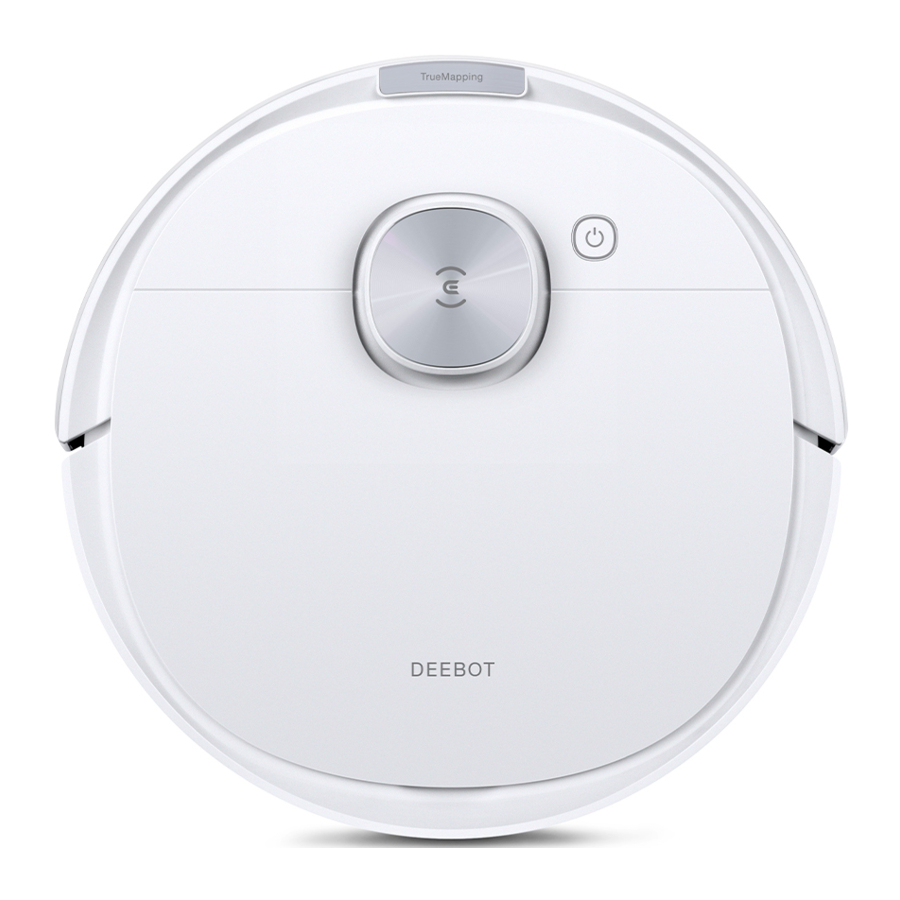

Robot
Product Diagram - Part 1
Product Diagram - Part 2

Auto-Empty Dust Bin
Product Diagram - Part 3

Bottom View
Product Diagram - Part 4

Auto-Empty Station
Product Diagram - Part 5

Auto-Empty Station (Back)
Product Diagram - Part 6

Auto-Empty Station (Top)
Product Diagram - Part 7

Auto-Empty Station (Bottom)
Product Diagram - Part 8

Reservoir
Product Diagram - Part 9

Operating and Programming

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Put away objects including cables, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the Detection Sensor.

Quick Start

Remove Protective Materials
Install Side Brushes

* For carpet use only When Auto-Empty Station is placed on a carpet, install the Ramp Extension to the station for DEEBOT to return to charge successfully.

Charging DEEBOT

Auto- Empty Station Placement
Power ON
Note: = ON, = OFF.
DEEBOT cannot be charged when being powered OFF.
Charge DEEBOT
Empty remaining water from the Reservoir and remove the Reservoir and the mopping pad plate before charging DEEBOT. flashes w hen DEEBOT is charging. goes out when DEEBOT is fully charged.

ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.

Before you start, make sure that:

Your mobile phone is connected to a Wi-Fi network.
The 2.4GHz band wireless signal is enabled on your router.
The Wi-Fi indicator light on DEEBOT is slowly flashing.

Wi-Fi Indicator Light

	Slowly flashing	Disconnected to Wi-Fi or waiting for Wi-Fi connection
	Rapidly flashing	Connecting to Wi-Fi
	Solid	Connected to Wi-Fi

Tips: If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual.

Operating DEEBOT

During the first cleaning, please supervise DEEBOT and assist it should there be a problem.

Start
Pause
Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
Return to Charge
Pressing for 3seconds to send DEEBOT back to the Auto-Empty Station.
* When Auto-Empty Station is connected to power, DEEBOT automatically returns to the station to charge and empty the Dust Bin as it needs.

OZMO Mopping System

Note: To prolong the service life of the reservoir, it is recommended to use purified water or softened water for OZMO mopping system.
Note: When DEEBOT is mopping, DEEBOT automatically detects the carpet and keeps away from it. If you need to clean the carpet, please uninstall the mopping pad plate first.

Maintenance

Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part	Maintenance Frequency	Replacement Frequency
Washable Mopping Pad	After each use	Every 50 washes
Antibacterial Dust Bag	/	Antibacterial Dust Bags should be replaced when prompted by the Indicator Light/ECOVACS HOME App.
Reservoir/Mopping Pad Plate	After each use	/
Side Brush	Once every 2 weeks	Every 3-6 months
Main Brush	Once per week	Every 6-12 months
Antibacterial Filter	Once per week	Every 3-6 months
Universal Wheel Anti-Drop Sensors Bumper Charging Contacts Auto-Empty Station Pins	Once per week	/

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Auto-Empty Station. A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

OZMO Mopping System

OZMO Mopping System
Clean the water inlet filter on the bottom of the Reservoir if it is clogged.

Auto-Empty Dust Bin and Filters

Dust Bin

Filter
Auto-Empty Dust Bin and Filters

Main Brush and Side Brushes

Main Brush

Side Brushes

Auto-Empty Station

Note: Before performing cleaning and maintenance on Auto-Empty Station, unplug it first.
* For a proper maintenance, wipe with a clean dry cloth, and avoid using any detergent or cleaning spray.

Auto-Empty Station Pins

Infrared Signal Emitter

Antibacterial Dust Bag

Dispose the Antibacterial Dust Bag
* The Antibacterial Dust Bag will be sealed by the handle so the dust will not leak.
Clean the Blower Cover
Close the Dust Container Lid
Install the Antibacterial Dust Bag

Dust Evacuation Tube

Other Components

Note: Before cleaning the robot's Charging Contacts and Auto-Empty Station Pins, turn the robot OFF and unplug the Auto-Empty Station.
Other Components - Step 1
Other Components - Step 2

Storage

If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage. Charge DEEBOT every 1.5 month to prevent battery drain.

Note: When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging.

Indicator Light

DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website.

Indicator Light	Scenario
AUTO Mode Button glows a solid WHITE.	The robot is cleaning.
AUTO Mode Button glows a solid WHITE.	The robot is paused while cleaning.
AUTO Mode Button flashes WHITE.	The robot is charging.
	The robot is starting.
	The robot is relocating.
AUTO Mode Button glows a solid RED.	The robot has low battery.
AUTO Mode Button flashes RED.	The robot has a problem.

Troubleshooting

No.	Problem	Possible Causes	Solutions
1	DEEBOT is not charging	DEEBOT is not switched ON.	Switch ON DEEBOT.
		DEEBOT has not connected to the Auto- Empty Station.	Be sure that the robot's Charging Contacts have connected to the Auto-Empty Station Pins.
		The Power Cord is not connected to the Auto-Empty Station.	Make sure the Power Cord is firmly connected to the Auto-Empty Station.
		The Auto-Empty Station is not connected to the power supply.	Make sure the Auto-Empty Station is connected to the power supply.
		The battery is completely discharged.	Please contact Customer Care for help.
2	DEEBOT cannot return to the Auto-Empty Station	The Auto-Empty Station is not correctly placed.	Refer to Charging DEEBOT section to correctly place the Auto-Empty Station.
		The Auto-Empty Station is not correctly connected.	Make sure the Auto-Empty Station is correctly connected.
		The Auto-Empty Station is manually moved during the cleaning.	It is suggested not to move the Auto-Empty Station during the cleaning.
		DEEBOT is paused for more than 90 minutes.	It is suggested not to pause DEEBOT for more than 90 minutes.
		DEEBOT did not start cleaning from the Auto- Empty Station.	Make sure DEEBOT starts cleaning from the Auto-Empty Station.
3	DEEBOT gets stuck while working and stops	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
3	DEEBOT gets stuck while working and stops	DEEBOT might be stuck under furniture with an entrance of similar height.	Please set a physical barrier, or set a Virtual Boundary in the ECOVACS HOME App.
4	DEEBOT returns to the Auto- Empty Station before it has finished cleaning.	Working time varies according to floor surface, room complexity and the Cleaning Mode selected. When the battery gets low, DEEBOT automatically switches to Recharge Mode and returns to the Auto-Empty Station to recharge itself.	Turn on Continuous Cleaning function in ECOVACS HOME App. DEEBOT will automatically resume the uncompleted cleaning cycle when Continuous Cleaning is enabled.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
		The Auto-Empty Station is too distant from the center of the house.	Please place the Auto-Empty Station against the wall of a central room of the house.
5	DEEBOT does not clean automatically at the scheduled time.	Time Scheduling function is cancelled.	Program DEEBOT to clean at specific times using the ECOVACS HOME App.
		DEEBOT is switched OFF.	Switch ON DEEBOT.
		The robot's battery is low.	Keep DEEBOT switched ON and connected to the Auto- Empty Station to make sure it has a full battery to work at any time.
6	The water is not coming out of the Reservoir when DEEBOT is mopping.	The water inlet filter on the bottom of Reservoir is clogged.	Unscrew the water inlet on the bottom of Reservoir and clean the filter.
		The Reservoir runs out of water.	Add water into the Reservoir.
		The water outlets on the bottom of DEEBOT are clogged.	Check the water outlets on the bottom and clean.
7	DEEBOT misses cleaning spots to be cleaned, or repeats cleaning the area cleaned.	The cleaning cycle is interfered by small objects or barriers on the floor.	Remove power cords and small objects from the floor to ensure cleaning efficiency. DEEBOT will automatically clean the area missed, please avoid moving DEEBOT manually or block the path during the cleaning cycle.
		DEEBOT is working on slippery polished floors.	Make sure the floor wax is dried before DEEBOT starts cleaning.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
		The TrueMapping Distance Sensor is blocked.	Remove the objects that are blocking the TrueMapping Distance Sensor.
8	DEEBOT is making too much noise when cleaning	DEEBOT is tangled or blocked with debris.	Clean DEEBOT as described in Maintenance section and restart. If the trouble persists, please contact Customer Care.
9	DEEBOT is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		Incorrect App installed.	Please download and install ECOVACS HOME App.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		Network setup started before DEEBOT was ready.	Turn ON Power Switch. Press the RESET Button. DEEBOT is ready for network setup when its Wi-Fi Indicator light flashes slowly.
		DEEBOT does not support 5 GHz Wi-Fi.	Indicator light flashes slowly. Make sure the robot has been connected with 2.4 GHz Wi-Fi network.
		Your smartphone's operating system needs to be updated.	Update your smartphone's operating system.
10	DEEBOT does not clean the whole area	The cleaning area is not tidy.	Remove small objects from the floor and tidy up the cleaning area before DEEBOT starts cleaning.
11	DEEBOT reservoir drops out of place during use	The reservoir is not correctly installed.	Make sure DEEBOT reservoir clicks into place when installing.
12	DEEBOT Side Brushes drop out of place during use	The Side Brushes are not correctly installed.	Make sure the Side Brushes click into place when installing.
13	DEEBOT does not start auto- emptying after returning to the Auto-Empty Station.	The Dust Container Lid is not closed.	Close the Dust Container Lid.
		The Antibacterial Dust Bag is not installed to the Auto-Empty Station.	Install the Antibacterial Dust Bag and close the Dust Container Lid.
		Manually move DEEBOT to the Auto-Empty Station will not trigger Auto-Emptying.	In order to make sure DEEBOT starts auto-emptying successfully, avoid picking up and moving the Auto- Empty Station during the cleaning.
		DEEBOT returns to the Auto-Emptying Station running Video Manager in the App.	This is normal.
		Do Not Disturb mode is enabled in ECOVACS HOME App.	This is normal. Disable Do Not Disturb mode in the App, or start auto-emptying manually.
		The Antibacterial Dust Bag is full.	Replace the Antibacterial Dust Bag and close the Dust Container Lid.
		If the possible causes are excluded, it might be a component malfunction.	Please contact customer service.
14	DEEBOT fails to auto-empty the Dust Bin.	The Auto-Empty Dust Bin is not installed.	Please install the Auto-Empty Dust Bin with two Auto- Empty Outlets on the bottom.
		The Antibacterial Dust Bag is full.	Replace the Antibacterial Dust Bag and close the Dust Container Lid.
		The Auto-Empty Outlets on the Auto-Empty Dust Bin is stuck by debris.	Uninstall the Auto-Empty Dust Bin and clean the debris on the Auto-Empty Outlets.
		Dust Evacuation Tube is blocked.	Clean the Dust Evacuation Tube.
15	There is debris in the Dust Container.	Fine particles are absorbed inside the Dust Container through the Antibacterial Dust Bag. The Antibacterial Dust Bag is damaged.	Clean the Dust Container Lid and inner wall. Check the Antibacterial Dust Bag and replace it.
16	DEEBOT leaks dust or debris while cleaning.	The Auto-Empty Outlets are stuck by debris.	Uninstall the Auto-Empty Dust Bin and clear the debris.
17	The Base is dirty.	Main Brush has debris on it and requires cleaning.	Clean the Main Brush.

Wi-Fi Connection
Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network meet the following requirements.
DEEBOT and Mobile Phone Requirements

DEEBOT is fully charged and the power switch of DEEBOT is turned on.
Wi-Fi status light slowly flashes.
Turn off mobile phone's cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

You are using a 2.4GHz or 2.4/5 GHz mixed network.
Your router supports 802.1 lb/g/n and IPv4 protocol.
Do not use a VPN (Virtual Private Network) or Proxy Server.
Do not use a hidden network.
WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
WEP EAP (Enterprise Authentication Protocol) is not supported.
Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

Technical Specifications

Model	DBX41
Rated Input	20V 1A
Docking Station Model	CH1918		CH1822 (Sold Separately)
	Rated Input	120V 50-60Hz 8A	Rated Input	50-60Hz 0.5A
	Rated Output (Charging)	20V1A	Rated Output	20V 1A

Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.

Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS
For Household use only When using an electrical appliance, basic precautions should always be followed, including the following:

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.

Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
Please make sure your power supply voltage matches the power voltage marked on the Docking Station.
Do not handle plug or appliance with wet hands.
Non-rechargeable batteries are prohibited.
Do not use without dust bin and/or filters in place.
Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned.
Do not use and store in extremely hot or cold environments (below -5 ºC/23 ºF or above 40º/104 ºF. Please charge the robot in temperature above 0 ºC/32 ºF and below 40 ºC/104 ºF.
Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
Do not operate the Appliance in a room where an infant or child is sleeping.

For INDOOR use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments. Do not use Appliance on wet surfaces or surfaces with standing water.
Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
Do not use the Docking Station if it is damaged.
Do not use with a damaged power cord or plug. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
Turn OFF the power switch before cleaning or maintaining the Appliance. Turn off all controls before unplugging. Always turn off this appliance before connecting or disconnecting motorized nozzle.
The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
Please dispose of used batteries according to local laws and regulations.
Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
When not using the Docking Station for a long period of time, please unplug it.
The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
Prevent unintentional starting. Ensure the switch is in the off position before connecting to battery pack, picking up or carrying the appliance.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 ºC may cause explosion. The temperature of 130 ºC can be replaced by the temperature of 265 ºF.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
Place the cords from other appliances out of the area to be cleaned.
Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
Do not allow children to sit on the vacuum.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Docking Station.

To Reduce The Risk Of Electric Shock — Do not use on wet surfaces. Do not expose to rain. Store indoors.
To Reduce The Risk Of Injury From Moving Parts —Unplug Before Servicing.
Risk Of Injury. Brush May Start Unexpectedly. Unplug Before Cleaning or Servicing.
To reduce the risk of injury, user must read instruction manual.
To Reduce The Risk Of Electric Shock - Do not use outdoors or on wet surfaces.
