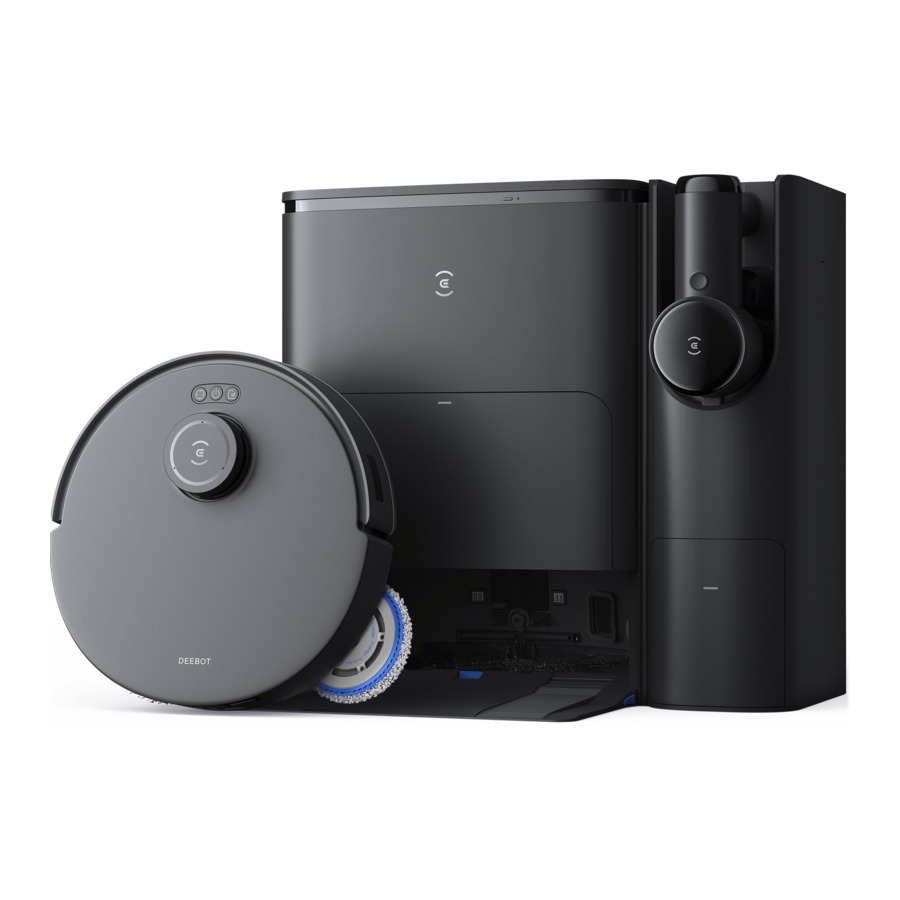

ECOVACS DEEBOT T30S COMBO COMPLETE Manual

Package Contents

Handheld Vacuum Cleaner

Optional Components

Note:

* ZeroTangle Power Brush, Extension Hose and Holder are optional components. To purchase, please visit ECOVACS HOME App or http://www.ecovacs.com/global.
* Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

OMNI Station

Note:
* Flashing Red: Please check the reason in ECOVACS HOME App.
* If DEEBOT fails to charge, please wipe Charging Contacts with a clean and dry cloth.

Station(Back)

Dust Bag

Handheld Vacuum Cleaner

Mini Power Brush

ZeroTangle Power Brush Sensors

Sensors

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Put away objects including cables, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the TrueMapping Distance Sensor.

Handheld Vacuum Cleaner

Before the first use, please charge the appliance for 4-5 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F(40°C).

Note:

• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C).

Quick Start

Before using, please remove all protective materials.

Installation
The sound of Click indicates proper installation.

Turn counterclockwise to install the holder to place the ZeroTangle Power Brush.

Select an accessory and attach it to the appliance before use.

Press the release button to disconnect.

Charge

Assemble the Station

Place the Station

Keep the area around the Station clear of objects especially objects with reflective surfaces.

Note:

• If there are reflective objects such as mirrors and reflective skirting lines near the Station, the bottom 14cm of that should be covered.
• Do not place the Station under direct sunlight.
• It is recommended to place the Station on the hard floor to experience complete functions of the robot.
• Place Station in a location with a strong Wi-Fi signal.

Add Water to Clean Water Tank

Note:
It is recommended to use ECOVACS DEEBOT Cleaning Solution (sold separately). Using other cleaning solution may cause DEEBOT slipping, water tank block and other problems.

Download the ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME App.

1. Scan the QR Code under the Top Cover to download the App.

2. Search the ECOVACS HOME to download the App.


Power on DEEBOT

Press and hold for 3 seconds, wait for the startup music to play, indicating that the DEEBOT has powered on.

Connect DEEBOT with App

1. Via Bluetooth:
   Turn on the DEEBOT and mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap to scan the QR Code on DEEBOT or tap in the App to find nearby DEEBOT.
2. Via Wi-Fi:
   You can also choose to connect DEEBOT with the App through other methods according to the prompts on the App's page.
   Note: Please select the appropriate connecting method.

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
• Please enable the WPA2 on your router.

Wi-Fi Indicator Light

	White light slow flash	Connecting
	White light fast flash	Disconnected to Wi-Fi
	Solid White Light	Connected to Wi-Fi

Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display and control settings, and personalized cleaning (depending on different products) requires users to download and use ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to operate the product. If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.

Charge DEEBOT

Short press to recall DEEBOT to enter the Station to charge.

Note: After DEEBOT enters the Station, wait for about 5 seconds and you will hear the voice prompt "Pairing Successful".

Operate DEEBOT

DEEBOT will create a map during the first-time cleaning. When creating a map for the first time, please follow DEEBOT to help eliminate some minor issues. For example, DEEBOT may get stuck under the furniture. Please refer to the following solutions:

1. Raise the low sitting furniture if possible;
2. Cover the bottom of the furniture;
3. Set up Virtual Boundary via the App.

Short press to start. For the first-time cleaning, please ensure that DEEBOT is fully charged.

Note: When DEEBOT is not working, it is recommended to keep it powered ON and charging.

Note:

1. Do not frequently remove washable mopping pads.
2. Do not scratch the Mopping Pad Plates with a rag or any other object.
3. When the ECOVACS HOME App prompts that the mops need to be replaced, please replace them in time. Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

Station

Short press to start/pause.
Long press to self-clean the Station.
Double click to start Vacuum Cleaner Auto-Empty.

Operate Handheld Vacuum Cleaner

1. Press to activate suction. Press it again to turn off the appliance.
   When the Vacuum Cleaner is in operation, press and hold the for 10 seconds to turn off the appliance.

2. The appliance will start in MAX mode by default. Press the button to switch between MAX and Silent mode.

Note:

• Auto-Emptying Dustbin is supported.
• When in Silent mode, the runtime is approximately 60 minutes. When Max power is used, the runtime is approximately 15 minutes.
• A full charge takes approximately 4-5 hours.
• Place the vacuum onto the Station. The Station will then start charging, meanwhile Auto-Emptying will also be activated.

TECHNICAL SPECIFICATIONS

DEEBOT
Model	DDX14
Rated Input	20V2A
Charging Time	about 4.5h
Station Model	CH2367
Rated Input	220-240V~50-60Hz
Rated Output for DEEBOT	20V 2A
Rated Output for vacuum cleaner	18V1A
Rated Input Current(Charging)	0.5A
Power(Emptying)	1000W
Power(Hot Water Washing Mop)	1650W
HANDHELD VACUUM CLEANER
Model	FM2320
Rated Input	18V 1A
Dustbin Capacity	0.3L
Charging Time	4 ~ 5h
Maximum Working Time for One Charge	≈60min

Output power of the wireless module is less than 100mW.

Note: Technical and design specifications may be changed for continuous product improvement.
Explore more accessories at https://www.ecovacs.com/global.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking station.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7. Do not use without dust bin and/or filters in place.
8. Do not operate the Appliance in an area where there are lit candles or fragile objects.
9. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
10. Do not operate the Appliance in a room where an infant or child is sleeping.
11. Do not use Appliance on wet surfaces or surfaces with standing water.
12. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
13. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
14. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
15. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
16. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
17. The lithium battery type suitable for CH2367 is Max. 8 cells, max. nominal voltage DC 14.4V, rated capacity 5,800mAh. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
18. Turn OFF the power switch before cleaning or maintaining the Appliance.
19. Please dispose of used batteries according to local laws and regulations.
20. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
21. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.
22. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
23. Please make sure your power supply source voltage matches the power voltage marked on the OMNI Station.
24. Use only the original rechargeable battery and OMNI Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.
25. Take care not to damage the power cord. Do not pull on or carry the Appliance or OMNI Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
26. Do not use the OMNI Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
27. Do not use with a damaged power cord or receptacle. Do not use the Appliance or OMNI Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
28. The plug must be removed from the receptacle before cleaning or maintaining the OMNI Station.
29. Remove the Appliance from the OMNI Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
30. When not using the OMNI Station for a long period of time, please unplug it.
31. If the robot will not be used for a long time, power OFF the robot for storage and unplug the OMNI Station.
32.
    Add clean water into the clean tank only.
33.
    For the purposes of recharging the battery, only use the detachable supply unit CH2367 provided with the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update
Typically, some devices are updated bi-monthly, but not always so specific.
Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

	Caution: hot surface
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	This product conforms to the applicable EC Directives.
	Before charging, read the instructions.
	Polarity of the charging port
	Time-lag miniature fuse-link

The remote surveillance is for the absolute private use of non-public, private owned places for the pure self-protection and single control intended only. Please be aware of the local data protection based legal obligations in case of use. No surveillance of public places, especially with clandestine intent and/or on the part of the employer without justified reasons. Such not justified use is in the risk and responsibility of the user only.
