- Page 1 Instruction Manual...
- Page 2 Customer Service Center where a technician will be able to help you with your specific problem or question. www.ecovacs.com For more information, please visit the ECOVACS ROBOTICS official website: The company reserves the right to make technological and/or design changes to this product for continuous improvement.
-
Page 3: Table Of Contents
Contents 1. Important Safety Instructions ............................4 2. Package Contents ................................8 3. Operating and Programming ............................11 4. Maintenance ..................................17 5. Indicator Light ..................................23 6. Troubleshooting ................................24 7. Technical Specifications ..............................28... -
Page 4: Important Safety Instructions
1. Important Safety Instructions Appliance to ensure that it can detect the step without falling over the edge. It may become IMPORTANT SAFETY INSTRUCTIONS necessary to place a physical barrier at the When using an electrical Appliance, basic edge to keep the unit from falling. Make sure precautions should always be followed, including the physical barrier is not a trip hazard. - Page 5 13. Do not operate the Appliance in a room 20. If the power cord is damaged, it must be where an infant or child is sleeping. replaced by the manufacturer or its service 14. Do not use Appliance on wet surfaces or agent in order to avoid a hazard.
- Page 6 To satisfy RF exposure requirements, a with the directions in this Instruction Manual. separation distance of 20 cm or more should be ECOVACS ROBOTICS cannot be held liable maintained between this device and persons or responsible for any damages or injuries during device operation.
- Page 7 For EU Countries Class II For EU Declaration of Conformity information, visit Short-circuit-proof safety isolating https://www.ecovacs.com/global/compliance transformer Switch mode power supply For indoor use only Correct Disposal of this Product Direct current This marking indicates that this product should not be disposed of with other household Alternating current waste throughout the EU.
-
Page 8: Package Contents

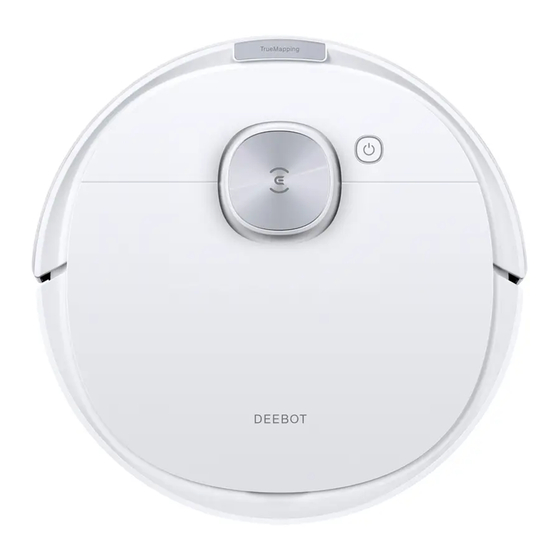

2. Package Contents/2.1 Package Contents Robot Docking Station Instruction Manual Side Brushes Mopping Pad Plate Washable Mopping Pad Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice. - Page 9 2. Package Contents/2.2 Product Diagram Robot RESET Button Top Cover AUTO Mode Button Wi-Fi Status Indicator Power Switch Multi-function Cleaning Tool TrueMapping Dust Bin Handle Distance Sensor Release Button Filter Net Antibacterial Filter Anti-collision Bumper...
- Page 10 Bottom View Docking Station Charging Contacts Carpet Detection Universal Wheel Sensor Side Brushes Docking Station Pins Main Brush Driving Wheels Power Cord Reservoir Anti-drop Sensors Water Inlet Cover Water Inlet Reservoir Release Button Main Brush Mopping Pad Plate Release Button Water Outlet Mopping Pad Anti-drop Sensors...
-
Page 11: Operating And Programming
3. Operating and Programming/3.1 Notes Before Cleaning Tidy up the area to be cleaned by putting During the first use, make sure each room door It may be necessary to place a physical furniture, such as chairs, in their proper place. is open to help DEEBOT fully explore your house. - Page 12 3. Operating and Programming/3.2 Quick Start Remove Protective Strips and Films Assemble Docking Station Install Side Brushes Click...
- Page 13 ( 4 . 9 2 ' Power ON * You can also purchase an Auto-Empty Station that automatically empties your DEEBOT's dustbin. Explore more accessories at www.ecovacs.com/global. Note: I = ON, = OFF. DEEBOT cannot be charged when being powered OFF.
- Page 14 3. Operating and Programming/3.4 ECOVACS HOME App To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app. Before you start, make sure that: Wi-Fi Indicator Light • Your mobile phone is connected to a Wi-Fi network.
- Page 15 3. Operating and Programming/3.5 Operating DEEBOT During the first cleaning, please supervise DEEBOT and assist it should there be a problem. Start Pause Return to Charge Pressing for 3 seconds to send DEEBOT back to the Docking Station. Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes.
- Page 16 3. Operating and Programming/3.6 OZMO Mopping System Note: To prolong the service life of the reservoir, it is recommended Note: When DEEBOT is mopping, DEEBOT automatically detects to use purified water or softened water for OZMO mopping the carpet and keeps away from it. If you need to clean the carpet, system.
-
Page 17: Maintenance
Charging Contacts Docking Station Pins A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts. - Page 18 Maintenance/4.2 OZMO Mopping System Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station. Washable Mopping Pad Clean the water inlet filter on the bottom of the Reservoir if it is clogged.
- Page 19 Maintenance/4.3 Dust Bin and Filters...
- Page 20 Maintenance/4.4 Main Brush and Side Brushes Main Brush Side Brushes...
- Page 21 Maintenance/4.5 Other Components Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
- Page 22 Maintenance/4.6 Storage If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage. Charge DEEBOT every 1.5 month to prevent battery drain. Note: When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging.
-
Page 23: Indicator Light
5. Indicator Light DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website. Indicator Light Scenario The robot is cleaning. AUTO Mode Button glows a solid WHITE. -
Page 24: Troubleshooting
DEEBOT gets stuck while etc.). restart. working and stops. DEEBOT might be stuck under furniture with Please set a physical barrier, or set a Virtual Boundary in an entrance of similar height. the ECOVACS HOME App. - Page 25 Possible Causes Solutions Working time varies according to floor surface, room complexity and the Cleaning Turn on Continuous Cleaning function in ECOVACS Mode selected. When the battery gets low, HOME App. DEEBOT will automatically resume the DEEBOT automatically switches to Recharge...
- Page 26 Enter the correct home Wi-Fi username and password. entered. Incorrect App installed. Please download and install ECOVACS HOME App. DEEBOT is not within range of your home Wi-Fi Make sure DEEBOT is within range of your home Wi-Fi signal. DEEBOT is not able to connect to signal.
- Page 27 Troubleshooting/6.2 Wi-Fi Connection Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network meet the following requirements. DEEBOT and Mobile Phone Requirements • DEEBOT is fully charged and the power switch of DEEBOT is turned on. • Wi-Fi status light slowly flashes. •...
-
Page 28: Technical Specifications
7. Technical Specifications Model DBX41 Rated Input Docking Station Model CH1822 CH1918 (Sold Separately) Input 100-240V 50-60Hz 0.5A Rated Input (Charging) 220-240V 50-60Hz 0.3A Output Rated Output Power (Auto-Emptying) 1000W Frequency bands 2400-2483.5MHz Off Mode Power Less than 0.50W Networked Standby Power Less than 2.00W Output power of the Wi-Fi module is less than 100mW. - Page 29 Ecovacs Robotics Co., Ltd No.518 Songwei Road, Wusongjiang industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China. 451-2241-5101...
