ECOVACS DEEBOT OZMO 950 - Up to 200 Minutes of Vacuuming & Mopping Manual

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

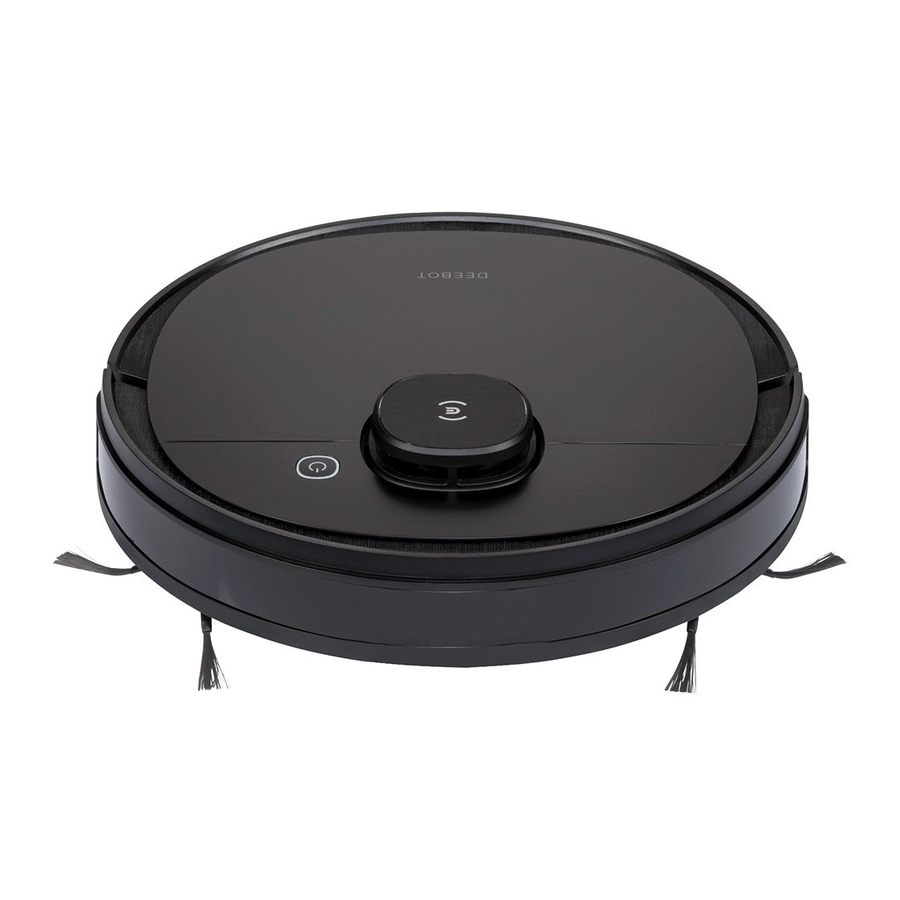

Main Unit

Product Diagram - Main Unit

Bottom View

Product Diagram - Bottom View

Reservoir

Product Diagram - Reservoir

Docking Station

Product Diagram - Docking Station

Operating and Programming

Notes Before Cleaning


Do not use DEEBOT on wet surfaces or surfaces with standing water.


Before using the product on a rug with tasseled edges, please fold the rug edges under.

Notes Before Cleaning - Placing a physical barrier
It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Notes Before Cleaning - Tidying up the furniture
Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.


Remove power cords and small objects from the floor that the robot could be obstructed by.

Preparation

  1. Remove Protection Strip
  2. Assemble Docking Station
  3. Docking Station Placement
    Please place the Docking Station on a hard floor surface.
  4. Install Side Brushes
  5. Power ON
  6. Charge DEEBOT
    Note: When DEEBOT completes the cleaning cycle or when the battery gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by using the ECOVACS App or by pressing the AUTO Button on the robot for 3 seconds.
    Empty remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging DEEBOT.
  7. Pause
    Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
  8. Start
  9. Power OFF
    Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.

All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including MAX Mode, Scheduled Cleaning, etc.

www.apple.com

play.google.com

OZMO Mopping System

Operating the OZMO Mopping System - Step 1
Operating the OZMO Mopping System - Step 2

Note: To add water into the Reservoir when DEEBOT is cleaning, pause the robot, press the Reservoir Release Button, draw out the reservoir, and add water.

Choosing a Suction Option

Main Brush Option

The best choice for deep cleaning, with a combination of the Main Brush and strong suction.
Choosing a Suction Option - Main Brush Option

Direct Suction Option

The best choice for daily cleaning. This Suction Option is specifically designed to pick up hair without getting clogged by it, and is ideal for pet owners.
Choosing a Suction Option - Direct Suction Option

Install the Direct Suction Option

Installing the Direct Suction Option

Install the Main Brush Option

Installing the Main Brush Option

Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

OZMO Mopping System

Maintenance - OZMO Mopping System

Dust Bin and Filters

Dust Bin
Maintenance - Dust Bin and Filters

Note:

  1. Please rinse the filter with water as shown above.
  2. Do not use finger or brush to clean the filter.
  3. Be sure to dry out the filter for at least 24 hours after washing.

Main Brush

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Maintenance - Main Brush

Direct Suction Option

Maintenance - Direct Suction Option

Side Brushes

Other Components

Maintenance - Other Components

Note: Before cleaning the robot's Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance Frequency Replacement Frequency
Cleaning Cloth After each use Every 50 washings
Reservoir/Cleaning Cloth Plate After each use /
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efficiency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors Bumper
Charging Contacts
Docking Station Pins
Once per week /

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

Indicator Light

DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website.

Indicator Light Scenario
AUTO Mode Button glows a solid WHITE The robot is cleaning
The robot is paused while cleaning
AUTO Mode Button flashes WHITE The robot is charging
The robot is starting
The robot is relocating
AUTO Mode Button glows a solid RED The robot has low battery
AUTO Mode Button flashes RED The robot has a problem

Troubleshooting

No. Malfunction Possible Causes Solutions
1

DEEBOT is not charging.

DEEBOT is not switched ON. Switch ON DEEBOT.
DEEBOT has not connected to the Docking Station. Be sure that the robot's Charging Contacts have connected to the Docking Station Pins.
The Power Cord is not connected to the Docking Station. Make sure the Power Cord is firmly connected to the Docking Station.
The battery is completely discharged. Re-activate the battery. Switch ON. Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.
Make sure the Docking Station is connected to the power supply. The Docking Station is not connected to the power supply.
2 DEEBOT cannot return to the Docking Station. The Docking Station is not correctly placed. Refer to Preparation section to correctly place the Docking Station.
3 DEEBOT gets stuck while working and stops. DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.). DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
4 DEEBOT returns to the Docking Station before it has
finished cleaning.
When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself. This is normal. No solution necessary.
Working time varies according to floor surface, room complexity and the Cleaning Mode selected. This is normal. No solution necessary.
5 DEEBOT does not clean automatically at the scheduled
time.
Time Scheduling function is cancelled. Program DEEBOT to clean at specific times using the ECOVACS App.
The Continued Cleaning function is turned ON and DEEBOT has just finished cleaning the scheduled cleaning area. This is normal. No solution necessary.
DEEBOT is switched OFF. Switch ON DEEBOT.
The robot's battery is low. Keep DEEBOT switched ON and connected to the Docking Station to make sure it has a full battery to work at any time.
The robot's Suction Intake is blocked and/or there is debris stuck in its components. Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot's Suction Intake, Side Brushes and the Main Brush as described in Maintenance section.
6 DEEBOT does not clean the whole area. The cleaning area is not tidy. Remove small objects from the floor and tidy up the cleaning area before DEEBOT starts cleaning.
7 The water is not coming out of the Reservoir when DEEBOT is
mopping.
The water inlet filter on the bottom of Reservoir is clogged. Unscrew the water inlet on the bottom of Reservoir and clean the filter.
The Reservoir runs out of water. Add water into the Reservoir.
The water outlets on the bottom of DEEBOT are clogged. Check the water outlets on the bottom and clean.
8 DEEBOT is not able to connect to the home Wi-Fi network. Incorrect home Wi-Fi username or password entered. Enter the correct home Wi-Fi username and password.
DEEBOT is not within range of your home Wi-Fi signal. Make sure DEEBOT is within range of your home Wi-Fi signal.
Network setup started before DEEBOT was ready. Turn ON Power Switch. Press the RESET Button for 3 seconds. DEEBOT is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light flashes slowly.
Your smartphone's operating system needs to be updated. Update your smartphone's operating system. The ECOVACS App runs on iOS 9.0 and above, Android 4.0 and above.

Technical Specifications

Model DX9G
Rated Input 20 V DC, 1 A
Docking Station Model CH1822
Rated Input 100-240 V AC, 50-60 Hz, 0.5 A Rated Output 20 V DC, 1 A
Laser max. power: 2.5mW
Frequency: 1.8KHz
Rotate Speed: 300±5 circle/min

Output power of the WIFI module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.
