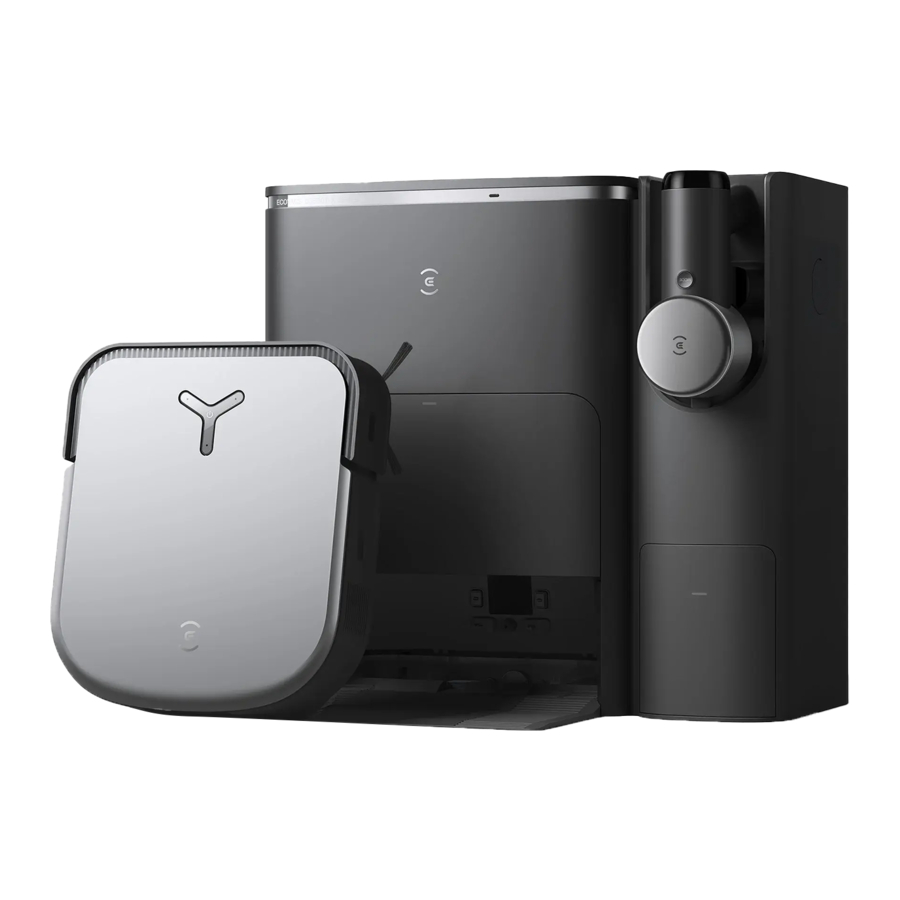

ECOVACS DEEBOT X2 COMBO - Vacuum Cleaning Robot Manual

PACKAGE CONTENTS

DEEBOT

Handheld Vacuum Cleaner

ZeroTangle Power Brush

Note: Figures and illustrations are for reference only and may differ from actual product appearance Product design and specifications are subject to changes without notice

PRODUCT DIAGRAM

Robot

Dust Bin

• Press the Reset Button, the YIKO Assistant will guide you to connect DEEBOT to your phone.
• Restore to factory settings: Long press the Reset Button for 5s.

Bottom View

Station

Front

Note:

• If the Light Strip is flashing red, please check the reason in ECOVACS HOME App.
• If DEEBOT fails to charge, please wipe Charging Contacts with a clean and dry cloth.

Back

Dust Bag

Handheld Vacuum Cleaner

Mini Power Brush

Flat Brush

Crevice Tool

ZeroTangle Power Brush

Extension Hose

Holder

SENSORS

NOTES BEFORE CLEANING

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Make sure areas to be cleaned are well illuminated so AIVI Camera works properly. Remove power cords and small objects from the floor to ensure cleaning efficiency.

Put away objects including cables, cloths and slippers, etc on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the AIVI Camera.

Clean the AIVI Camera and TrueMapping Distance Sensor with a clean cloth, and avoid using any detergent or cleaning spray.

VACUUM CLEANER

Before the first use, please charge the appliance for 4-5 hours in an area where the ambient temperature is between 392°F (4°C) and 104°F (40°C).

Note:

• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 392°F (4°C)~104°F (40°C).

QUICK START

Before using, please remove all protective materials

Installation

The sound of Click indicates proper installation

Turn counterclockwise to install the holder to place the ZeroTangle Power Brush.

Select an accessory and attach it to the appliance before use.

Press the release button to disconnect.

DOWNLOAD THE ECOVACS HOME APP

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME App.

1. Scan the QR Code under the Top Cover to download the App.

2. Search the ECOVACS HOME to download the App.


CONNECT DEEBOT WITH APP

1. Via Bluetooth:
   Turn on the DEEBOT and mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap to scan the QR Code on DEEBOT or tap in the App to find nearby DEEBOT.
2. Via Wi-Fi:
   You can connect DEEBOT with App via Wi-Fi by ignoring Bluetooth in the App.

Note: DEEBOT does not support 5GHz network. Please connect via Bluetooth for a better experience.

Wi-Fi Network Requirements:

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
• Please enable the WPA2 on your router.

Wi-Fi Indicator Light

	Flashing Blue Light	Disconnected to Wi-Fi
	Solid Blue Light	Connected to Wi-Fi

Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display and control settings, and personalized cleaning (depending on different products) requires users to download and use ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to operate the product. If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.

CHARGE

1. Assemble the Station

2. Place the Station
   Keep the area around the Station clear of objects especially objects with reflective surfaces.

   Note:
   • If there are reflective objects such as mirrors and reflective skirting lines near the Station, the bottom 14cm of that should be covered.
   • Do not place the Station under direct sunlight.
   • It is recommended to place the Station on the hard floor to experience complete functions of the robot.
   • Place Station in a location with a strong Wi-Fi signal.
3. Add water to Clean Water Tank

   Note: It is recommended to use ECOVACS DEEBOT Cleaning Solution (sold separately). Using other cleaning solution may cause DEEBOT slipping, water tank block and other problems.
4. Power ON

   Note: "I" = ON, "O" = OFF.
   • DEEBOT cannot be charged when being powered OFF.
   • When DEEBOT is not working, it is recommended to keep it switched ON and charging.
5. Charge DEEBOT
   Make sure the Station is connected to the power supply. Use the ECOVACS HOME App or voice to recall DEEBOT to enter the Station to charge it up.

   • It is recommended that DEEBOT start cleaning from the Station. Do not move the Station while cleaning.
6. Operate DEEBOT
   1. Create a map
      Order the DEEBOT to map by ECOVACS HOME App or voice.
      When creating a map for the first time, please follow DEEBOT to help eliminate some minor issues.
      When mapping, DEEBOT will explore the house environment automatically. The exploration path may be different from cleaning path. Set up Virtual Boundary via the App: Map> >Virtual Boundary
   2. Start vacuum
      When mopping, DEEBOT will recognize floor types. DEEBOT is able to lift mops automatically when encountering carpet. Please don't use the DEEBOT on shaggy rugs or carpets with fibres longer than 10mm. It is recommended to fold up the shaggy rugs with fibres longer than 10mm during the cleaning process, or set the shaggy carpeted area as a No- Entry Zone by setting Virtual Boundary in the ECOVACS HOME App.
      Before first vacuuming, please make sure the DEEBOT is in the Station and fully charged. Tap on DEEBOT to start.

      Note:
      • Do not frequently remove washable mopping pads.
      • Do not use a rag or any other object to scratch the Moping Pad Plates.
      • When the ECOVACS HOME App prompts that the mops need to be replaced, please replace them in time. Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.
   3. Pause
      Tap on DEEBOT to pause during vacuuming.
   4. Wake up
      The indicator light will go out after the DEEBOT is paused for a few minutes. Press on DEEBOT to wake it up. After stopping working for about 1h, DEEBOT may enter standby mode.
   5. Back to Station
      Use the ECOVACS HOME App or voice to recall DEEBOT to enter the Station to charge it up. Long press for 3s on the DEEBOT can also recall it.

   6. Deep Sleep Mode
      DEEBOT will enter deep sleep mode to protect the battery if the DEEBOT stays outside the Station for about 5h. Please switch OFF and ON to wake up the DEEBOT.

7. Station
   When DEEBOT is in the Station, short press to start/pause. Long press to self-clean the Station. Double click to start Vacuum Cleaner Auto-Empty.

8. Operate Handheld Vacuum Cleaner
   1. Press to activate suction. Press it again to turn off the appliance. When the Vacuum Cleaner is in operation, press and hold the for 10 seconds to turn off the appliance.

   2. The appliance will start in MAX mode by default. Press the button to switch between MAX and Silent mode.

      Note:
      • Auto-Emptying Dustbin is supported.
      • When in Silent mode, the runtime is approximately 60 minutes. When Max power is used, the runtime is approximately 15 minutes.
      • A full charge takes approximately 4-5 hours.
      • Place the vacuum onto the Station. The Station will then start charging, meanwhile Auto-Emptying will also be activated.

REGULAR MAINTENANCE

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts at the following frequencies:

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Station.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

MAINTAIN DUST BIN AND FILTER

3.
   Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.
4.
   Note:
   • Please rinse the filter with water as shown above.
   • Do not use finger or brush to clean the Filter.
5.
   Note: Completely dry the filter before use.
   Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

MAINTAIN FLOATING RUBBER BRUSH AND SIDE BRUSH

1. Floating Rubber Brush

2. Side Brush

   Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN OTHER COMPONENTS

Note: Wipe the components with a clean, dry cloth Avoid using cleaning sprays or detergents

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN STATION

Note:

• Please don't enable self-clean when DEEBOT is working.
• If there is remaining dirty water in the Cleaning Sink, the Station will drain the water first after a long press. Please long press to start self-clean.

1. Long press to direct DEEBOT to exit from Station

2. Clean Cleaning Sink

3. The Station will drain the water out of Cleaning Sink automatically

4. Empty Dirty Water Tank


Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN CLEANING SINK

1. Take the Detachable Tray and Base Filter to Wash

2. Install


Note: Please install Cleaning Sink properly to prevent malfunction.

MAINTAIN DUST BAG

1. Discard the Dust Bag

   Hold the Handle to lift out the Dust Bag, which can effectively prevent dust leakage.
2. Clean the Dust Collection Cabin with a Dry Cloth and Put a New Dust Bag in

3. Close the Dust Collection Cabin


Note: Please unfold the new Dust Bag.

STORAGE

Please fully charge and switch OFF the DEEBOT before storage. Please recharge it every 1.5 months to prevent the battery from over-discharge.

Note:

• DEEBOT can't be charged when the power is turned off.
• If the battery is over-discharged or not used for a long time, the DEEBOT may not be charged. Please contact ECOVACS for help. Do not disassemble by yourself.

DUSTBIN AND MESH FILTER

1. Press the release button on the side of the Dustbin to open the flap. Remove the Mesh Filter. Do not turn the appliance upside down when removing or installing the Mesh Filter to prevent dust from entering the motor.

2. Wipe Dustbin with clean and soft cloth. The Mesh Filter can be washed under cold running water.

3. The Mesh Filter must be completely dry before reinstalling. Cover the flap. The sound of Click indicates proper installation.


Note: Please don't wash Dustbin with water.

HEPA FILTER

1. Pull out the HEPA Filter for cleaning. Do not use the appliance without first installing the HEPA Filter.

2. The HEPA Filter can be washed under running water and must be completely dry before reinstalling.


MINI POWER BRUSH

1. Clean the surface with a soft and clean cloth.

2. Press against the Roller End Cover downward. Pull out the Brush Roller.

3. Remove the debris wrapped around the Roller with a tool.

4. Fully reinsert the Brush Roller at an angle and push upward until it clicks securely back into place.


ZEROTANGLE POWER BRUSH

1. With the power off, slide the switch to open the Brush Roller End Cover, and rotate it counter-clockwise to pull out the Brush Roller.

2. After removing the Brush Roller, gently clean the brush window, suction mouth and the row of plastic teeth.

3. Remove the debris wrapped around the roller.

4. Fully reinsert the Brush Roller into the brush window and the End Cover can be rotated counter-clockwise until it clicks securely back into place.


TROUBLESHOOTING

No.	Malfunction	Possible Causes	Solutions
1	DEEBOT is not able to connect to ECOVACS HOME App.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal. Try to stay as close to the Wi-Fi signal as possible.
		DEEBOT is not in the configuration state.	Press the Reset Button to connect DEEBOT to your phone by Bluetooth. If failed, please press the Reset Button and to connect via ECOVACS HOME App.
		Incorrect App installed.	Please download and install ECOVACS HOME App.
		There is no home Wi-Fi on the Wi-Fi list.	Check if the Wi-Fi name contains special characters. Please do not use special characters like! @#&￥%/\. Do not use a 5Ghz network.
2	The map is lost.	The map might be lost if you move DEEBOT when cleaning.	Move DEEBOT to the front of the Station to retrieve the map. Find the restored map in the Map Management and tap "Use This Map" to retrieve it. You can lock the map in the ECOVACS HOME App. If this problem persists after trying the above solutions, please restart mapping.
3	Unable to create furniture map on App.	Move DEEBOT when cleaning might cause the map to be lost.	During cleaning, do not move DEEBOT.
		Auto cleaning is not finished.	Make sure DEEBOT automatically return to the Station after cleaning.
4	DEEBOT Side Brush drops out of place during use.	The Side Brush is not properly installed.	Make sure the Side Brush clicks into place.
5	No signal found. Unable to return to the Station.	The Station is incorrectly placed.	Please place the Station correctly according to the instructions in the [Charging DEEBOT] section.
		The Station is out of power or manually moved.	Check whether the Station is connected to power supply. Do not manually move the Station.
		DEEBOT does not start cleaning from the Station.	It is recommended that DEEBOT start cleaning from the Station.
		The charging route is blocked. For example, the door of the room with the Station is closed.	Keep the charging route clear.
6	DEEBOT returns to the Station before it has finished cleaning.	The room is so large that DEEBOT needs to return to recharge.	Please enable Continuous Cleaning. For more details, please follow the App instruction.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
7	DEEBOT is unable to charge.	DEEBOT is not switched ON.	Switch ON DEEBOT.
		DEEBOT's Charging Contacts are not connected to the Station Pins.	Make sure that the robot's Charging Contacts have connected to the Station Pins and flashes. Check whether DEEBOT's Charging Contacts and the Station Pins are dirty. Please clean these parts according to the instructions in the [Maintenance] section.
		The Station is not connected to the power supply.	Make sure the Station is connected to the power.
8	Running is very loud during cleaning.	Side brush and floating rubber brush are entangled. Dust bin and filter are blocked.	It is recommended to clean the side brush, floating rubber brush, dust bin, filter, etc. regularly.
		DEEBOT is in Max Mode.	Switch to Standard Mode.
9	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
		DEEBOT might be stuck under furniture with an entrance of similar height.	Please set a physical barrier, or set a Virtual Boundary via the ECOVACS HOME App.
		DEEBOT is stuck in a narrow area.	Tidy up the house. Or set a physical barrier. Or set a Virtual Boundary via the ECOVACS HOME App.
10	The following problems appear when DEEBOT is working: disordered cleaning route, deviation from the cleaning route, repeated cleaning, or missing of small areas to be cleaned. (If there is a large area that has not been cleaned temporarily, DEEBOT will automatically clean the missing area. Sometimes DEEBOT will re-enter a cleaned room, which may not be a repeated cleaning, but DEEBOT finding any missing area.)	Objects such as wires and slippers placed on the ground block the DEEBOT.	Please tidy up the scattered objects on the ground such as wires, slippers before cleaning. If there is any area missing, DEEBOT will clean the missing area by itself, please do not interfere (such as moving DEEBOT or blocking the route).
		It may be that the Driving Wheels slip on the ground when DEEBOT climbs steps, thresholds and door bars, thus affecting its judgment of the whole house environment.	It is recommended to close the door of this area and clean the area separately. After cleaning, DEEBOT will return to the starting location. Please rest assured to use.
		Work on freshly waxed and polished floors or smooth tiles, resulting in less friction between the Driving Wheels and the floor.	Please wait for wax to dry before cleaning.
		Due to different home environments, some areas cannot be cleaned.	Tidy up the home environment to ensure that DEEBOT can enter for cleaning.
		The TrueMapping Distance Sensor is dirty or blocked by foreign matters.	Wipe the TrueMapping Distance Sensor with a clean soft cloth or remove foreign matters.
11	Video Manager cannot open or has no screen.	Wi-Fi connection failed.	Check the Wi-Fi connection status. DEEBOT must be in an area with good Wi-Fi signal to enable the Video Manager.
		Video Manager is not authorized.	Please check your consent in the Privacy Policy before using the robot.
		Due to the network latency, you may not be able to open Video Manager temporarily.	Try again later.
		The AIVI Camera is blocked.	Remove the shield.
12	Delay in remote control.	The Wi-Fi signal is poor, causing the video loading to be slow.	Use DEEBOT in areas with good Wi-Fi signal.
13	AIVI Camera cannot recognize objects.	The cleaning area is not well illuminated.	Smart Recognition requires sufficient lighting. Please make sure the areas to be cleaned are well illuminated.
		AIVI Camera lens is dirty or blocked.	Clean the lens with a clean soft cloth, and make sure the sensor is not blocked. Avoid using any detergent or cleaning spray while cleaning.
14	After returning to the Station, DEEBOT does not empty the Dust Bin.	The Auto-Empty function has not been turned on in the ECOVACS HOME App.	Turn on the Auto-Empty function in the ECOVACS HOME App.
		Dust Bag is not installed in the Station.	Install the Dust Bag, and close the Dust Collection Cabin.
		Manually moving DEEBOT back to the Station might not trigger Auto-Empty function.	It is recommended to let DEEBOT return to the Station on its own. Please do not manually move it.
		DEEBOT automatically returns to the Station in Video Manager mode.	DEEBOT doesn't do cleaning task and empty the Dust Bin in Video Manager mode. This is a normal phenomenon, please rest assured to use.
		In Do Not Disturb mode, DEEBOT will not empty the dust after returning back to the Station.	Turn off Do Not Disturb mode in ECOVACS HOME App or manually start dust-emptying.
		The Station detects a decrease in empty efficiency.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when ECOVACS HOME App prompts, you can put it back again.
		If the above possible causes have been ruled out, components of the Station may be abnormal.	Please contact Customer Care for help.
15	Fail to empty the Dust Bin.	The Station detects a decrease in empty efficiency.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when ECOVACS HOME App prompts, you can put it back again.
		The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
16	The inner side of Dust Collection Cabin is dirty.	Fine particles are absorbed in the inner side of Dust Collection Cabin through the Dust Bag.	Clean the inner side of Dust Collection Cabin.
		The Dust Bag is broken.	Check the Dust Bag. Replace it.
17	Dust leakage occurs during working.	The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
18	Mopping Pad Plate cannot rotate.	The Mopping Pad Plate is blocked by foreign objects.	Clean the foreign objects.
		Mopping Pad Plate is not correctly installed.	Please install Mopping Pad Plate correctly. A sound of Click means properly installation.
19	DEEBOT does not respond to the Station instruction.	DEEBOT is not in the Station.	Please make sure DEEBOT is in the Station.
20	Driving wheels are blocked.	Driving wheels are blocked by foreign objects.	Please rotate and press the driving wheels to check whether there is any foreign object wrapped or stuck. If there is any foreign object, please clean it in time. If this problem persists, please contact Customer Care for help.
21	When the water in the Cleaning Sink is full and cannot be drained out, the voice reports that the Cleaning Sink is full.	The Dirty Water Tank is not properly installed.	Tap down on the Dirty Water Tank to ensure it is properly installed.
		The sealing plugs in the Dirty Water Tank is not installed properly.	Make sure to check that the sealing plugs are properly installed.
		The Station cannot drain water normally.	Long press to see whether the Station can properly draw the water. If the water is successfully drawn, wipe dry the Water Overflow Sensor of the Cleaning Sink. If the Station fails to draw the water, check between the Dirty Water Tank and the Station for foreign object and clean it.
		The suction port of the Cleaning Sink is blocked by foreign object.	Ensure that there is no foreign object in the suction port of the Cleaning Sink.
		The voice prompt still exists after trying the above solutions.	Unplug the Station and plug it again. If this problem persists, please contact Customer Care for help.
		The Cleaning Sink and Base Filter are dirty.	Wash the Cleaning Sink and Base Filter with clean water.
22	The vacuum cleaner does not turn on.	No power.	Charge the battery.
		Auto protection for overheating.	Restart after cooling down.
		The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Check and remove blockages.
23	Weak suction power of vacuum cleaner.	Dustbin and filters are full.	Clean the Dustbin and filters.
		The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Remove blockages.
		The brush roller tangled with hairs or fibers.	Clean the brush roller.
24	Battery of vacuum cleaner won't charge.	The adaptor is not correctly inserted.	Reinsert the adaptor correctly.
		Vacuum is not properly placed on the dock.	Pull the vacuum up and place it back on the dock again.
25	Abnormal motor sounds of vacuum cleaner.	The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Remove blockages.
26	Malfunction Indicator Light on vacuum cleaner is on.	Something is wrong.	Please contact customer service.

TECHNICAL SPECIFICATIONS

DEEBOT
Model	DEX86
Rated Input	20V 2A
Charging Time	About 55h
Station Model	CH2308
Rated Input	220-240V ~ 50-60Hz
Rated Output for DEEBOT	20V 2A
Rated Output for vacuum cleaner	18V 1A
Rated Input Current (Charging)	0.5A
Power (Emptying)	1000W
Power (Hot Water Washing Mop)	1650W
HANDHELD VACUUM CLEANER
Model	FM2320
Rated Input	18V 1A
Nominal Capacity	4000mAh
Rated Capacity	3600mAh
Dustbin Capacity	0.3L
Charging Time	4 ~ 5h
Maximum Working Time for One Charge	≈ 60min

Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.
Explore more accessories at https://www.ecovacs.com/global

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking station.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7. Use only the original rechargeable battery and Docking station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments (below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Docking station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking station.
24. Remove the Appliance from the Docking station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Docking station for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
31. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking station.
32. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C).
33.
    For the purposes of recharging the battery, only use the detachable supply unit CH2308 provided with the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update
Typically, some devices are updated bi-monthly, but not always so specific.
Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	Caution: hot surface
	This product conforms to the applicable EC Directives
	Before charging, read the instructions
	Polarity of the charging port
	Time-lag miniature fuse-link
