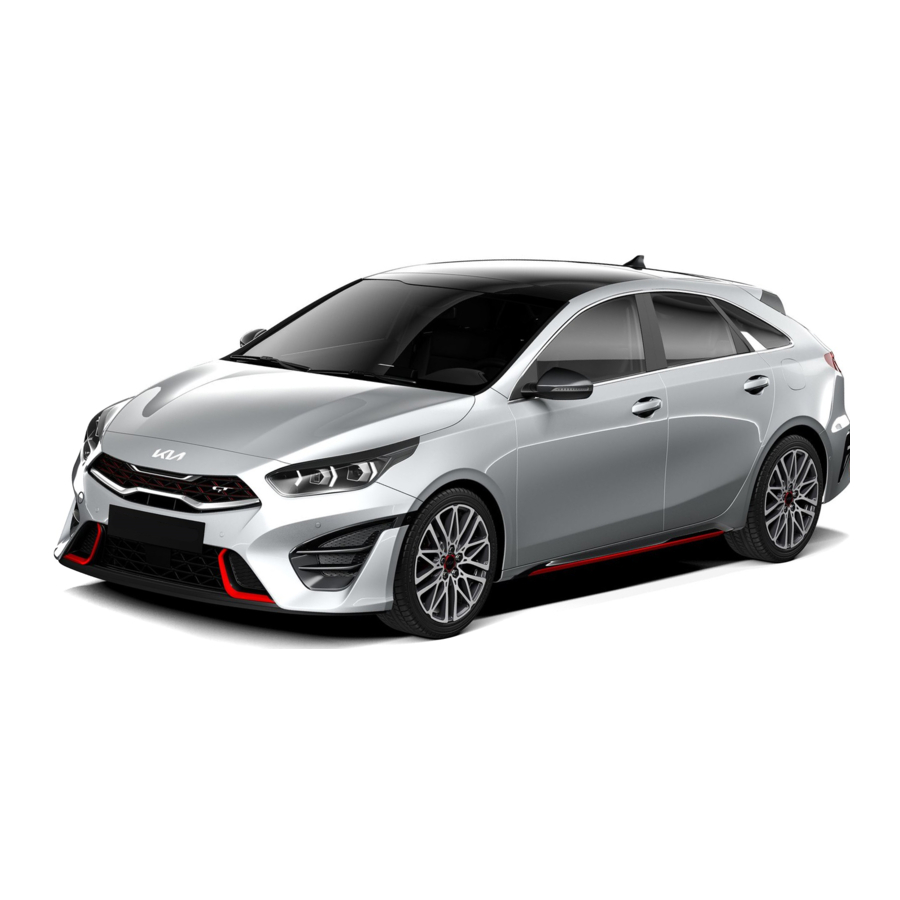

Kia Proceed 2022 Manual

Interior Overview

1. Inside door handle [4]
2. Outside rear view mirror control [4]
3. Outside rear view mirror folding [4]
4. Power window switch [4]
5. Power window lock button [4]
6. Driver position memory system button [3]
7. Steering wheel [4]
8. Tilt and telescopic steering control lever [4]
9. Headlight leveling device [4]
10. Instrument panel illumination control [4]
11. Lane safety button [6]
12. Blind-spot safety button [6]
13. ESC On/Off button [6]
14. Bonnet release lever [4]
15. Inner fuse panel [8]
16. Seat [3]
17. Power tailgate open/close button [4]
18. TPMS (Tyre Pressure Monitoring System) SET button [7]

Instrument Panel Overview

1. Instrument cluster [4]
2. Horn [4]
3. Driver's front air bag [3]
4. Light control/Turn signals [4]
5. Wiper/Washer [4]
6. Ignition switch or ENGINE START/STOP button [6]
7. Driving assist button [6]
8. Infotainment system screen (Refer to "Car Infotainment System Quick Reference Guide".)
9. Central door lock button [4]
10. Hazard warning flasher [7]
11. Climate control system [4]
12. Air ventilation seat [4]
13. Seat warmer [4]
14. Heated steering wheel button [4]
15. Shift lever [6]
16. Drive mode button [6]
17. ISG system Off button [6]
18. Parking safety button [4]
19. Parking/View button [4]
20. Electronic parking brake (EPB) switch [6]
21. AUTO HOLD control button [6]

22. Centre console storage box [4]
23. Glove box [4]
24. Passenger's front air bag [3]
25. USB charger [4]
26. Wireless smart phone charging system [4]
27. Power outlet [4]
28. USB port [5]
29. Steering wheel audio controls (Refer to "Car Infotainment System Quick Reference Guide".)

Instrument Cluster / Engine Compartment

Instrument cluster [4]

1. Tachometer
2. Speedometer

3. Engine coolant temperature gauge
4. Fuel gauge

5. Warning and indicator lights
6. LCD display

Smartstream G 1.5 T-GDi

1. Engine coolant reservoir [8]
2. Engine oil filler cap [8]
3. Brake/clutch fluid reservoir [8]

4. Air cleaner [8]
5. Fuse box [8]
6. Negative battery terminal [8]

7. Positive battery terminal [8]
8. Engine oil dipstick [8]
9. Radiator cap [8]
10. Windscreen washer fluid reservoir [8]

Climate Control System / Windows

Fuel Filler Door / Selective Catalytic Reduction / Wipers and Washers

Urea solution level gauge* [8]

1. Press the ENGINE START/STOP button to the OFF position.
2. Turn the urea solution tank cap in a counterclockwise direction to open it.
3. Add the specified urea solution. Fill in a sufficient amount of urea solution.
   * Only vehicles with diesel engines are equipped with Urea solution. Pay great caution not to add the urea solution into the fuel tank.

Low urea solution warning message* [8]
When "Refill Urea tank or vehicle will not start" message is displayed with SCR warning lamp (), the vehicle can't be restarted once the engine is turned off by the ENGINE START/ STOP button. For the above cases, full replenishment is always recommended.

Wipers and Washers [4]

1. Wiper speed control (front)
   2 High wiper speed
   1 Low wiper speed
   --- Intermittent wipe
   AUTO* Auto control wipe
   O Off
   Single wipe
2. Intermittent control wipe time adjustment
3. Wash with brief wipes (front)*
4. Rear wiper/washer control*
   2 Continuous wipe
   1 Intermittent wipe
   O Off
5. Wash with brief wipes (rear)*

Seat / Air Bag / Child Restraint System

Seats [3]

Driver's seat

1. Driver position memory system*
2. Forward and backward
3. Seatback angle
4. Seat cushion height
5. Lumbar support*
6. Headrest

Front passenger's seat

7. Forward and backward
8. Seatback angle
9. Seat cushion height
10. Lumbar support*
11. Headrest

Rear seat

12. Armrest*
13. Headrest

Passenger's front air bag ON/ OFF switch [3]

Rearward-facing child restraint system [3]

Installing a child restraint system by lap/shoulder belt [3]

Securing with "ISOFIX" system and "Top-tether Anchorage" system [3]

1. ISOFIX (i-Size) Anchor Position Indicator ()
2. ISOFIX (i-Size) Anchor

Securing with "Top-tether Anchorage" system [3]

Lighting Control / Steering Wheel / Cruise Control System

Lighting control [4]

1. OFF
2. Auto light
3. Position light
4. Headlight

Tilt & telescopic steering [4]
Steering wheel adjustment:

1. Pull down the lock release lever
2. Adjust the steering wheel to the desired angle
3. Height adjustment

Lock the steering wheel by pulling up the lock release lever.

Heated steering wheel* [4]

When the ignition switch or ENGINE START/STOP button is in the ON position, pressing the heated steering wheel button warms the steering wheel. The indicator on the button will illuminate. To turn off the heating function, press the button once again.

1. Cruise control system* [6]

   1. Cruise indicator
   2. Set speed

Towing / Jack And Tools / Tyre Mobility Kit

Towing [7]
When towing the vehicle in an emergency without wheel dollies:

1. Set the ignition switch in the ACC position.
2. Place the transmission shift lever in N (Neutral).
3. Release the parking brake.

Emergency towing
If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service.

Failure to place the transaxle shift lever in N (Neutral) may cause internal damage to the transaxle.

Jack and tools* [7]
The shown tools are stored in the luggage compartment. Pull up the luggage box cover to reach this equipment.

1. Jack handle
2. Jack
3. Wheel lug nut wrench

Tyre Mobility Kit* [7]
Please read the instructions before using the Tyre Mobility Kit.

1. Compressor
2. Sealant bottle

With the Tyre Mobility Kit (TMK) you stay mobile even after experiencing a tyre puncture. After you ensure that the tyre is properly sealed you can drive cautiously on the tyre (up to 200 km (120 miles)) at a max. speed of 80 km/h (50 mph) in order to reach a vehicle or tyre dealer to have the tyre replaced.

Engine Oil / Washer Fluid / Additional Info

Checking the engine oil level [8]

1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach normal operating temperature.
3. Turn the engine off, remove the oil filler cap and pull the dipstick out. Wait for 15 minutes for the oil to return to the oil pan.
4. Wipe the dipstick clean and reinsert it fully.
5. Pull the dipstick out again and check the level. Check if the oil level is between the F-L line, and if it is below the L line, add enough oil to bring the level to F line.

Refilling engine oil [8]
Use a funnel to help prevent oil from being spilled on engine components.
Use only the specified engine oil [9].

Checking the washer fluid level [8]
Check the fluid level in the washer fluid reservoir and add fluid if necessary. Plain water may be used if washer fluid is not available.
However, use washer solvent with antifreeze characteristics in cold climates to prevent freezing.

Parking brake (handbrake)
When engaging the parking brake, apply the footbrake first and keep it depressed. Then apply the parking brake.

We strongly recommend
to leave the car in first or reverse gear or in the 'P' (Park) position on automatics when leaving the car.
