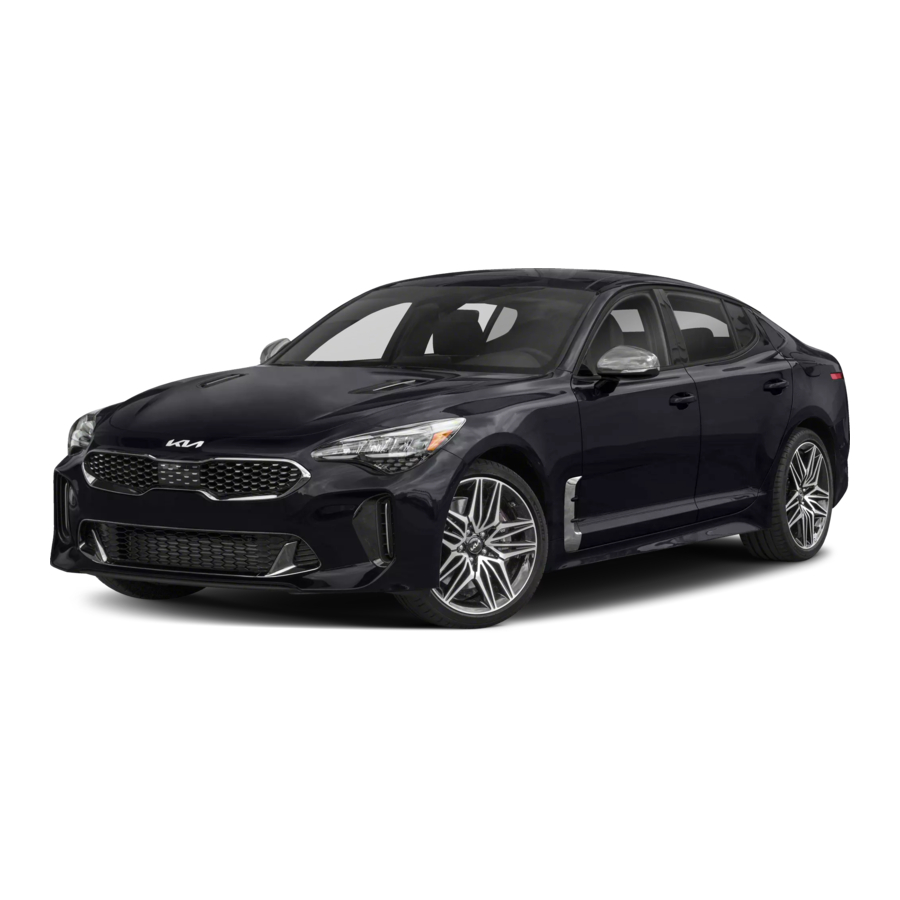

Kia Stinger 2022 Manual

Interior Overview

1. Inside door handle
2. Driver position memory button
3. Power window switch
4. Central door lock switch
5. Power window lock button
6. Outside rear view mirror control
7. Outside rear view mirror folding
8. Headlight leveling device
9. Instrument panel illumination control
10. Lane safety button
11. Fuel filler door open button
12. Power tailgate open button
13. Steering wheel
14. Tilt and telescopic steering control
15. Inner fuse panel
16. Brake pedal
17. Bonnet release lever
18. Seat
19. Throttle pedal

Instrument Panel Overview

1. Steering wheel audio control
2. Driver's front air bag
3. Horn
4. Instrument cluster
5. Light control
6. Engine start/stop button
7. Driving assist button
8. Infotainment system
9. Hazard warning flasher
10. Automatic climate control system
11. Shift lever A/T
    Shift lever A/T (shift by wire)
12. Seat warmer
    Air ventilation seat
13. Heated steering wheel button
14. DRIVE MODE button
15. Electronic parking brake
    (EPB) switch
16. Auto Hold On/Off button
17. Parking safety button
18. Parking/View button
19. ISG OFF button
20. Wireless smart phone charging system
21. Center console storage box
22. Power outlet
23. Glove box
24. Passenger's front air bag
25. USB charger
26. Electronic stability control
    (ESC)
27. USB port
28. Wiper/Washer

Instrument Cluster / Engine Compartment

Instrument cluster

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge

4. Fuel gauge
5. Warning and indicator lights
6. LCD display

Engine compartment

1. Engine coolant reservoir
2. Radiator cap
3. Engine oil filler cap
4. Engine oil dipstick
5. Brake fluid reservoir

6. Fuse box
7. Windscreen washer fluid reservoir
8. Air cleaner

Note: The battery is in the luggage area.

Climate Control System / Wipers and Washers

Automatic climate control system*

Wipers and Washers
Type B

1. Wiper speed control (front)
   1. Single wipe
   2. O Off
   3. -- Intermittent wipe
      AUTO* Auto control wipe
   4. 1 Low wiper speed
   5. 2 High wiper speed
2. Intermittent control wipe time adjustment
3. Wash with brief wipes (front)*

Lighting Control / Steering Wheel / Cruise Control System

Lighting control

1. OFF position
2. Auto light/DBL position
3. Parking light position
4. Headlight position

Tilt & telescopic steering*
Steering wheel adjustment: Adjust the steering wheel angle (2) and position (3) with the switch (1). Never adjust the position of the steering wheel whilst driving.

Heated steering wheel*
When the ENGINE START/STOP button is in the ON position, pressing the heated steering wheel button warms the steering wheel. The indicator on the button will illuminate. To turn the heated steering wheel off, press the button once again. The indicator on the button will turn off.

1. Cruise control system* [5]

   1. CRUISE indicator (CRUISE/)
   2. Set speed
2. To set speed, accelerate to the desired speed and press the Driving Assist button

3. To increase cruise control set speed push the + switch up

4. To decrease cruise control set speed press - switch down

5. Cancel cruise control set speed by pressing the Dirving Assist button or by depressing the brake pedal to cancel it temporarily

6. Resume cruising speed by pushing the + or - switch


Windows

Windows

1. Driver's door power window switch
2. Front passenger's door power window switch
3. Rear door (left) power window switch
4. Rear door (right) power window switch
5. Window opening and closing
6. Automatic power window up*/down*
7. Power window lock button

Note: In cold and wet climates, power windows may not work properly due to freezing conditions.

Windscreen defrosting and defogging
To defog inside windscreen:

1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Press the defroster button.
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.

To defrost outside windscreen:

1. Set the fan speed to the highest position.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defroster button.
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.

Auto defogging system
Auto defogging reduces the possibility of fogging up the inside of the windscreen by automatically sensing the moisture of inside the windscreen.

Emergency tailgate safety release

Opening the fuel filler door
Push the fuel filler door opener button.

1. Pull open the fuel filler door
2. Turn cap counterclockwise to open

Closing the fuel filler door

• Turn cap clockwise until it "clicks" to ensure it is securely tightened.
• Close the fuel filler door and push it lightly and make sure that it is securely closed.

Opening the bonnet
Pull the release lever to unlatch the bonnet

Closing the bonnet

• Before closing the bonnet, check if all filler caps are correctly installed and any other combustible material must be removed from the engine compartment.
• Lower the bonnet halfway and let it drop to securely lock in place.

Towing / Spare Tyre, Jack And Tools / Tyre Mobility Kit

Towing
When towing the vehicle in an emergency without wheel dollies, tow with the front wheels off the ground and:

1. Set the Engine Start/Stop button in the ACC position.
2. Place the transmission shift lever in N (Neutral).
3. Release the parking brake.

Emergency towing
If towing is necessary, it is recommended to have it done by an authorised Kia dealer or a commercial tow truck service.

1. Wheel dollies

Removable towing hook

1. Open the tailgate and remove the towing hook from the tool case.
2. Remove the hole cover by pressing the right side of the cover on the bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully secured.
4. Remove the towing hook and install the cover after use.

Spare tyre, jack and tools*
The shown tools are stored in the luggage compartment. Pull up the luggage box cover to reach this equipment.

1. Jack handle
2. Jack
3. Wheel lug nut wrench

Tyre Mobility Kit*
Please read the instructions before using the Tyre Mobility Kit.

1. Compressor
2. Sealant bottle

With the Tyre Mobility Kit you stay mobile even after experiencing a tyre puncture. After you ensure that the tyre is properly sealed you can drive cautiously on the tyre (up to 200 km (120 miles)) at a max. speed of 80 km/h (50 mph) in order to reach a vehicle or tyre dealer to have the tyre replaced.

Engine Oil / Washer Fluid

Checking the engine oil level

1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach normal operating temperature.
3. Turn the engine off, remove the oil filler cap and pull the dipstick out. Wait for 15 minutes for the oil to return to the oil pan.
4. Wipe the dipstick clean and reinsert it fully.
5. Pull the dipstick out and check the level. The level should be between F and L.

Refilling engine oil
Use only the specified engine oil and avoid spillage.

Additional Info*
Idle Stop & Go (ISG)
When enabled, ISG automatically stops the car's engine to reduce fuel consumption and emissions. The ISG function may not work if the car's battery charge status, ambient temperature and/or engine temperature is too low. Air conditioning/heater control settings may also affect ISG function.

Parking brake (handbrake)
When engaging the parking brake, apply the footbrake first and keep it depressed. Then apply the parking brake.
We strongly recommend to leave the car in first or reverse gear or in the 'P' (Park) position on automatics when leaving the car.

Hill-start assist control (HAC)*
A vehicle has the tendency to slip back on a steep hill when it starts to go after stopping. The Hill-start Assist Control (HAC) prevents the vehicle from slipping back by operating the brakes automatically for about 1~2 seconds. The brakes are released when the accelerator pedal is depressed or after about 1~2 seconds.

Kia Service App
The Kia Service App – now available for free on iPhone/iPad and Android With the Kia Service App, you have (almost) all Kia dealers in Europe within reach*. Looking for a showroom or just a service, the app displays all dealers around your current location on the map. With one click you can call a dealer, visit their website or get directions to the showroom.
(*) In selected markets only
