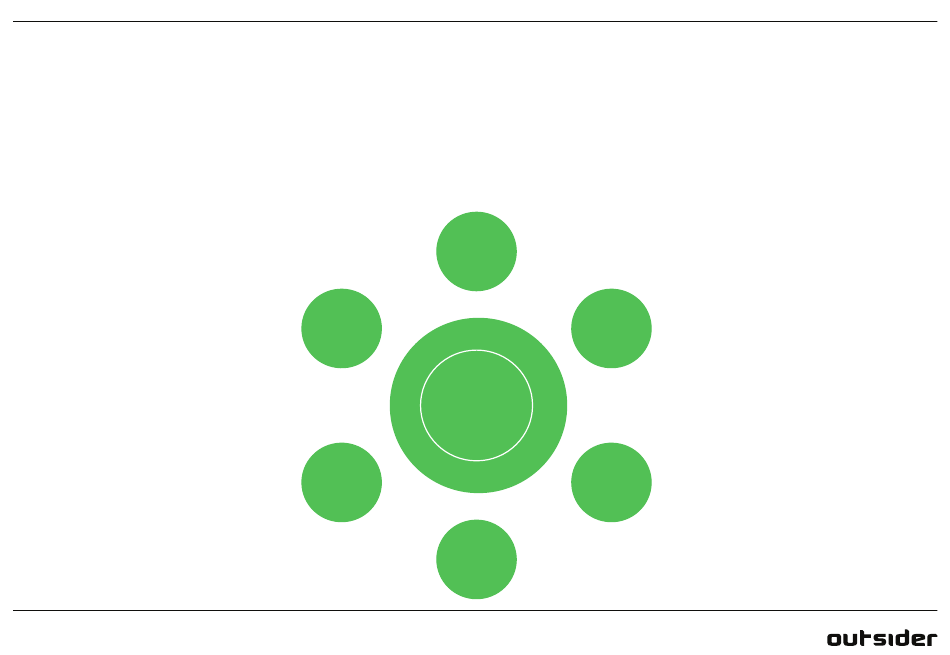

#172 LOOP PICNIC - MOUNTING
LOOP PICNIC
#172
out-sider a/s
info@out-sider.dk
Kigkurren 8A, Islands Brygge
www.out-sider.dk
DK-2300 Copenhagen S
01.08 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOOP PICNIC 172 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outsider LOOP PICNIC 172

Summary of Contents for Outsider LOOP PICNIC 172

  • Page 1 #172 LOOP PICNIC - MOUNTING 01.08 2024 LOOP PICNIC #172 out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge www.out-sider.dk DK-2300 Copenhagen S...

  • Page 2: Table Of Contents

    #172 LOOP PICNIC - MOUNTING 01.08 2024 ITEM LIST ELEMENTLISTE/ ARTIKELLISTE DK/DE/ES/FR LISTA DE ARTICULOS/ LISTE DES ARTICLES #172 LOOP PICNIC INDEX: PAGE Item list ....................02 ............02 Vareliste/Artikelliste/ Lista de artículos/ Liste d’articles Filling....................03 ..............03 TOOL Påfyldning/Füllung/Relleno/Remplissage Mounting Hopop 500 and Loop Cone..........04 .......04 Montering af HOP OP 500 og Loop Cone/ Montage des HOP OP 500 und Loop Cone .......04...
  • Page 3 #172 LOOP PICNIC - MOUNTING 01.08 2024 FILLED WITH WATER OR SAND / HOPOP 500 FILLED WITH WATER OR SAND / LOOP CONE TABLE VAND/WASSER/AGUA/EA / ARENA/SABLE VAND/WASSER/AGUA/EA / ARENA/SABLE Ø55mm Ø 500mm Ø55mm Ø1130mm HopOp500 (6kg) (Volume = 70 liter 1/3 volume ~ 24 liters water/ wasser/agua/ea) Loop Cone (22 kg)
  • Page 4 #172 LOOP PICNIC - MOUNTING 16.10 2023 MOUNTING THE HOPOP 500 AND LOOP CONE TABLE MONTERING AF HOPOP 500 OG LOOP CONE TABLE/ MONTAGE DES HOPOP 500 UND DES LOOP CONE TABLE MONTAJE DEL HOPOP 500 Y LOOP CONE TABLE/ MONTAGE DU HOPOP 500 ET DU LOOP CONE TABLE HopOp 500: B8 (surface fixation/overflademontering/oberflächenmontage//superficie montanosa/montage en saillie) 1x B8 per HopOp 500...

  • Page 5: Montering Af Hop Op 500 Og Loop Cone/ Montage Des Hop Op 500 Und Loop Cone

    #172 LOOP PICNIC - MOUNTING 01.08 2024 MOUNTING THE HOPOP 500 AND LOOP CONE TABLE MONTERING AF HOPOP 500 OG LOOP CONE/ MONTAGE DES HOPOP 500 UND DES LOOP CONE MONTAJE DEL HOPOP 500 Y LOOP CONE/ MONTAGE DU HOPOP 500 ET DU LOOP CONE HopOp 500: B9 (ground fixation/nedgravning/bodenbefestigung/fijación al suelo/fixation au sol) 1x B9 per HopOp 500...
  • Page 6 #172 LOOP PICNIC - MOUNTING 01.08 2024 B9 - HOPOP 500 B8 - HOPOP 500 M10 x 12 M10 x 12 61mm 407 mm 149mm 86 mm 12mm 12mm 40 mm 22 mm 23mm 22mm Ø 12mm Ø12 mm 294 mm 124 mm 124 mm 67 mm...

  • Page 7: B14

    #172 LOOP PICNIC - MOUNTING 01.08 2024 6 x HopOp 500 attach to the arms of the B14 bracket using the M10 bolts included as shown on the drawing. Two possible positions allow for a total diameter of either 2.40m or 2.50m. 6 x HopOp 500 fastgøres til armene på...
  • Page 8 #172 LOOP PICNIC - MOUNTING 01.08 2024 Når de 6 HopOp 500-enheder er monteret på deres individuelle fittings, skal du placere dem i en stjerneformation og sænke Loop Cone-delen over stjernen for at samle de lodrette flanger inde i Loop Cone. Nu kan de skubbes på plads og boltet til de seks beslag (se side 09).
  • Page 9 #172 LOOP PICNIC - MOUNTING 01.08 2024 ATTACHING THE B14 STAR BRACKET MONTERING/ MONTAGE/ MONTAJE Gather the long parts of the B14 bracket three at a time using the two semi-circular brackets. Requires a total of 6 x M10 nuts. Attach the 6 brackets to Loop Cone by bolting the vertical flanges to the brackets.
  • Page 10 #172 LOOP PICNIC - MOUNTING 01.08 2024 ATTACHING THE B14 STAR BRACKET MONTERING/ MONTAGE/ MONTAJE Finally the entire arrangement is placed in the desired location and bolted to the underlying surface. We recommend the use of expansion bolts. Til sidst placeres hele arrangementet på det ønskede sted og boltes til den under- liggende overflade.

  • Page 11: Mounting The Tabletop

    #172 LOOP PICNIC - MOUNTING 01.08 2024 MOUNTING THE TABLETOP USING THE BRACKETS SUPPLIED The assembled brackets are mounted into the 3 inserts using the M10 bolts and MONTERING AF BORDPLADEN VED HJÆLP AF DE MEDFØLTE BESLAG/ washers supplied. MONTAGE DER TISCHPLATTE MIT DEN MITGELIEFERTEN HALTERUNGEN/ MONTAJE DE LA MESA USANDO LOS SOPORTES SUMINISTRADOS/ Press the tabletop into the 3 rubber plugs in the bracket.
  • Page 12 #172 LOOP PICNIC - MOUNTING 01.08 2024 MOUNTING THE TABLETOP USING THE BRACKETS SUPPLIED MONTERING AF BORDPLADEN VED HJÆLP AF DE MEDFØLTE BESLAG/ Begin by placing one of the 3 connectors into one of the 3 rubber MONTAGE DER TISCHPLATTE MIT DEN MITGELIEFERTEN HALTERUNGEN/ plugs.

  • Page 13: Adjusting The Tabletop

    #172 LOOP PICNIC - MOUNTING 01.08 2024 ADJUSTING THE TABLETOP USING THE FLEXIBLE ANGLE BRACKETS JUSTERING AF BORDPLADEN VED HJÆLP AF DE FLEKSIBELE VINKELBESLAG/ The 3 angle brackets may be attached in a number of positions to permit VERSTELLEN DER TISCHPLATTE MIT DEN FLEXIBLEN WINKELHALTERN/ horizontal adjustment of the tabletop.

  • Page 14: Dismantling The Tabletop For Maintenance

    #172 LOOP PICNIC - MOUNTING 01.08 2024 DISMANTLING THE TABLETOP FOR MAINTENANCE AFMONTERING AF BORDPLADEN FOR VEDLIGEHOLDELSE/ The tabletop can be removed to adjust the height or to clean inside Loop DEMONTAGE DER TISCHPLATTE FÜR WARTUNGSARBEITEN/ Cone. Position the tool level with one of the 3 plugs between the tabletop DESMONTAJE DE LA MESA PARA MANTENIMIENTO/ and Loop Cone and tilt it to loosen the tabletop.
