Summary of Contents for Outsider PLATEAU Picnic O

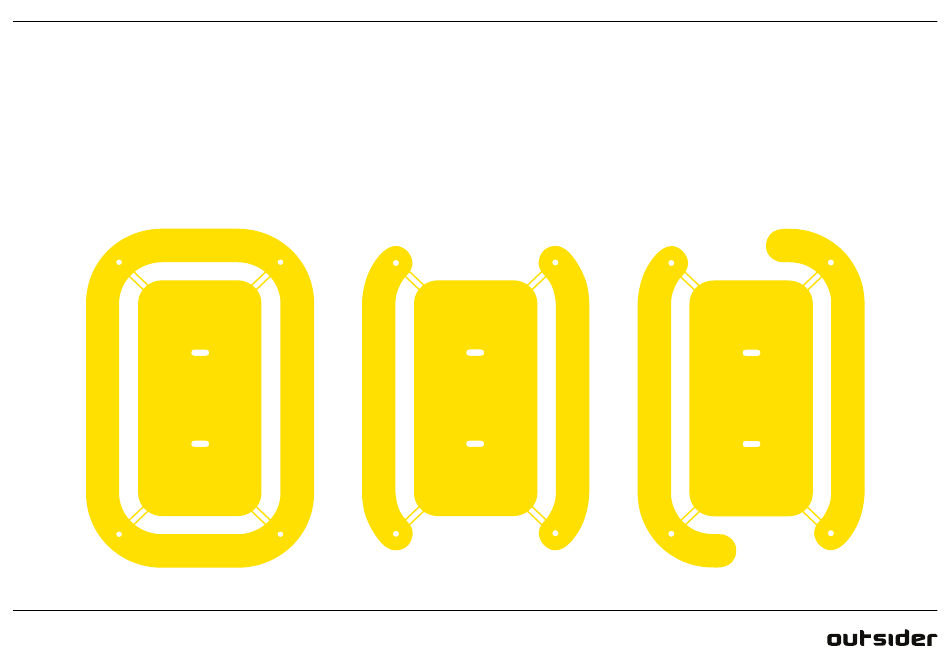

- Page 1 MOUNTING #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 PLATEAU PICNIC O+I+L INSTRUCTIONS #177 + #197 out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge +45 2261 7420 DK-2300 Copenhagen S www.out-sider.dk...
- Page 2 2 pcs laser cut tubes PLEASE NOTE • 2 pcs elongated discs The drawings in this manual show PLATEAU Picnic O - the version with the elliptical bench. The exact same mounting principles are • 4 pcs round discs adherent to the I and L versions with split benches.
- Page 3 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 UNPACKING THE SHIPMENT Cut the safety straps, remove protective material and unbox mounting parts (check list page 02) and legs. out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge +45 2261 7420 DK-2300 Copenhagen S...
- Page 4 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 MOUNTING THE LEGS IN PAIRS A-legs and B-legs are assembled with the included M8x20mm allen key bolts. Please note that the part with the M8 thread must point outwards (B-leg). Only tighten bolts lightly at this point - do not fully tighten until assembly is completed.
- Page 5 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 MOUNTING LEG PAIRS ON THE TABLE TOP Use the attached M10x20mm bolts to assemble leg pairs and table. Tighten bolts gently, using allen key no 6. out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge...
- Page 6 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 MOUNTING THE BENCH ONTO LEGS Use allen key no 6 to assemble bench and legs, using the included M10x20mm bolts. After this step, tighten all the bolts in PLATEAU. out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge...
- Page 7 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 MOUNTING ROUND AND ELONGATED DISCS, STEP 1 out-sider a/s info@out-sider.dk Kigkurren 8A, Islands Brygge +45 2261 7420 DK-2300 Copenhagen S www.out-sider.dk...
- Page 8 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 MOUNTING ROUND AND ELONGATED DISCS, STEP 2 Mounting the round and elongated discs: Mount 4x M10 bolts with M10 nuts and washers through the tubes in each corner of the bench. NOTICE: Washer on each side pre- Mount 4x m10 bolts with M10 nuts and washers through the tubes under the table vents the bolt from moving.
- Page 9 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 PLATEAU BACKREST MOUNTING OF PLATEAU BACKREST You will need: #197 4x M8x14 mm bolts. 4x M10x15 mm bolts. 4x Plastic washers. PLEASE NOTICE: Be careful not to lose the bolts inside the tube, during the assembly proces. They are difficult to get out.
- Page 10 #177 PLATEAU PICNIC O+I+L - MOUNTING 30.01.2020 CLEANING Clean the laminate surfaces using hot water and a soft sponge or cloth. Do not use the abrasive ‘green’ side of sponges. Common household cleaners without abrasives eg. dish detergent or window cleaner may be used.
