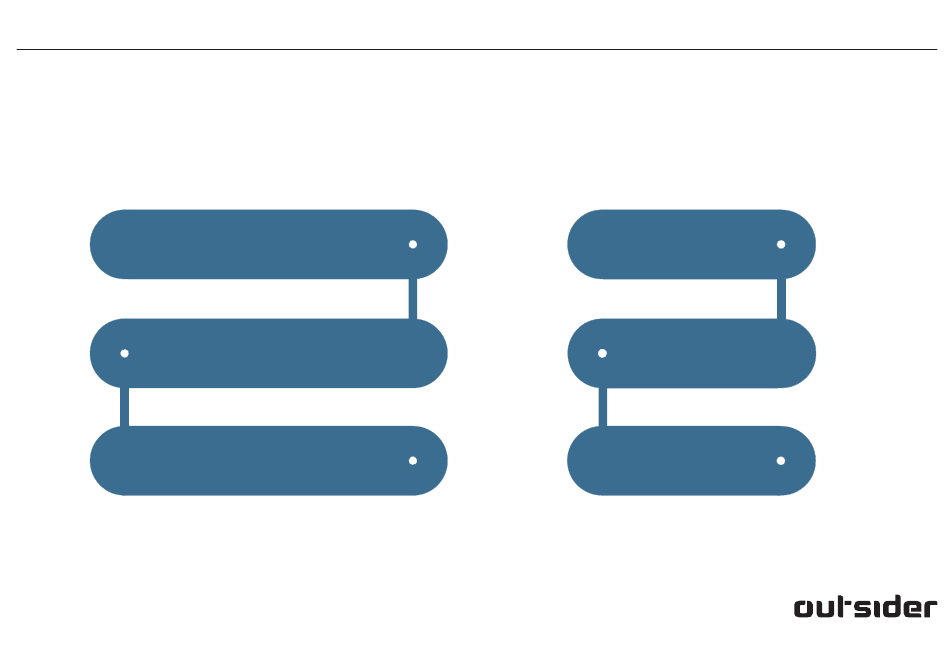

- Page 1 PLATEAU STREET #207 MOUNTING GUIDE Kigkurren 8A Islands Brygge DK-2300 Copenhagen · out-sider.dk...
- Page 2 3x Seat 1800 or Seat 1250 PLATEAU PICNIC STREET Developed by out-sider in collaboration with Holscher Design 2019. INDEX: PAGE 1x logo disc 2x disc (195 9040) (195 9041) 2x Street leg (204 3030) Item list ..................02 Assembling legs and table............03 Assembling laminate seats to the legs........04 Assembling seats to table frame..........04 2x Short leg with flange...
- Page 3 ASSEMBLING LEGS AND TABLE A: Place one leg at the end where there is no hole through the frame. Fixate the leg with M8x100 bolt, nut and washer. B: flip the assembly over, place the other leg underneath the frame. Insert the disc, and fixate leg and disc with M8x100 bolt, nut and washer.
- Page 4 ASSEMBLING LAMINATE SEATS TO LEGS Use the included M8 x 100mm allen key bolts to fix the sitting surface to the fixated surface bracket. Tighten the bolts and nuts with allen key no 6. and a 17mm spanner tool. ATTENTION - Only place laminate on a safe, or soft surface to prevent damage to the laminate.
- Page 5 ASSEMBLING SEATS TO TABLE FRAME The two seats are placed over the table frame and fastened with M8x100, nut and washer. Tighten firmly. Remember to fit disc before tightening the bolt. M8 nut and washer M8x100 bolt...
- Page 6 CLEANING Clean the laminate surface with warm water and a soft sponge. NEVER use the abrasive “green” side of the sponge. Use an ordinary universal cleaner. Difficult dirt must be removed with a nano sponge and water. Please take a closer look at our website, or contact us for information.
