Summary of Contents for PCE Instruments PCE-WAM 60
Page 1

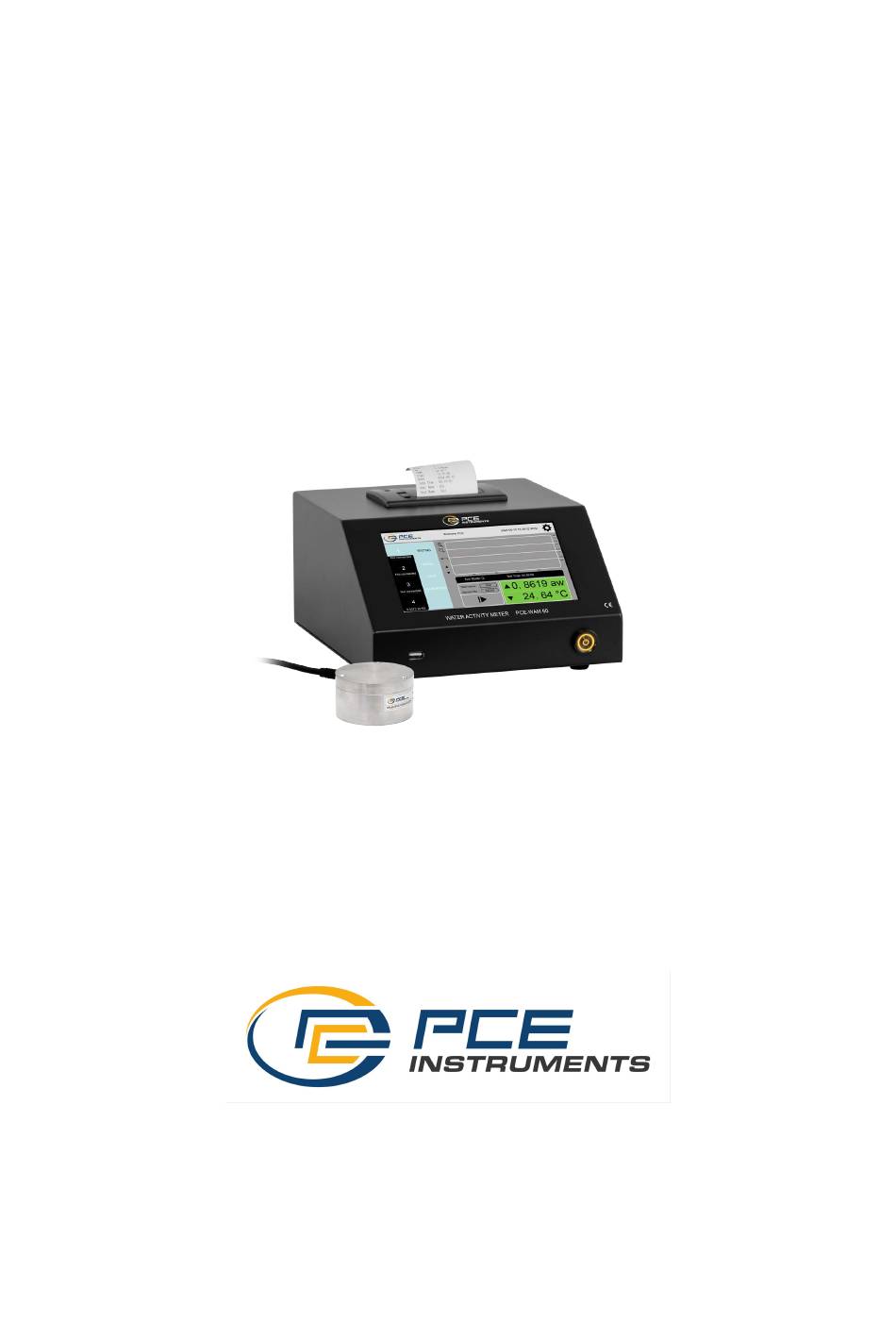

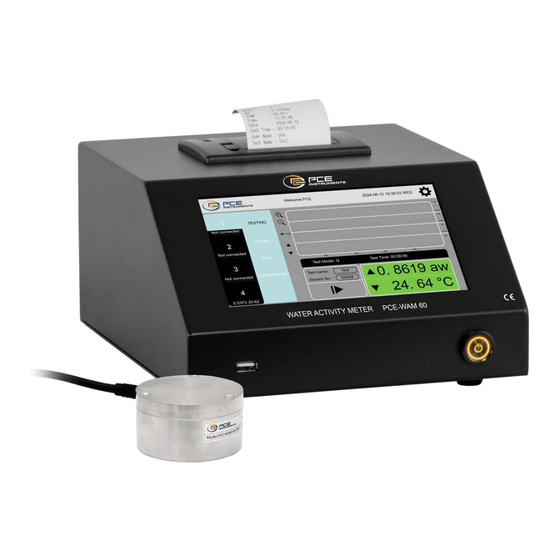

PCE-WAM 60 Laboratory Water Activity Meter Operation Manual PCE Deutschland GmbH...
Page 2
1. Description PCE-WAM 60 includes: 1 x water activity meter PCE-WAM 60, 1 x aw sensor, 1 x sample holder, 20 x sample cups, 1 x USB cable B-type to A- type, 1 x mains adaptor 12 V, 5 A, 1 x PC software (Windows 10 or higher), 1 x user manual The software can be found in the download area.
Page 3
PC connect USB RS232 interface 4 probe host interface power jack 2. Front introduction 7 Inch Touch Screen USB Port Power button...
4. Quick operation 4.1. Connect the instrument; Prepare samples; 4.2. The instrument and the sample shall be kept at the same ambient temperature for more than 1 hour to ensure that the temperature of the sample and the instrument before the test is the same; 4.3.
Page 6
5. Initial boot login settings For the first time, you need to set the super administrator account to log in and manage users later. 6. Main interface introduction and operation 6.1. Testing interface: 6.1.1. Testing introduction: Testing start interface: 6.1.1.1. Test mode Curve adjustment Test time Test status indication...
Page 7
6.1.1.2. Testing end interface: 6.1.1.3. Click the test button to start measurement, and click again to cancel the test; 6.1.1.4. Test Name: enter the name of the current test item; 6.1.1.5. During the measurement process, there are two data change trends, which is convenient to judge the data change of the current product;...
Page 8
6.2. Mode setting: (only administrators and operators can enter) 6.2.1. two modes: fast and normal. (the continuous mode is the continuous display mode when the measurement key is not pressed) 6.2.2. Default model: fast mode 6.2.3. when you need to modify parameters, click the data box, enter with the numeric keypad, and click save after completion 6.2.4.
Page 9
6.3. data record: 6.3.1. Data records: 65535 at most for each channel 6.3.2. The bottom is the setting parameters of the data: time setting (fast mode is the sampling time, normal mode is the comparison interval), temperature Δ Temperature difference set for mode, activity Δ Activity difference set for mode 6.3.3.
Page 10
6.4. Calibration: (only for internal use by PCE Instruments, see chapter 8)
Page 12
7.2. Date and time setting: set the correct date and time 7.3. Hardware setting: buzzer switch and brightness setting 7.4. User management: non administrators and administrators can quit switching users, or modify their own names and passwords; Administrators can delete and add users and level permission settings...
Page 14
9. Connect the computer 9.1. Connect the USB cable to the computer and install the driver (download from the website); 9.2. Install the software (download from the website), directly unzip it to the root directory of the hard disk, click awsoft.exe in the directory to start the software, and automatically add desktop shortcut after startup to facilitate the next use;...
Page 15
9.13. After the stored data is opened, click the data in the data list below to view the curve processing here; 9.14. After the host data processing is completed, click this button to turn it off and switch to the measurement mode; 9.15.
Page 16
� Dialog Super administrator registration User Name: Password Confüm Pv.d: register � Dialog Newly added user password: 1234 Name � - � 1 1 ad d de let e Class admin user observer Quick ll°C(O.--) Minutes .., l :i l �...
Maintenance and precautions 10.1. Do not place and measure organic solvent products: alcohol and alcoholic products, volatile chemicals, such as chemical solvents or organic compounds, especially high concentration and long-term contact will be more dangerous (b) ketene, acetone, isopropanol, ethanol, toluene, etc. have been shown to cause humidity readings to shift –...
Page 19
If it is not used for a long time, please disconnect the power adapter 10.11. Please store the instrument in a cool and dry place Accessories 11.1. Spare measuring cups PCE-WAM 60-CUP; 11.2. Additional sensor PCE-WAM 60-SENS; 11.3. Additional sensor connection base PCE-WAM 60-BASE; 11.4. Replacement printer paper rolls PCE-WAM 60-PP...
Page 20
Comparison table of the latest saturated salt solution relative humidity Water activity = relative humidity /100; Simple configuration method: ensure that there is salting out or surplus...
