OPERATING MANUAL
PCE-WVS 50
VIBRATION METER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-WVS 50 and is the answer not in the manual?

Questions and answers

Summary of Contents for PCE Instruments PCE-WVS 50

  • Page 1 OPERATING MANUAL PCE-WVS 50 VIBRATION METER...
  • Page 2: Table Of Contents

    Operating restrictions ................8 Preparing the product for use ..............8 Use of the product ..................9 Completeness ....................10 Maintenance and repair ................11 Storage ......................11 Transportation ....................11 Disposal ......................12 PCE Instruments contact information ............13...
  • Page 3: Introduction

    PCE-WVS 50 vibration meter then the device or vibrometer. We recommend that personnel authorized to work with a vibration meter undergo special training in the field of vibration control and diagnostics of machines in accordance...
  • Page 4: Description And Operation

    Description and operation 1.1 Purpose of the product PCE-WVS 50 is a portable diagnostic device that allows you to quickly diagnose the vibration state of various industrial equipment. In accordance with ISO 10816-1:2007, the device allows you to measure and control vibration by the root mean square value (RMS) of vibration velocity, vibration acceleration peak and vibration displacement range.
  • Page 5: Technical Specifications

    PCE-WVS 50 Operating manual 1.2 Technical specifications Specifications are shown in table 1. Table 1 № Parameter Value Range of measured parameters: - RMS value of vibration velocity, mm/s 0,01 - 200 - Peak value of vibration acceleration, m/s 0,1 - 200 - The scope of vibration displacement, µm...
  • Page 6: Structure And Operation

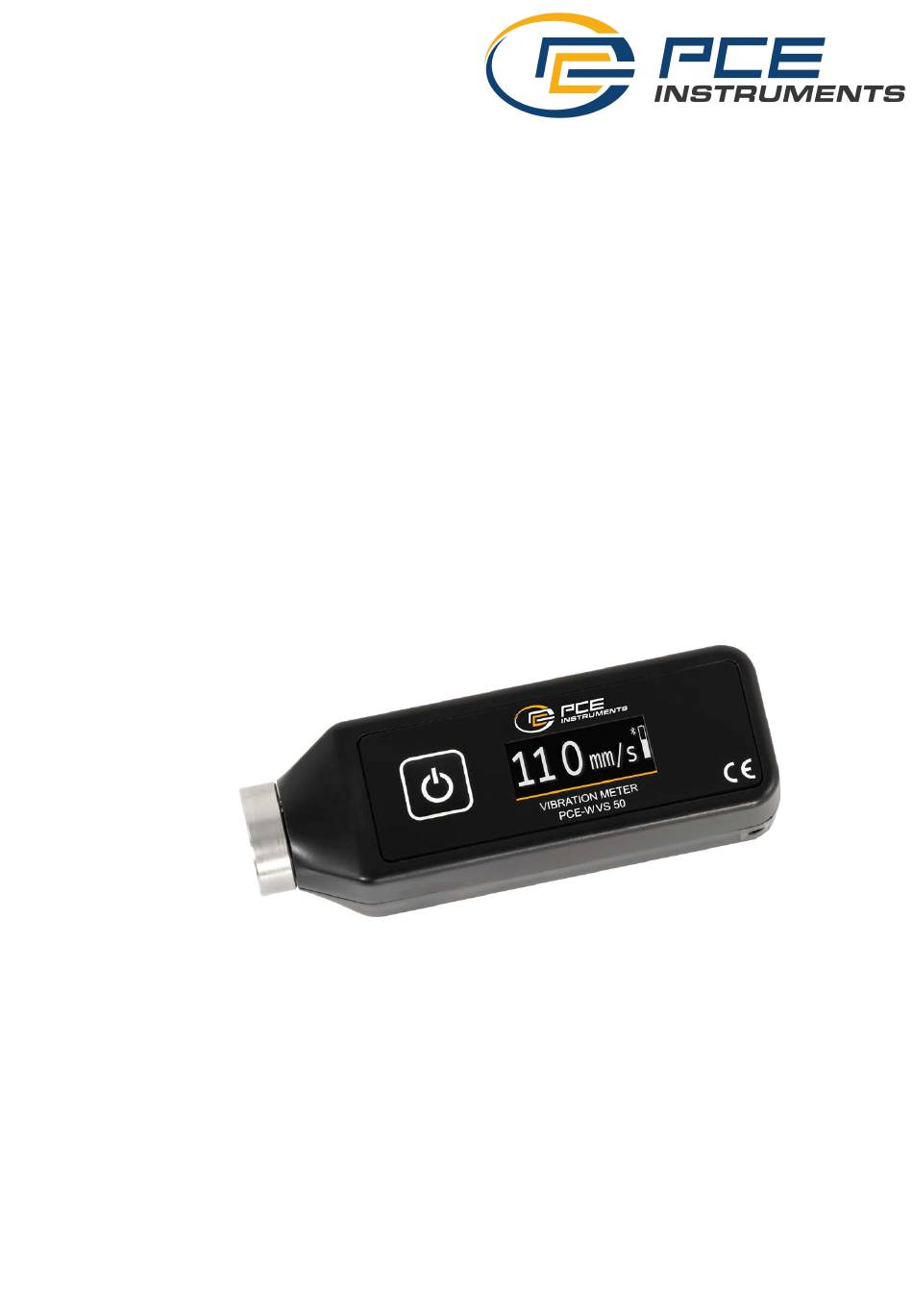

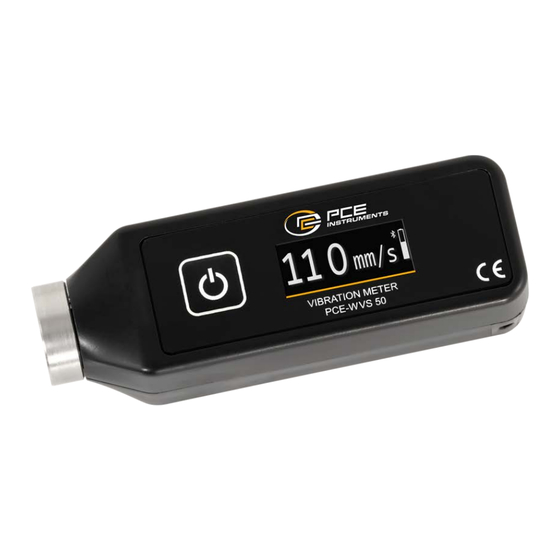

    PCE-WVS 50 Operating manual 1.3 Structure and operation 1.3.1 The general view of the device is shown in the figure 1.1. Button 1 - taking Screen measurements Vibration sensor with magnetic Instrument surface housing Figure 1.1 - General view of the device 1.3.2 General view of the device.
  • Page 7 PCE-WVS 50 Operating manual After the button is released, the display will show the last measurement result, which is displayed for 30 seconds, after which the device will automatically turn off. When the battery charge indicator falls below the allowable limit, you need to...
  • Page 8: Intended Use

    PCE-WVS 50 Operating manual Intended use 2.1 Operating restrictions Persons who have studied this operating manual, as well as the safety regulations for working with control and measuring equipment and have been instructed in labor protection, are allowed to work with the device.
  • Page 9: Use Of The Product

    PCE-WVS 50 Operating manual 2.3 Use of the product As a rule, measurements are carried out at different points in two or three mutually perpendicular directions, which makes it possible to obtain a set of vibration parameter values. The vibration level of a machine is understood as the maximum value of vibration, which is measured at one specific point or group of points in selected directions, under certain conditions, and in a stable mode of operation.
  • Page 10: Completeness

    PCE-WVS 50 Operating manual Figure 2.1e - Measurement points on a vertically installed machine A complete assessment of the vibrational state of large aggregates is given by the results of measurements at controlled points in three mutually perpendicular directions, as shown in Fig. 2.1a - 2.1e. As a rule, such completeness of measurements is needed only for acceptance tests.
  • Page 11: Maintenance And Repair

    4) If deficiencies have been identified, contact PCE Instruments. Important! Opening the electronic unit by a person not authorized by PCE Instruments and self-repair of the device is not allowed. Storage The device is stored in a case in a closed, heated room with air temperature (25 ±...
  • Page 12: Disposal

    We either re-use them or give them to a recycling company which disposes of the devices in line with law. For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments.
  • Page 13: Pce Instruments Contact Information

    PCE-WVS 50 Operating manual 9. PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España...
