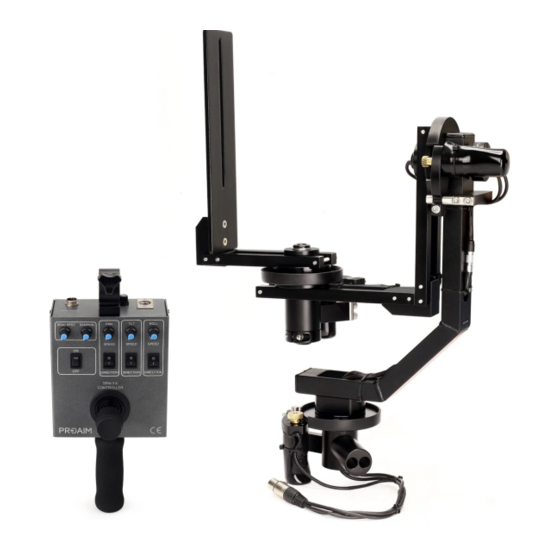

Spin-3 (3-Axis) Motorized Pan Tilt Head for Camera Jib
Crane (PT-SPIN-3)
A s s e m b l y M a n u a l

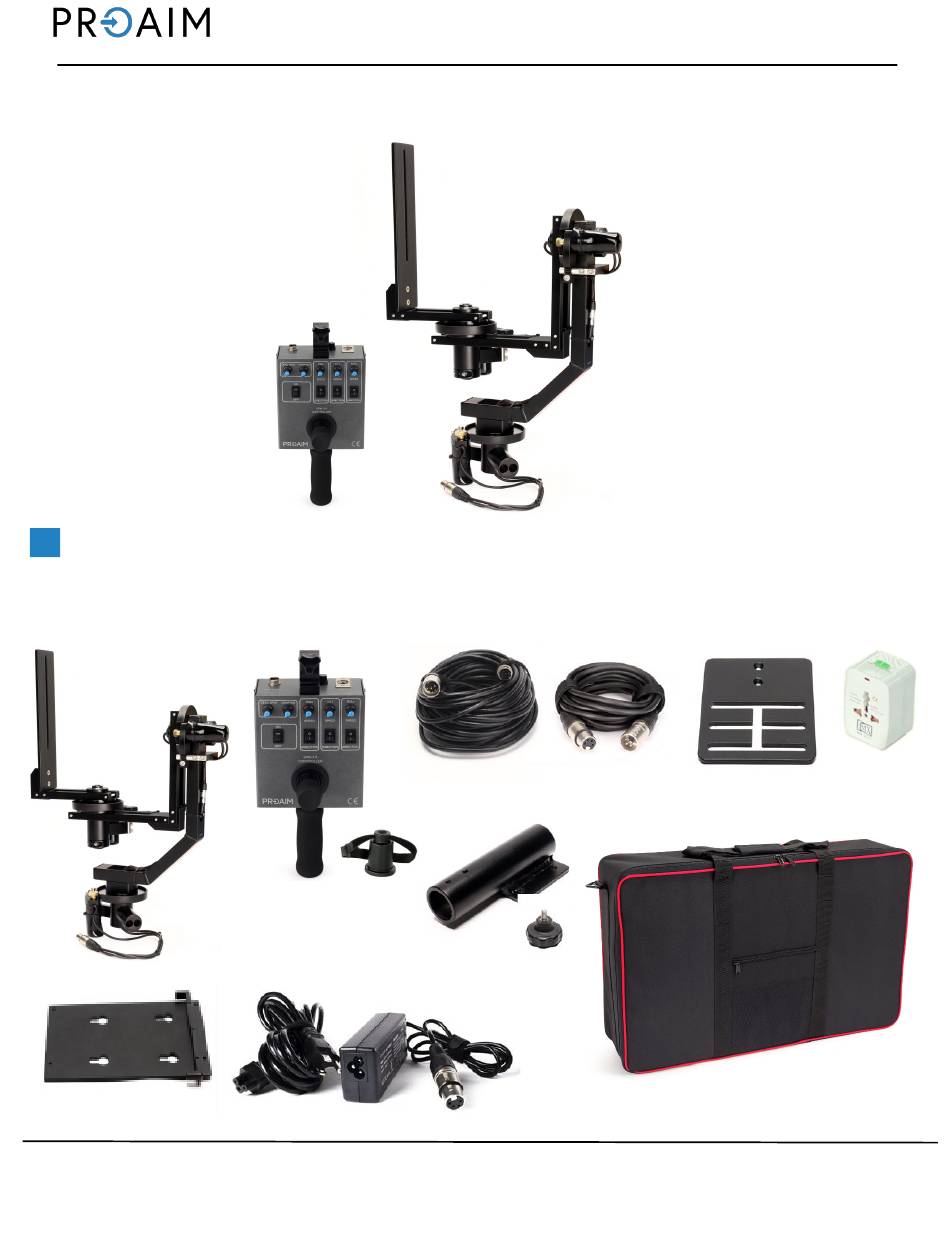

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Universal
15mtr Control
3mtr XLR
Adapter
Camera Plate
Cable
Cable
Joystick
Controller with
Cap
Pan Tilt
Spin-3 Pan-tilt Head
Mounting Plate
and knob
Joystick Controller
Bag Packing
Plate
12V AC Adapter
