Summary of Contents for PCE Instruments PCE-FM 200

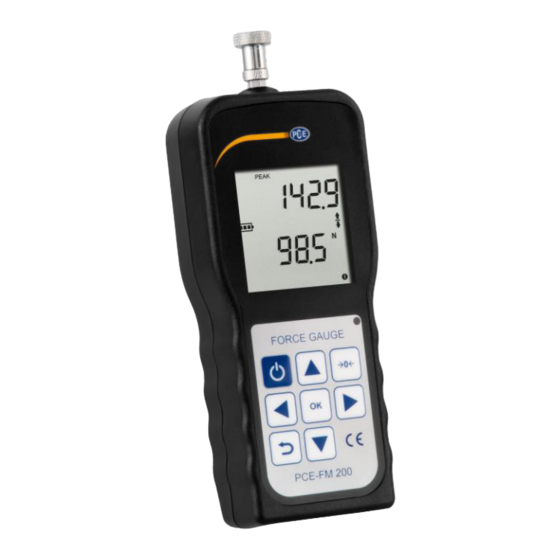

- Page 1 User Manual Force Gauge PCE-FM 200 / PCE-FM 50N / PCE-FM 500N User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www. pce-instruments. com Last change: 26 October 2020 v1.
-
Page 2: Table Of Contents
Display ....................6 Keys ..........................7 Operation ....................8 10 Options ....................9 11 Alarm ....................10 12 Calibration by using weights ............. 10 13 Rechargeable battery ................. 10 14 Warranty ....................11 15 Disposal ....................11 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Specifications
Specifications Model PCE-FM 200 PCE-FM 50N PCE-FM 500N Measuring range 2 ... 200 N 0.5 ... 50 N 5 ... 500 N Calibration 0.1 N Pressure calibration 1 Mpa Load cell integrated load cell with M6 connection Measuring range 1 ... 100 % of the full scale Measurement ±0.5 %... -
Page 5: Function
12 V / 50 mA Memory 10 measurements Peak value measurement Delivery contents 1 x Force gauge PCE-FM 200 or PCE-FM 50N or PCE-FM 500N 1 x Flathead adapter 1 x Hook adapter 1 x Ball head adapter 1 x Chisel head adapter... -
Page 6: Device Description
Device description Keys and adaptor Measuring adaptor Clamping nut Control panel Switched output USB interface Power connection © PCE Instruments... -
Page 7: Dimensions
Dimensions All dimensions in mm Circuit diagram of 3.5 mm jack Here you can find the circuit diagram for connecting a 3.5 mm jack in order to establish a connection to the switched outputs. © PCE Instruments... -
Page 8: Display
Battery level indication PC connection Measuring unit Push (compression) icon Pull (tension) icon “—” the displayed value is smaller than the set limit “○” Measurement successful or interrupted “＋” the displayed value exceeds the set limit © PCE Instruments... -
Page 9: Keys
Down AVER, MAX are qeried and MIN Back to Selected Menu is Invalid measurement option is opened mode opened Displayed Displayed value is value is Left saved saved Peak value Peak value Right is deleted is deleted © PCE Instruments... -
Page 10: Operation
Also in test mode, you can save the peak value by using the key. In storage mode, you can navigate to the right through the memory items by using the key. Also in storage mode, you can navigate to the left through the memory items by using key. © PCE Instruments... -
Page 11: Options
0 °/180 ° Display orientation 0 ° Off: Auto power F-14 off_t no/3~60 min Auto Power Off Off deactivated Backlight On (always on) F-15 on/off/auto Off (always off) Auto: automatic Auto: automatic (5 seconds) F-16 reset no/yes Factory settings © PCE Instruments... -
Page 12: Alarm
8 ~ 10 hours. Remove the power adapter immediately after the product prompts full charge. Otherwise, longtime charging may cause the battery to overheat. Only charge the battery when it is completely flat. Frequent charging shortens the battery life. © PCE Instruments... -
Page 13: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 14 The Netherlands Chile Hong Kong PCE Brookhuis B. V. PCE Instruments Chile S. A. PCE Instruments HK Ltd. Institutenweg 15 RUT: 76. 154. 057-2 Unit J, 21/F. , COS Centre 7521 PH Enschede Santos Dumont 738, local 4...
