- Page 1 User Manual PCE-ECT 50 Earth Tester User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 27 February 2018 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Controls and jacks ................2 Technical specifications ..............3 Operations ..................... 3 Testing the earth pin ................4 Testing sockets ..................5 Continuity test ..................5 Warranty ....................6 Disposal ....................6 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Controls And Jacks

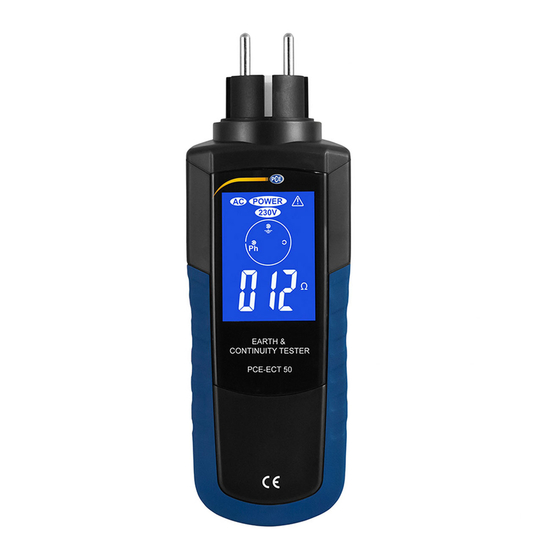

Controls and jacks 1. IP2X safety plug for safety probe 2. LCD display (blue/red) 3. Plugs for 2P+T sockets 10/16A 4. Winder, length 7 m 5. IP2X plug 6. Safety probe IP2X 7. Non-slip coating © PCE Instruments... -
Page 5: Technical Specifications
To facilitate testing , the tester can be used directly on 2P+E 10/16 A sockets. In addition, the two-colour backlighting will alert you instantaneously to the condition of your installation. Blue: OK, Red: fault (earth>100Ω, incorrect voltage, etc.) © PCE Instruments... -
Page 6: Testing The Earth Pin
If this value is obtained, the backlighting is in blue, if the value is above 100Ω, the screen turns red: Fig.1; value OK, Fig.2: value not OK Your instrument measures values up to 1999Ω. Above that, the display indicates OL (overload = value exceeded). Fig.3: Earth resistance greater than 1999Ω. © PCE Instruments... -
Page 7: Testing Sockets
When the unit is in the CONTINUITY mode, the back lighting is switched off (to ensure the measurement current of 200mA specified by NFC 15-100). If there is an abnormal voltage on the earth protection conductors ,the unit enters the Err mode and sounds intermittently. © PCE Instruments... -
Page 8: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 9 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
