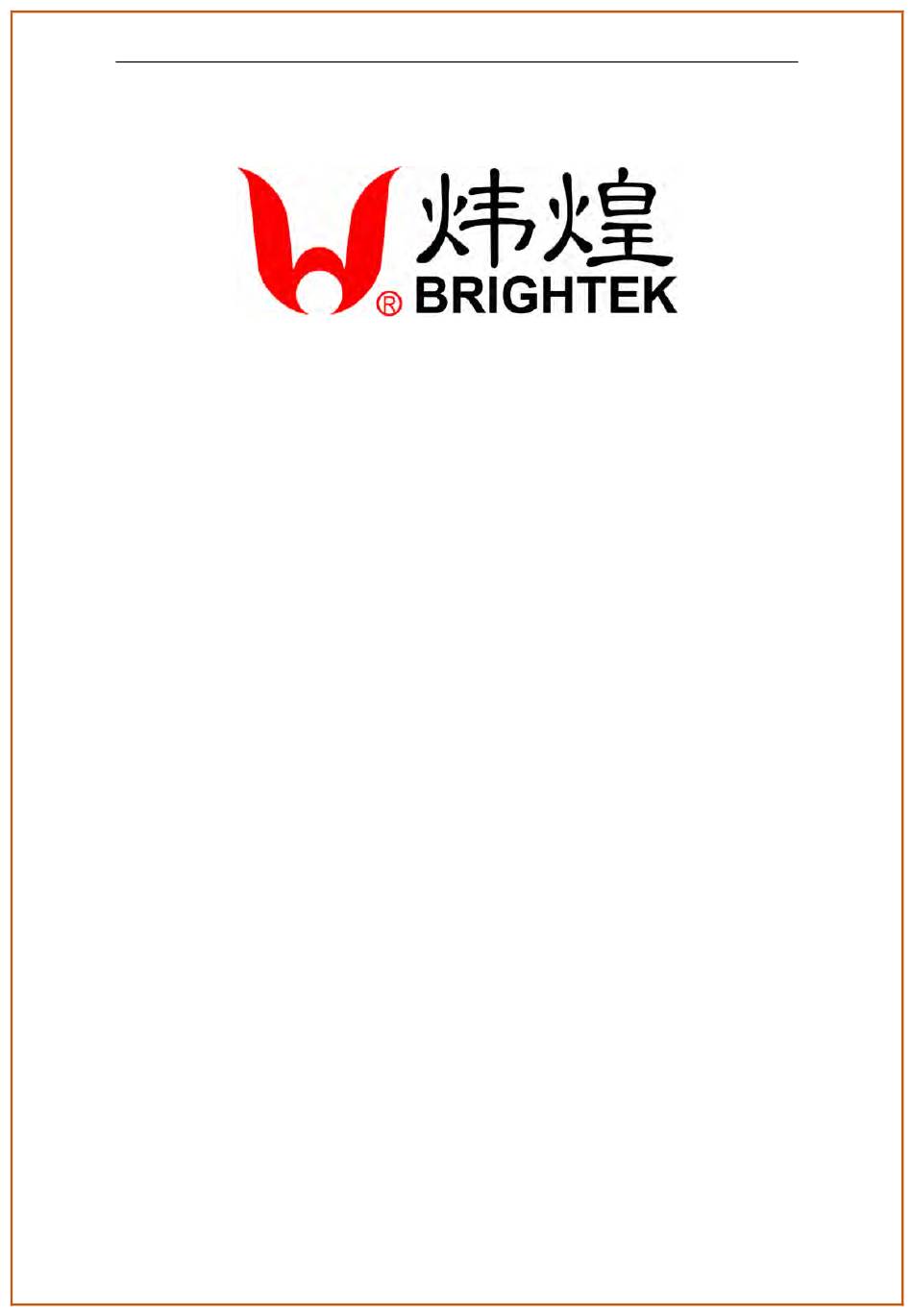

- Page 1 WH-T1 Dot Matrix Printer User Manual 深圳炜煌打印机有限公司 Shenzhen Brightek Printer Co.,Ltd.
- Page 2 Version Version Date Description V1.0 2017-7-3 Enactment...
-
Page 3: Table Of Contents
Content CHAPTER 1 OVERVIEW ..................... 4 1.1 S ........................ 4 PECIFICATION 1.2 O ........................7 PERATION 1.2.1 Indicator Light ....................7 1.2.2 Button ........................ 7 CHAPTER 2 POWER AND COMMUNICATION ..............8 2.1 P ......................8 OWER NTERFACE 2.2 C .................... -
Page 4: Chapter 1 Overview
Paper Paper Width 44 mm Thickness 0.06~0.08 mm Power DC 5V, 3A / DC 9-24V, 10W Communication Interface RS232 / RS485 / TTL Temperature 0~50 ℃ (14~122 ℉ ) Condition Humidity 10~90% RH (non-condensing) Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/... - Page 5 Paper Paper Width 58 mm Thickness 0.06~0.08 mm Power DC 5V, 3A / DC 9-24V, 10W Communication Interface RS232 / RS485 / TTL Temperature 0~50 ℃ (14~122 ℉ ) Condition Humidity 10~90% RH (non-condensing) Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/...
- Page 6 None Paper Type Normal paper Paper Paper Width 58 mm Thickness 0.06~0.08 mm Power 5V, 3A Communication Interface RS232 / RS485 / TTL Temperature 0~50 ℃ (14~122 ℉ ) Condition Humidity 10~90% RH (non-condensing) Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/...
-
Page 7: Operation
4. The printer should be restarted after setting. The selected setting item value is stored and effective. Setting Value Item Default Baud Rate (bps) 4800 9600 19200 38400 57600 115200 Print Direction direction Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/... -
Page 8: Chapter 2 Power And Communication
The RS232 level is compatible with Standard RS232. The default Baud rate is 9600bps, which can be changed by the button “SEL”, refer to the Button setting above. (1 start bit, 8 data bits, 1 stop bit). Figure 1-2 Serial Interface Diagram Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/... -
Page 9: Rs485 Interface
3. RS232 is using negative logic level, i.e. Logic “1” is -3 to -15V; Logic “0” is +3 to +15V 2.2.2 RS485 Interface The RS485 interface pin configurations are shown in below table: Name B (D-) A (D+) Shenzhen Brightek Printer Co., Ltd. http://en.weihuang.com.cn/...
