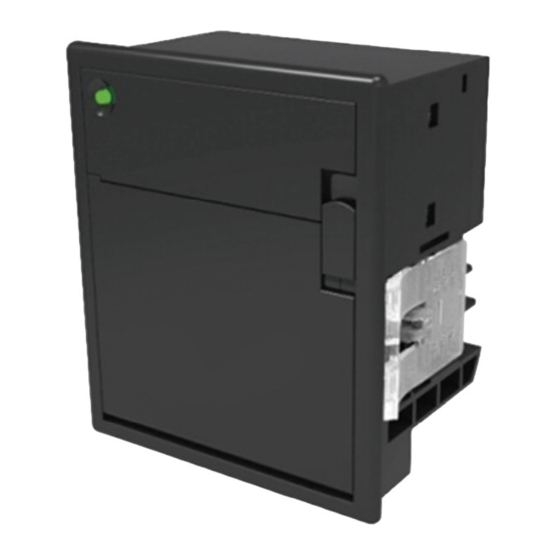

E39




QUICK INSTALL

快速安装









北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek E39

  • Page 1                 QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2 快速安装手册  ●打印机各部件一览 Printer Parts Names 1.指示灯/LF 键 Indicator Light/LF Button 5.固定架 Fastener 9.电源接口 Power Connector 2.纸仓盖 Paper Case Cover 6.滚轴 Platen Roller 10.数据接口 Interface Connector 3.顶轴 Axis 7.SET 键 SET Button 4.纸卷 Paper Roll 8.地线 GND   按钮开关的操作及指示灯 打印机上电后指示灯保持常亮状态,打印机缺纸时指示灯闪,不能接受数据。 正常上电后,LF 键为走纸键,SET 键无效。 自检测方式...
  • Page 3 快速安装手册  ●尺寸 Size     WH-E39 型尺寸 Product Size: 外型尺寸 Outline Dimension: 98mm×84mm×57mm 开口尺寸 Mounting Dimension: 78mm+0.5 X 92mm+0.5 嵌入深度 Inlaid Deepness: 54mm 注:请在开口尺寸要求的范围内开口,如开口尺寸过大会造成打印机与面板 固定不牢固。 Note: please open the hole within the mounting dimension, opening dimension beyond this range will cause insecure fixation between the printer and the panel.
  • Page 4 快速安装手册  ●安装 Installation   安装方法:  1、根据安装面板厚度调整固定架到面板的距离,见图一所示,用改锥拧固定架螺钉, 查看固定架上的标尺与壳体三角箭头指的数值,也就是固定架到面板的距离。 2、距离调整合适后将打印机直接插入面板孔内,见图二所示。 3、为了防止面板与固定架出现松懈,可按照图三所示,逆时针方向拧固定架螺钉,直到 固定架与面板卡紧为止。 (如面板与固定架的距离调整合适,此步可忽略) 所安装的面板厚度为 1.0~10.0mm 厚的金属板或塑料板。 Installation Method: 1 An arrow pointed the distance from the fastener to the front panel of printer as in Fig.1.Screw the fastener to adjust the distance according to thickness of the faceplate.
  • Page 5 快速安装手册  ●拆机 Dis-assembly   拆机方法: 1、用改锥顺时针方向拧两侧固定架螺丝 3~5 圈,见图一所示。 (面板卡固定架槽内的, 此步可忽略,相反固定架的边沿直接顶面板上撬不动的,用此步操作) 2、打开打印机纸仓盖,用一字改锥撬固定架,见图二所示;固定架卡槽脱离面板后再往 外抽打印机,两侧操作方法相同。 Dis-assembly Method: 1 Turn the screw clockwise round and round.as in Fig.1. 2 Open the paper case cover, and pry the fastener with slotted screwdriver as in Fig.2, then draw out the printer according Fig.3. http://www.whkj.com.cn ...
  • Page 6 快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 1 所示,箭头位置轻轻扣出旋转扳手,扣出后如图 2。 2.继续旋转扳手,这时打印头走纸轴与打印头分离,打开纸仓盖。 3.把打印纸装入,并拉出一截(超出一点撕纸牙齿),注意把纸放整齐,纸的方向为有药液一 面(光滑面)向上,如图 3。 4.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头,并把旋转 扳手推入复位。   5.接通打印机的电源,使机头转动,这时看一下纸是否走歪,待机或关上电源。   Replacing the Paper Roll 1. Unsheathe the circumrotated wrench from the position the arrow point to as shown in Fig.1 and circum-gyrate it until the paper cover opened as shown in Fig 2. 2.
  • Page 7 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.
  • Page 8   ●产品维护手册 一、打印机故障分析及排除 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色 比较浅或打印 电源电压低 检测打印机供电电源功率是否正常 一半 打印内容缺列 机头加热板有 关闭打印机电源,打开纸仓盖检查机头加热板上是否 或部分内容模 异物 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 糊 洗;划伤请返回厂家检修 没纸状态下, 测纸传感器有 关闭打印机电源,检查机头测纸传感器表面是否有异 机头还一直转 异物 物,如有异物,用医用棉签蘸无水酒精清洗 动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养...
