Carson MICROBRITE PLUS MM-300 Manual

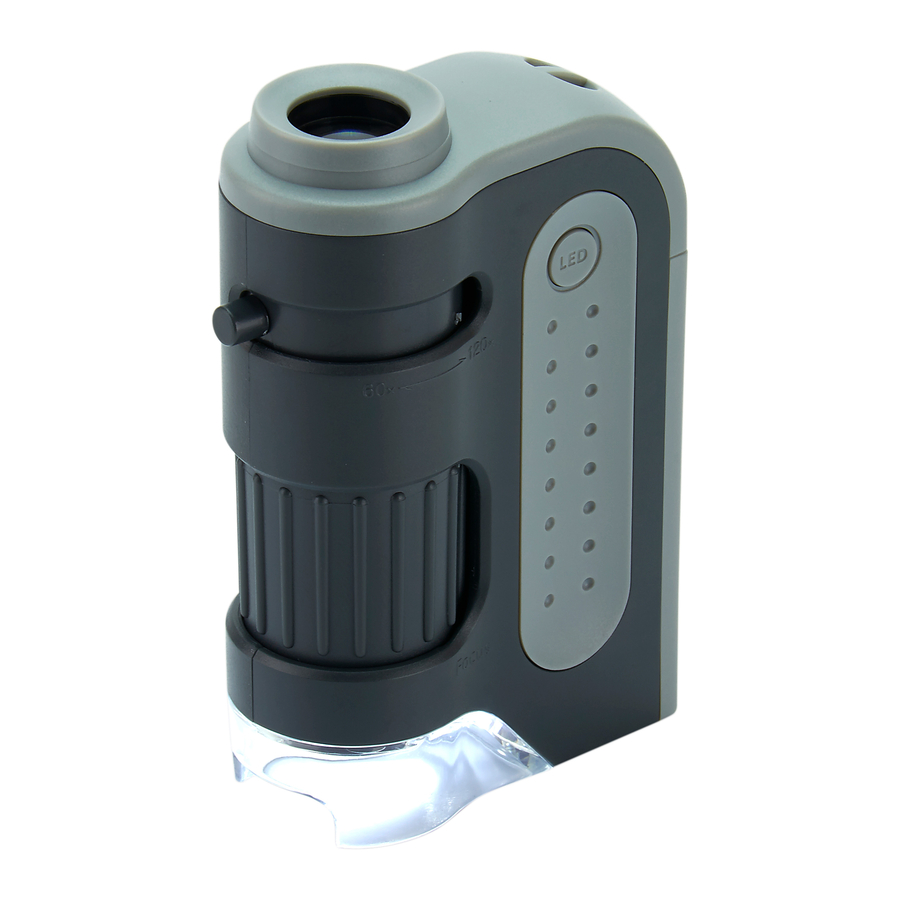

Product overview

Installing the battery

1. Slide open the battery door as shown below

2. Install 1 AA battery with the correct polarity.

3. Attach the battery door as shown below.


Using the device

1. Place the viewing object directly below the objective lens

2. Press the LED switch to turn on the LED.

3. Adjust the zooming dial to the desired level of magnification.

4. Rotate the focusing ring until the image is sharp and clear.

5. Turn off the LED at the end of the observation by pressing the LED switch .


Product specification

Warning

1. To avoid possible permanent eye damage, do not look at the sun or bright objects with the microscope.
2. To avoid possible permanent eye damage, do not place the lighted microscope directly upon human eye.
3. Remove the battery before storing the microscope for an extended period.
4. The device may get warm after extended period of use. This is normal and should not be considered as a defect.
5. Inspect all batteries for signs of corrosion or leakage. Do not expose to fire or excessive heat. Use alkaline batteries only, rechargeable batteries not recommended. Insert battery in the direction indicated.

Carson Optical • 2070 5th Avenue, Ronkonkoma, New York 11779 • U.S.A.
