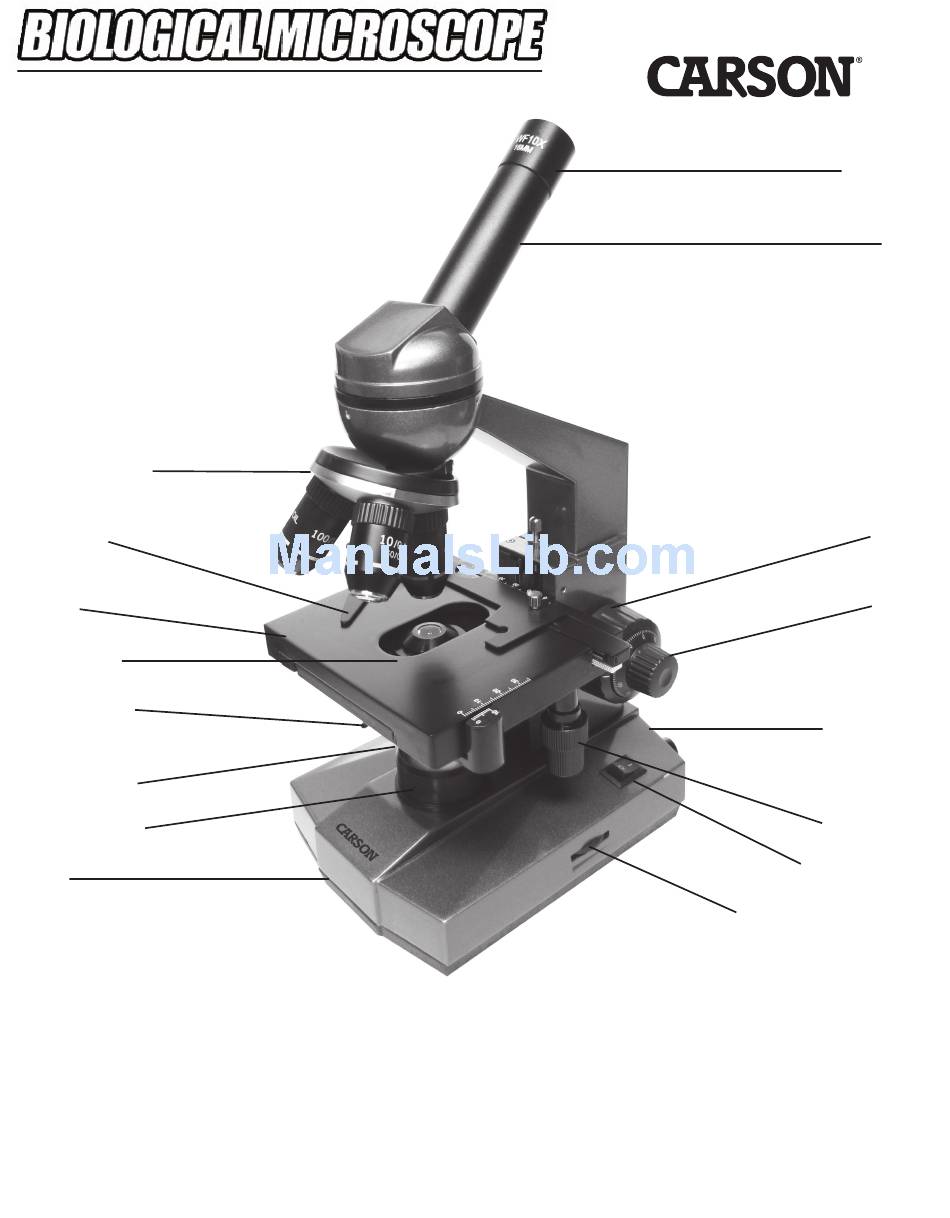

INSTRUCTION MANUAL | MS-100

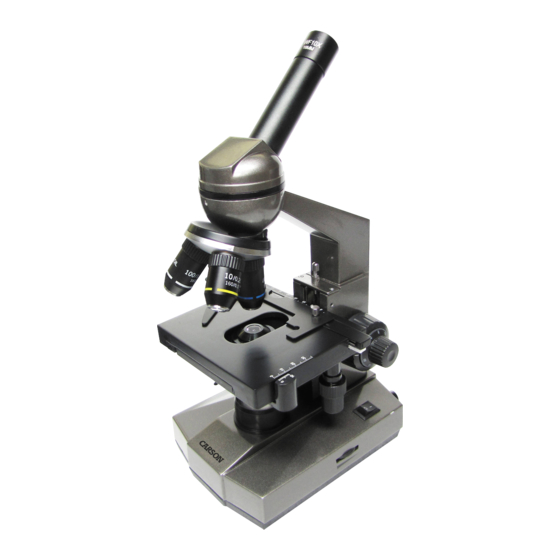

Standard Included Accessories:
10x Wide Field Eyepiece, Dust Cover,
& Blue Color Filter
Condenser Height Knob
(on left side, not shown)
Objective Lens
Turret
Slide Clip
Mechanical
Stage
Condenser
Diaphragm
With Iris Control
Filter Holder
Light Source
Base
Quick-Start Guide:
1. Place microscope on a secure surface.
2. I nsert the first end of the power cord into the microscope's power port on the rear bottom side of the microscope,
and plug the opposite end of the power cord into any standard 110V outlet.
3. Gently place the narrow end of the eyepiece into the draw tube.
4. Turn on the light source by turning the power switch to the on position.
5. Rotate the objective lens turret so that the first objective lens (10x labeled by a yellow line) is perpendicular to the stage.
6. P osition your desired slide on the mechanical stage and secure with slide clip. Use the stage knobs for front-back
(top knob) and left-right motion (lower knob) until your area of interest is located in the center of the stage.
Eyepiece
360°
Rotatable
Draw Tube
Coarse Focus
Knob
Fine Focus
Knob
Power Port
(on rear side)
Stage Knob
Power Switch
Light Intensity Knob
