zPix MM-740
Carson Optical
35 Gilpin Avenue, Hauppauge, N.Y. 11788-4723
Toll-free: 1-800-967-8427
Digital Microscope
Phone 631-963-5000 | Fax 631-427-6749
info@carsonoptical.com
Instruction Manual
www.carsonoptical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the zPix MM-740 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carson zPix MM-740

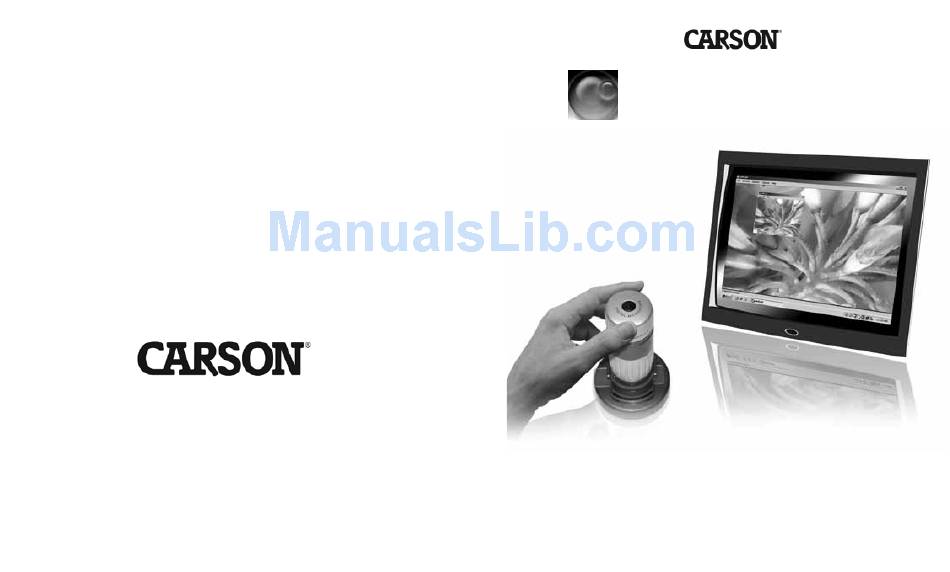

  • Page 1 MM-740 Carson Optical 35 Gilpin Avenue, Hauppauge, N.Y. 11788-4723 Toll-free: 1-800-967-8427 Digital Microscope Phone 631-963-5000 | Fax 631-427-6749 info@carsonoptical.com Instruction Manual www.carsonoptical.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Introduction Features Features Minimum System Requirements The zPix Digital Microscopeis a battery free ® For Windows based PC device to use with a computer via a USB port. Its ® For Mac OSX based PC objective is a 5x zoom lens enabling specimen to be ®...
  • Page 3: Minimum System Requirements

    Minimum System Requirements Package Contents For Windows based PC ® 1.8 GHz Intel / AMD Processor ® 256 mb RAM USB Version 2.0 CD ROM drive Free hard disk space of 10MB Windows XP SP2 or above, Windows Vista ® ®...

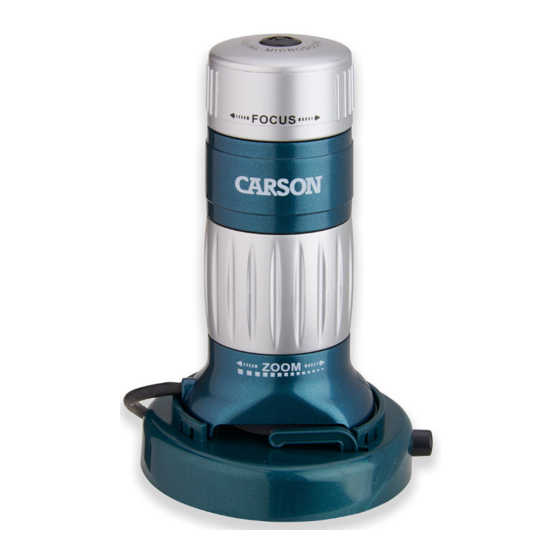

  • Page 4: Parts And Control Location

    Part and Control Location Operation Initialize the Product Place zPix directly on objects you wish to view or use the specimen stage to view specimen slides.Push down on the Specimen Slide Releasing Button (6) on the Specimen Stage (5) and place the Specimen Slide un- der the spring action clips.
  • Page 5 Adjust the position of the Specimen Slide to the Re-focus after zooming to ensure clear images. desired focal point. Rotate the Focusing Ring (2) clockwise or counter-clockwise until the image shown on the monitor is clear and sharp. Rotate the Zoom Control Ring (3) clockwise to To capture an image, press the Shutter Button (1) zoom in, or counter-clockwise to zoom out.
  • Page 6: Using The Zpix

    Using the zPix Record a Video For Windows ® 1. With Digital Viewer launched, select zPix comes with a simple companion software, “Capture” then “Start Capture” Digital Viewer for previewing, taking images and recording videos from the microscope on Windows platforms.
  • Page 7: Specifications

    For Mac OSX Based PC Specifications The included Digital Viewer Software is compatible Optical Specifications 36x - 176x @ 21” with Windows only. To use the microscope 46x - 227x @ 27” 36x - 176x @ 21” with Mac operating systems you will need to use 46x - 227x @ 27”...
  • Page 8: Care And Storage

    Warnings Care and Storage Never attempt to open or dismantle the zPix. • Clean the zPix casing with moistened cloth To avoid possible permanent eye damage, do not when necessary and then wipe it dry. Never place lighted zPix directly upon human eye. use chemical detergent to clean the zPix.
