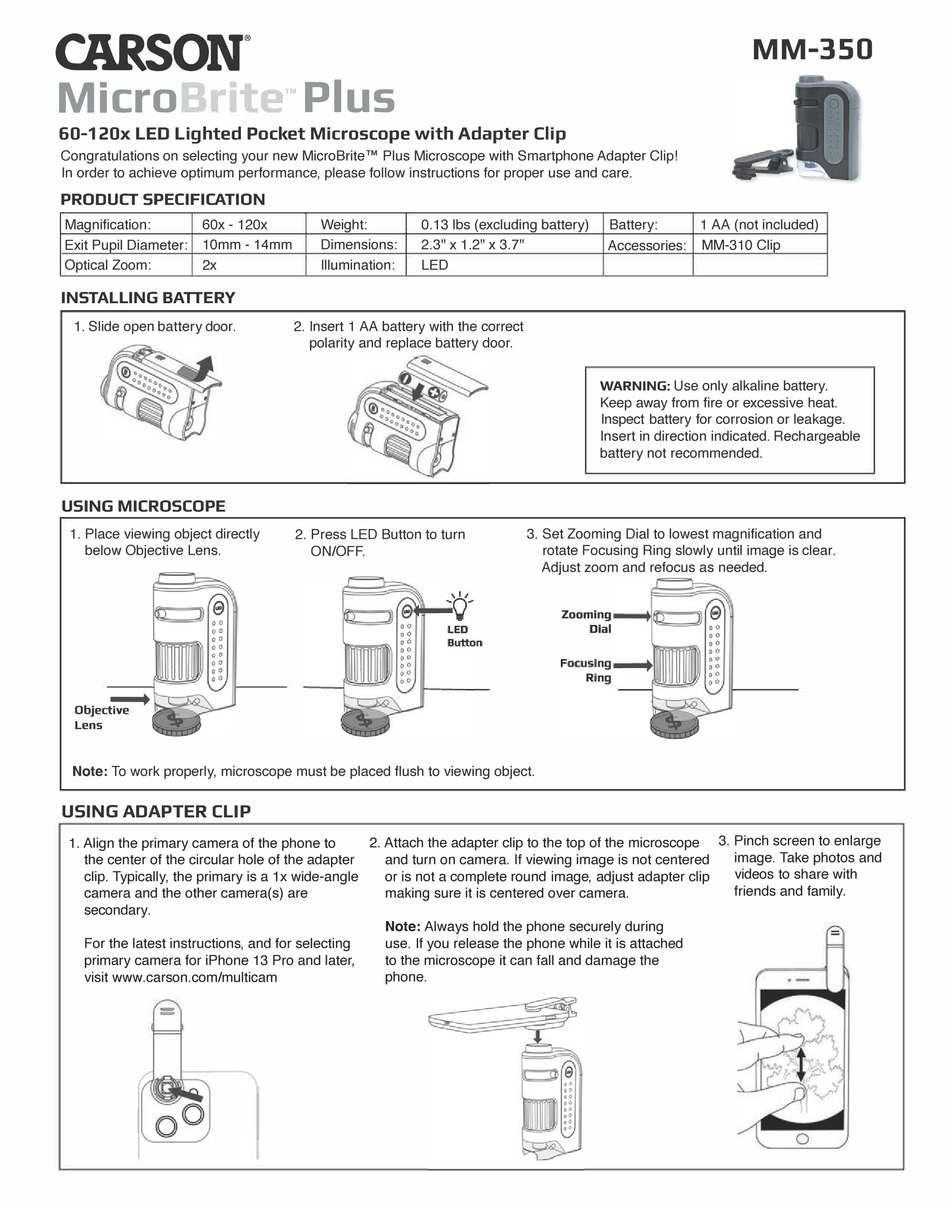

Carson MicroBrite Plus Instructions

CARSON
Micro

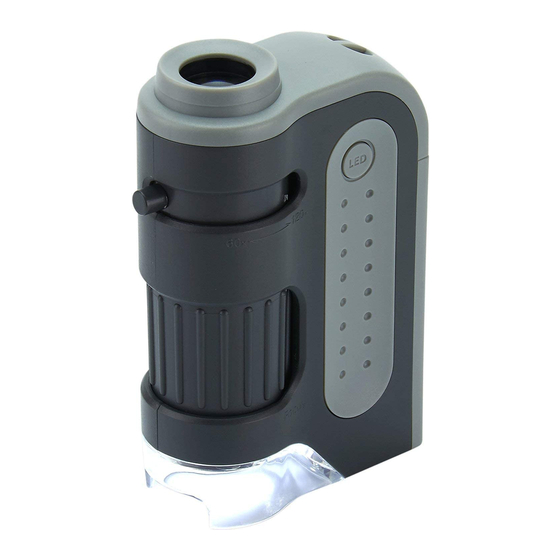

60-120x LED Lighted Pocket Microscope with Adapter Clip
Congratulations on selecting your new Micro Brite
In order to achieve optimum performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION
Magnification: 60x - 120x
Exit Pupil Diameter: 10mm - 14mm
2x
Optical Zoom:
INSTALLING BATTERY
1. Slide open battery door.
USING MICROSCOPE
1. Place viewing object directly
below Objective Lens.
--+
Objective
Lens
Note: To work properly, microscope must be placed flush to viewing object.
USING ADAPTER CLIP
1. Align the primary camera of the phone to
the center of the circular hole of the adapter
clip. Typically, the primary is a 1 x wide-angle
camera and the other camera(s) are
secondary.
For the latest instructions, and for selecting
primary camera for iPhone 13 Pro and later,
visit www.carson.com/multicam
®
Plus
fM
Plus Microscope with Smartphone Adapter Clip!
TM
Weight: 0.13 lbs (excluding battery)
Dimensions: 2.3" X 1.2" X 3.7"
LED
Illumination:
2. Insert 1 AA battery with the correct
polarity and replace battery door .
._;
2. Press LED Button to turn
ON/OFF.
2. Attach the adapter clip to the top of the microscope
and turn on camera. If viewing image is not centered
or is not a complete round image, adjust adapter clip
making sure it is centered over camera.
Note: Always hold the phone securely during
use. If you release the phone while it is attached
to the microscope it can fall and damage the
phone.
Battery: 1 AA (not included)
Accessories: MM-310 Clip
Use only alkaline battery.
WARNING:
Keep away from fire or excessive heat.
Inspect battery for corrosion or leakage.
Insert in direction indicated. Rechargeable
battery not recommended.
3. Set Zooming Dial to lowest magnification and
rotate Focusing Ring slowly until image is clear.
Adjust zoom and refocus as needed.
Zooming
Dial
MM-350
3. Pinch screen to enlarge
image. Take photos and
videos to share with
friends and family.
=
