Carson MM-380 Quick Start Manual

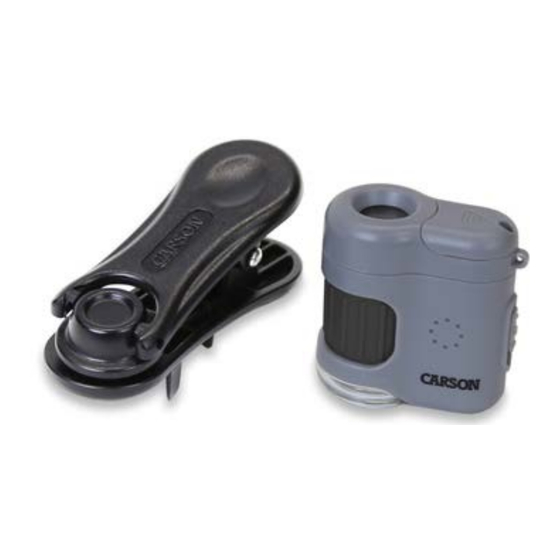

20x Microscope
With Universal Smartphone Clip
Congratulations on selecting your new 20x Microscope with Universal Smartphone Clip! In order to achieve optimum
performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION:
Magnification: 20x
Dimensions: 1.0" x 2.7" x 3.2"
Illumination: LED and UV Light
Batteries: 3 G12 batteries (included)
USING THE MICROSCOPE:
1. Place microscope directly on
subject and turn focus wheel
until image is clear.
ATTACHING CLIP TO PHONE:
Place clip on phone making
sure camera* is centered
inside circle on the
underside of clip.
*For help with dual
camera phones, visit
www.carson.com/multicam
FOCUSING SCREEN IMAGE:
Auto focus: Tap the screen in your camera app.
Manual focus: Turn the focus wheel on the microscope until the image is clear.
2. Slide switch:
• DOWN to activate the microscope LED
• UP to use the flashlight function
• Center to turn OFF
3. Press and hold UV button to use UV
Light.
ATTACHING MICROSCOPE TO CLIP:
Align microscope with
clip as shown. It will
be magnetically held
in place.
MM-380
1
