Zorb
™
81x Digital Microscope
Congratulations on selecting your new Zorb
achieve optimum performance, please follow instructions
for proper use and care.
PRODUCT SPECIFICATION:
81x (on a 32" Screen)
Magnification:
Resolution:
1600 x 1200 Pixels
Weight:
0.19 lbs
1.8" x 1.8" x 2.4"
Dimensions:
Accessory:
2 Viewing Adapters

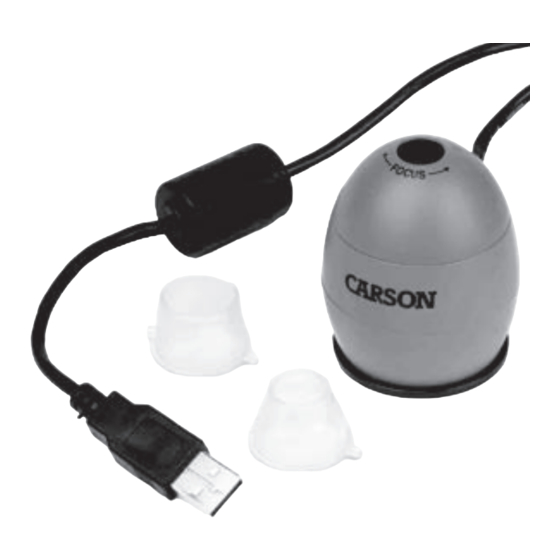

PACKAGE CONTENTS:
Digital Microscope
ATTACHING ADAPTER TO MICROSCOPE:
To view the images clearly, please use one of
the adaptors provided. Place one of the
adapters into the adapter slot located under
the main body. Lock by turning adapter in a
clockwise direction.
™
! In order to
OPTICAL SPECIFICATION:
Effective Magnification*
Image Sensor Format
Image Resolution
*Please note, the effective magnification is
aa combination of the optical system and
ahigh powered digital zoom based upon the
aabove screen sizes.
Flush View Adapter
(viewing flat objects)
Depth View Adapter
(viewing concave objects)
53x @ 21" Screen
61x @ 24" Screen
68x @ 27" Screen
81x @ 32" Screen
2.0M Pixel UXGA
CMOS
1600 x 1200 Pixels
(UXGA)
PRODUCT OVERVIEW:
Shutter Button
Ring
MM-500
POWER RATINGS:
5V DC 250mA
USB 2.0 / 3.0
Lens
Adapter
Slot
360°LED
Ring
USB Cable
Adapter
Slot
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson Zorb MM-500
Summary of Contents for Carson Zorb MM-500
- Page 1 MM-500 Zorb ™ 81x Digital Microscope Congratulations on selecting your new Zorb ™ ! In order to achieve optimum performance, please follow instructions for proper use and care. OPTICAL SPECIFICATION: PRODUCT SPECIFICATION: POWER RATINGS: 53x @ 21” Screen Effective Magnification* 81x (on a 32”...
- Page 2 DOWNLOAD AND CONNECT THE DEVICE: • Go to www.carson.com/software to download and install the latest Xploview software for your operating system. • Compatible with Mac and Windows • USB 2.0 / 3.0 required. No batteries required. • Connect device to a computer using the attached USB cable. The LED light will turn on indicating that the device is powered on.
- Page 3 • Do not touch the device with wet hands as it may damage the device, or cause an electric shock to the user. • Never attempt to open or dismantle the Digital Microscope. ˜°˛˝˙ˆˇ˘ˇ˘ˇ ˜°˛˝˙ˆ˛ˇ˘ˇˇˇ˛˝˛ˆˇ ˛ˇ ˇ˛˙˛ˆ ˛˛ ˇ˛ ˛ ˇ˛ ˝˛˙˛ ˇ˛˝˙ˆ °˙ ˙˙ ˆ ˆ˙ ˙˙ ˇˆ ˆ˙ ˙˙ For warranty information, please visit www.carson.com/warranty www.carson.com Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: 631-963-5000...
