Carson MS-040 Instruction Manual

Biological microscope

Download this manual

INSTRUCTION MANUAL | MS-040

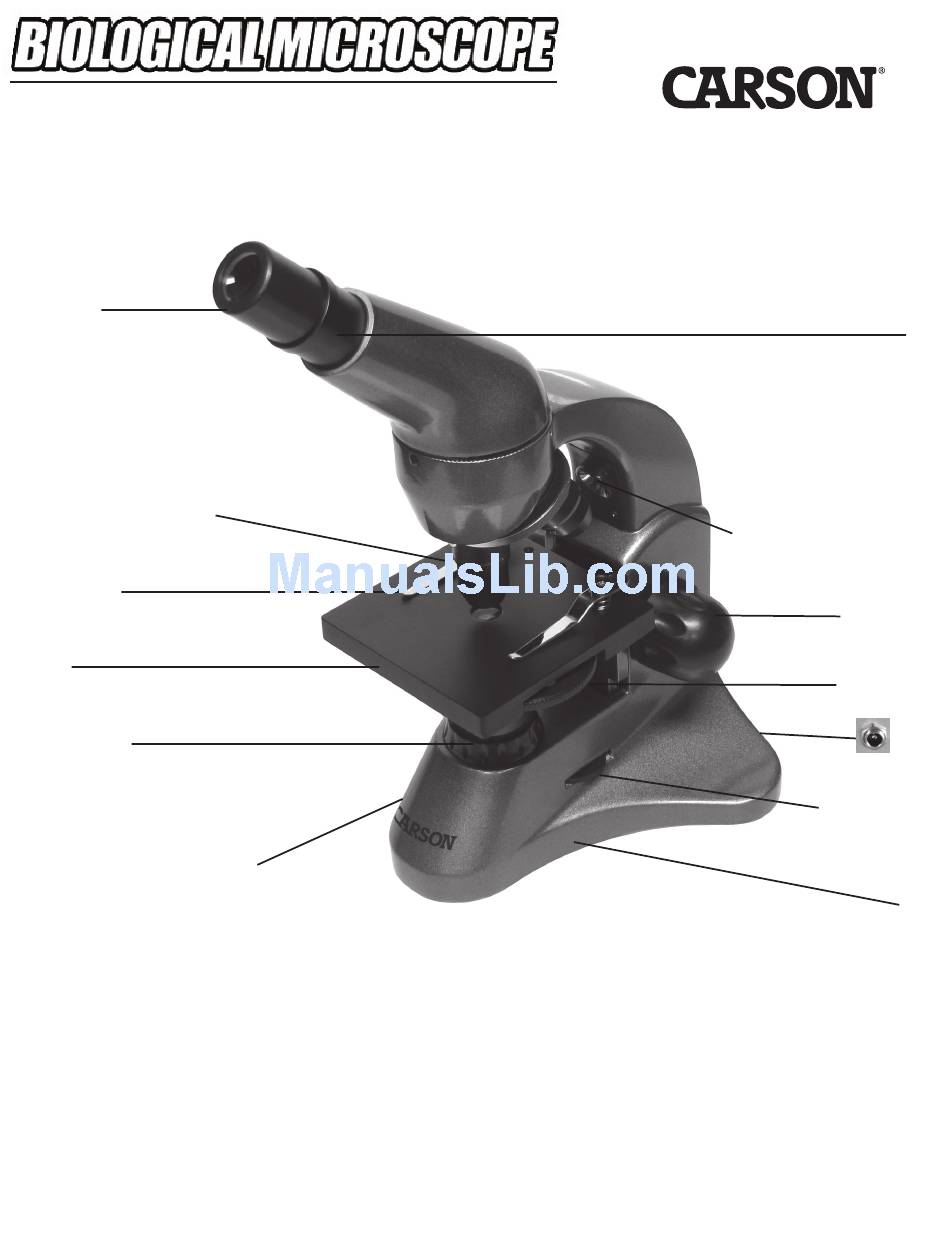

Standard Included Accessories: 10x Wide Field Eyepiece

Eyepiece

Objective Lens Turret

Stage Clips

Stage

Transmitted

Light Source

Intensity Knob for

Transmitted Light Source

(on opposite side)

Quick-Start Guide:

1. P lace microscope on a secure surface. You may rotate the draw tube to the front facing position or any preferred

360° position.

2. I nsert the round end of the power cord into the microscope's power port on the rear bottom side of the micro-

scope, and plug the opposite end of the power cord into any standard 110V outlet.

3. Gently place the narrow end of the eyepiece into the draw tube.

4. R otate the objective lens turret so that the first objective lens (4x labeled by a red line) is perpendicular to the stage.

5. Position your desired specimen on the stage, with your area of interest located in the center of the stage.

6. Use the stage clips to securely hold down your slide or specimen.

360°

Rotatable

Draw Tube

Reflective Light Source

Focus Knob

Filter Wheel

Power

Intensity Knob

for Reflective

Light Source

Base
