MagniScope
Congratulations on selecting your new MagniScope! In order to achieve optimum
performance, please follow instructions for proper use and care.
FOR USE AS A MONOCULAR:
1. Monocular portion should be detached from
acrylic base (loupe) portion.
2. Look through the eyecup (eyeglass wearers
can fold/roll down the eyecup to increase field
of view).
3. Turn focus wheel until object you are viewing
is sharp and clear.
FOR USE AS A LOUPE:
1. Loupe portion should be detached from the
monocular.
2. Turn on LED light by pressing the red button
on the side of the battery compartment.
3. Place acrylic base directly on the viewing
surface.
4. Hold your eye directly above the loupe as
close to the lens surface as possible.
5. Focus using the focus wheel above the acrylic
base stand.

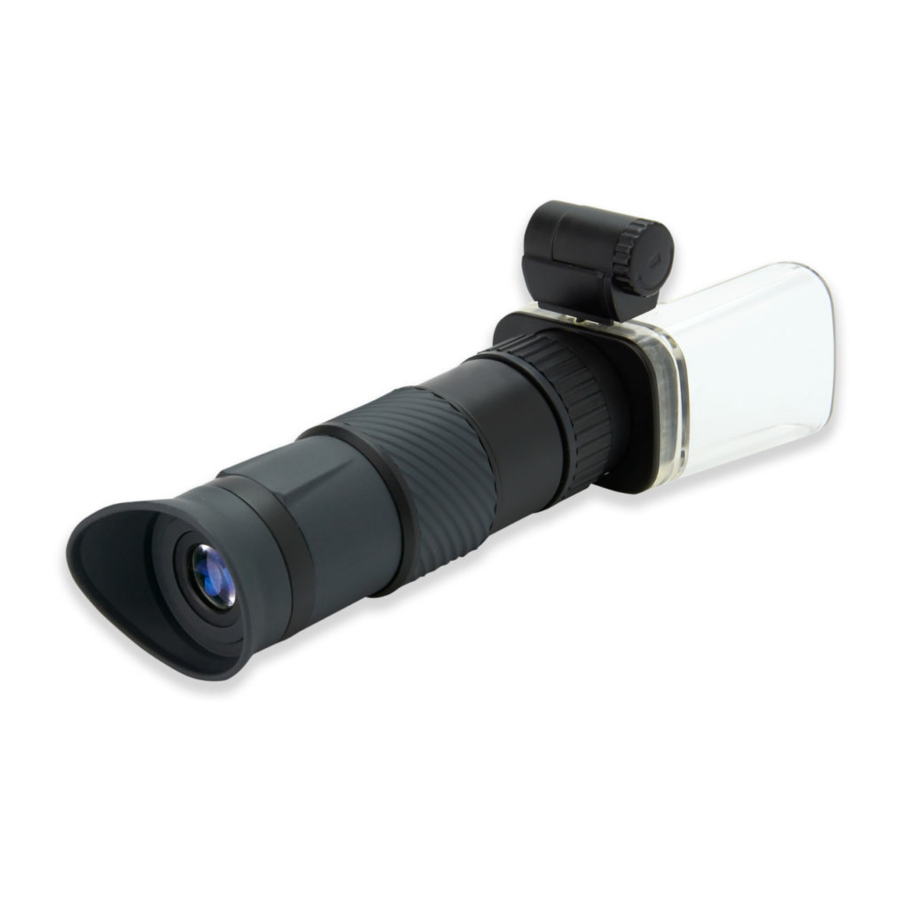

FOR USE AS A MICROSCOPE:
1. Twist and thread together the monocular and
acrylic base (loupe) portions.
2. Turn on LED light by pressing the red button
on the side of the battery compartment.
3. Focus using the focus wheel located on the
monocular portion of the item.
TM
REPLACING THE BATTERIES:
1. Twist of battery cap located on the battery
2. Remove spent batteries and replace with 3
3. Place into battery compartment with positive
compartment side opposite of the red button.
fresh LR44 button cell batteries.
side up and replace cover.
MA-60
