Deerc D60 Manual

MAINTENANCE

  1. Clean the drone after each use with a clean, soft cloth.
  2. Avoid prolonged exposure to direct sunlight and avoid heat buildup on the drone or batteries.
  3. This device is not waterproof and must not be submerged or subjected to water under any circumstance. Failure to keep the device completely dry will result in failure and permanent damage to the unit. Be aware that although it might be dry where you are, droplets of rain or mist from a river or waterfall could damage your drone where it is flying.
  4. Frequently check the charging plug and other accessories for signs of damage. If any part of the device or cables is damaged, avoid use or charging until the damaged parts are replaced.

PACKAGE CONTENTS

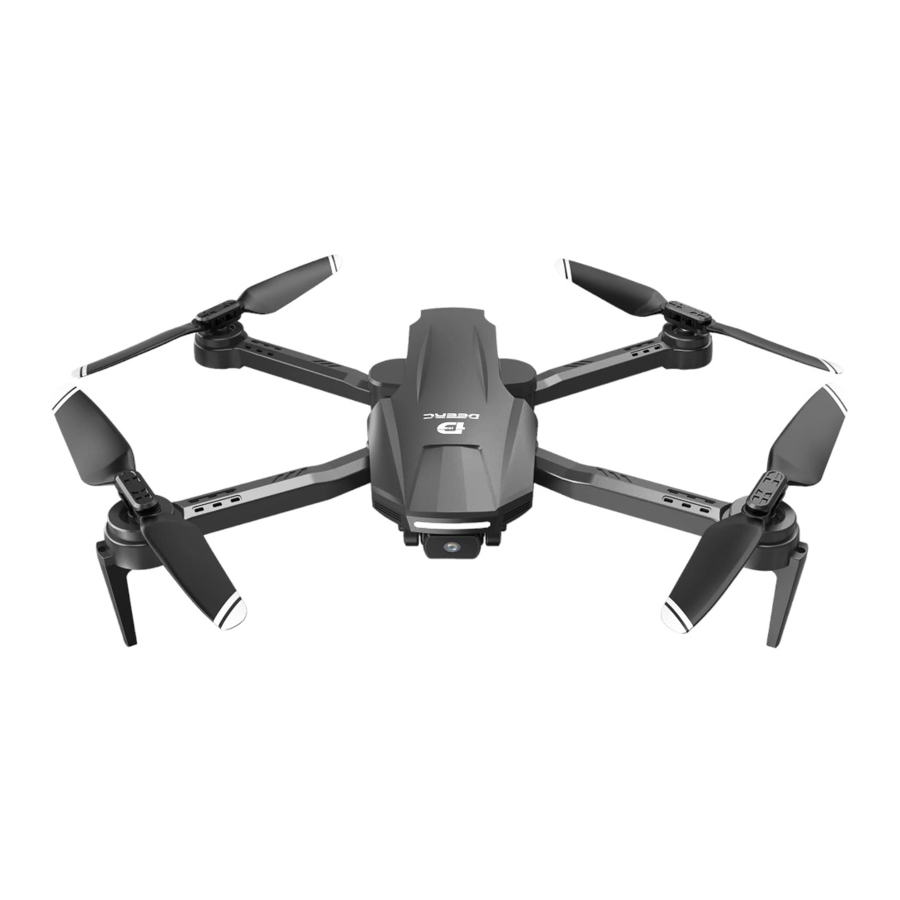

PRODUCT DETAILS

PRODUCT DETAILS

TRANSMITTER DETAILS

TRANSMITTER DETAILS

JOYSTICK MODE

MODE 2

(Left hand throttle MODE 2 will be the default setting.)
JOYSTICK MODE - USING MODE 2

MODE 1

JOYSTICK MODE - USING MODE 1
To enter Mode 1, long press the Speed Switch button while turning on the transmitter. (Please do not release the Speed Switch button until the transmitter is powered on.)

INSTALLATION

Propellers

The propeller and the motor shaft marked with the same letter should be connected together (both are marked with the letter either A or B). Then lock the propeller to the motor shaft with a screw (See Pics 1-2)
INSTALLATION - Installing the Propellers

caution

  • Install the propellers carefully to prevent accidental scratches.
  • Please check that the propellers are properly installed and tightened before each flight.

Phone Holder

  1. Pull out the phone holder upwards completely (Pic. 3).
  2. Tilt the holder 30 degrees towards you, and then you will hear a click sound (Pic. 4).
  3. Rotate and fix the support board in place (Pic. 5).
  4. Adjust the phone holder upward or downward according to the size of your phone (Pic. 6).

Unit Battery


Installation: Push the battery correctly into the drone battery compartment. Make sure the battery is firmly installed. (Pic. 7)


Removal: Press the lock button on the battery, and pull the battery out from the fuselage. (Pic. 8)

Transmitter Battery

INSTALLATION - Inserting the Transmitter Battery
Open the battery cover on the back of the transmitter, insert the two AA batteries (Not included) into the battery compartment, and close the battery cover to complete the installation.

caution

  • When installing the batteries, please pay attention to the positive and negative polarity of the battery to ensure the correct installation of the batteries.
  • Do not mix old and new batteries.
  • When the batteries of the transmitter run low, the transmitter will start beeping, and its indicator light will blink.

CHARGING

CHARGING THE UNIT

  1. When the drone battery runs low, the indicator lights on the drone will blink continuously.
  2. Connect the battery with the USB charging cable.
  3. Plug the USB charging cable into a USB charging port on a power bank or a USB adapter (5V/1A).
  4. When the battery is charging, the indicator light on the USB charging cable is red.
    When the battery is charged, the indicator light on the USB charging cable turns green.
  5. The charging time is about 160 minutes.

caution

  • Before charging, please read the instructions in the "Use of Battery" section of the "Safety Guidelines" carefully!
  • DO NOT charge a battery immediately after a flight as the temperature may be too high. Please wait until it cools down to room temperature before charging again.

USING THE APP

Download APP

iOS

Android APP on Google play

Scan the QR code, corresponding to either App Store or Google Play Store, and download the Deerc FPV app for free.
Required Operating Systems: iOS 12.0 or later/Android 4.4 or later.

play.google.com

itunes.apple.com

Connect to Wi-Fi

Connect your phone to the Wi-Fi network created by the drone. You can check the drone's status on the Deerc FPV App.

  1. Make sure to turn off Bluetooth, Mobile Data, and VPN. Enter your phone's Wi-Fi settings and click Wi-Fi to search for the Wi-Fi of the drone.
    (Make sure to turn on the drone before going to the Wi-Fi settings on your phone)
  2. Select the Wi-Fi network: DeercFPV-******.
  3. Wait for a couple of seconds for your phone to connect to the drone's Wi-Fi.
  4. Enter the Deerc FPV application.
    > The connection between your phone and the drone is established automatically.

Attention: The Wi-Fi network created by the drone does not access the Internet.

OPERATION GUIDE

All of the following operations on this manual uses MODE 2.

Pairing

  1. Long press the power switch to turn on the drone. The indicator lights of the drone will keep flashing.
  2. Place the drone on a flat and level surface with the head forward and the tail facing towards the pilot.
    Pairing - Step 1 - Place the unit on level surface
  3. Short press the power switch button on the transmitter to turn it on, and you will hear a "Di" sound, then the indicator lights on the transmitter will flash.
    Pairing - Step 2
  4. Push the left joystick up then down to pair the drone with the transmitter. The indicator lights on the drone and the transmitter will turn solid if the drone is paired successfully.

Calibrating the Gyro

OPERATION GUIDE - Calibrating the Gyro
Long press the button on the transmitter to calibrate the gyro. The indicator lights on the drone will blink, then turn solid, and the transmitter will send out a long "Di" sound, which indicates that the calibration is

Tip: To ensure a stable flight, we suggest that the pilot calibrates the gyro every time after pairing the drone and after a crash.

Unlocking/Locking the Motors


Unlocking: Simultaneously push the left joystick to the bottom right corner and the right joystick to the bottom left corner. The motors will rotate, and the drone is unlocked.

Locking: Repeat the operation, the motors will stop rotating immediately and the drone locks.

One Key Takeoff/Landing

Please unlock the motors before takeoff.
OPERATION GUIDE - One Key Takeoff/Landing

  1. Short press the One Key Takeoff/Landing button, the drone will take off automatically and hover at 4 feet. Now you can control this drone by using the joysticks.
  2. When the drone is flying, short press the same button again, the drone will automatically land on the ground.

FUNCTION DETAILS

Speed Switch

FUNCTION DETAILS - Using Speed Switch
This drone comes with 3 speed modes (Low/Medium/High). Short press the Speed Switch button on the transmitter to switch the speed.
A "Di" tone indicates Low Speed. A "DiDi" tone indicates Medium Speed. A "DiDiDi" tone indicates High Speed. (The Low Speed is the default speed mode)

Trimmer

FUNCTION DETAILS - F/B Sideways Drift Trim
F/B Sideways Drift Trim: If the drone tends to drift forward, press down the Trimmer button and do not release it while pushing the right joystick down to re-balance the drone. If the drone tends to drift backward, press down the Trimmer button and do not release it while pushing the right joystick up to re-balance the drone.

FUNCTION DETAILS - L/R Sideways Drift Trim
L/R Sideways Drift Trim: If the drone tends to drift left, press down the Trimmer button and do not release it while pushing the right joystick right to re-balance the drone. If the drone tends to drift right, press down the Trimmer button and do not release it while pushing the right joystick left to re-balance the drone.

Emergency Stop

caution The Emergency Stop function should only be used in an emergency during the flight to avoid any damage or injury.

FUNCTION DETAILS - Emergency Stop
Long press the upper left and upper right buttons of the transmitter at the same time. The motors will stop immediately.

Attention: Be aware that you risk breakage of the drone if it falls from a large distance or hits anything at a high rate of speed.

Altitude-Hold Function

The drone is designed with an altitude-hold function to maintain its altitude after releasing the left joystick. (The left joystick will automatically spring back to the middle)
FUNCTION DETAILS - Using Altitude-Hold Function

Take Photo/Record Video

FUNCTION DETAILS - Taking Photo/Recording Video

Take Photo: Short press the Take Photo/Record Video button, the transmitter sends out one beep, which indicates that the camera has taken one photo successfully.

Record Video: Long press the Video button on the transmitter. You will hear two beeps which means the recording has started. Long press again to exit the recording, and you will hear a long beep from the transmitter.

Camera Angle Adjustment

During the flight, you can dial the wheel left/right to tilt the camera up/down. (The camera has a 90° tilt range.)
FUNCTION DETAILS - Camera Angle Adjustment

High-Speed Rotation

FUNCTION DETAILS - High-Speed Rotation
During the flight, short press the High-Speed Rotation button, the transmitter will make a "Di" sound, which indicates that the drone enters the High-Speed Rotation function. The drone will exit the High-Speed Rotation function automatically after 10 seconds, or you can also push the right joystick in any direction to stop the rotation.

Circle Fly

FUNCTION DETAILS - Circle Fly
During the flight, long press the Circle Fly button, the transmitter will make a long "Di" sound, which indicates that the drone enters the Circle Fly. This drone will exit the Circle Fly function automatically after 10 seconds, or you can also push the right joystick in any direction to exit the Circle Fly.

Headless Mode

caution Please familiarize yourself with the Headless Mode function first before using this mode. Otherwise, it is easy to lose the drone and cause unnecessary loss.

FUNCTION DETAILS - Using Headless Mode

  1. Short press the Headless Mode button on the transmitter. In Headless Mode, the indicator lights of the drone will keep on flashing, and the transmitter will constantly beep.
  2. Short press the Headless Mode button again, and you will hear two beeps from the transmitter, which indicates that the drone has exited the Headless Mode.

FUNCTION DETAILS - Note on Using the Headless Mode
Please make the pilot stays facing the same direction that the drone head faces at takeoff.

While in Headless Mode, pushing the right joystick forward will make it fly in the direction that the head of the drone faces when it takes off. To make sure the pilot can tell the drone's direction during the flight, we recommend that pilot stays facing the same direction that the drone head faces at takeoff. By doing so, it is ensured that when the pilot pushes the right joystick forward/backward, the drone will fly forward/backward toward the pilot. If the pilot pushes the right joystick left/right, the drone will move left/right relative to the pilot.

SPECIFICATIONS

  • DRONE
    Model: D60
    Weight: 166g/5.86oz
    Max Flight Time: 22 minutes (per battery)
    Operating Temperature Range: 32° to 104°F (0° to 40°C)
    Size: 332*234*60 mm (Unfolded)
    145*81*60mm (Folded)
  • DRONE BATTERY
    Capacity: 1900mAh
    Voltage: 3.8V
    Energy: 7.22 Wh
    Battery Type: Lithium-ion Polymer Battery
    Charging Temperature Range: 41° to 104°F (5° to 40°C)
    Charging Time: 160 minutes (depends on charging power and remaining battery power)
  • TRANSMITTER
    Operating Frequency: 2445-2481MHz
    Max Flight Distance: 262 feet/80m (outdoors and unobstructed)
    Operating Temperature Range: 32° to 104°F (0° to 40°C)
    Battery Type: 2×1.5V AA Battery (not included)
  • CAMERA
    Operating Frequency: 2412-2472MHz
    Photo Resolution: HD1920×1080P
    Video Resolution: HD1280×720P@25 fps
    Lens: FOV 60°
    Controllable Range: -90° to 0°
    Transmission Distance Range: 197feet/60m (outdoors and unobstructed)
    Photo Formats: JPEG
    Video Formats: AVI/MP4
    Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • USB CHARGING CABLE
    Input: 5 V/1A
    Rated Power: ≤5W

SAFETY GUIDELINES

Check Before Use

  1. This product is a high-precision drone that integrates various electronic stability and control mechanisms. Please be sure to configure this drone carefully and correctly to ensure safe, accident-free operation.
  2. Ensure that the batteries of the drone and transmitter are clean, undamaged, and fully charged before every use.
  3. Ensure that all the propellers are intact and are installed in the correct orientation.
  4. Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.

Flight Environment

Flight Environment - Places to Avoid
Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airports, or bodies of water.
DO NOT fly near strong electromagnetic sources such as power lines and base stations, affecting the onboard compass.

Flight Environment - Avoiding an adverse weather
DO NOT use this drone in adverse weather conditions like rain, snow, fog, and wind.

Operation Requirements

  1. DO NOT use this product to follow any moving vehicles.
  2. During the flight, turn off the motors only in an emergency.
  3. When the battery runs low, return the drone to your starting point.
  4. DO NOT use this product if you feel tired, take medicine or feel unwell and drink alcohol.
  5. Be aware of the volume of noise that the drone produces. Please ensure to keep your distance to avoid ear damage.
  6. Stay away from the rotating propellers and motors.
  7. DO NOT fly in any spaces where drones are prohibited. Please respect people's right to privacy by not flying your drone close to others.

Use of Battery

  1. Please ensure batteries are fitted in the correct orientation as shown in the instruction manual.
  2. burn hazard Avoid short circuits by fitting the batteries correctly and do not crush or squeeze the batteries as this could cause the risk of a fire or explosion.
  3. DO NOT mix new and old batteries as this can lead to poor performance of the product.
  4. Please dispose of used batteries carefully, do not litter, and recycle where ever possible.
  5. DO NOT expose dead batteries to heat or fire, or they may explode.
  6. If the device is not going to be used for an extended period of time, please remove batteries to prevent potential damage to the drone from battery leakage.
  7. Only use the USB charging cable that comes with the drone to charge the battery.
  8. DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have different voltages.
  9. DO NOT attempt to disassemble or modify the battery in any way
  10. DO NOT use the battery if it gives off an odor, generates heat, becomes discolored, deformed, or appears abnormal in any way. If any of these situations occur while the battery is in use or being charged, remove it from the device or charger immediately and discontinue use.
  11. DO NOT pierce the battery casing with a nail or any other sharp object. Break it open with a hammer, or step on it! Dispose or recycle this battery as it may cause personal injury or damage to your drone.
  12. Always charge the batteries on a fireproof surface and away from combustible materials. DO NOT charge on surfaces that can catch fire, which includes: wood, cloth, carpet.
  13. DO NOT immerse the battery in water or get it wet.
  14. DO NOT solder battery terminal in any way.
  15. Keep batteries out of reach of children or pets.
  16. DO NOT short-circuit the battery by connecting wires or any other metal object to the positive(+) and negative(-) terminals.
