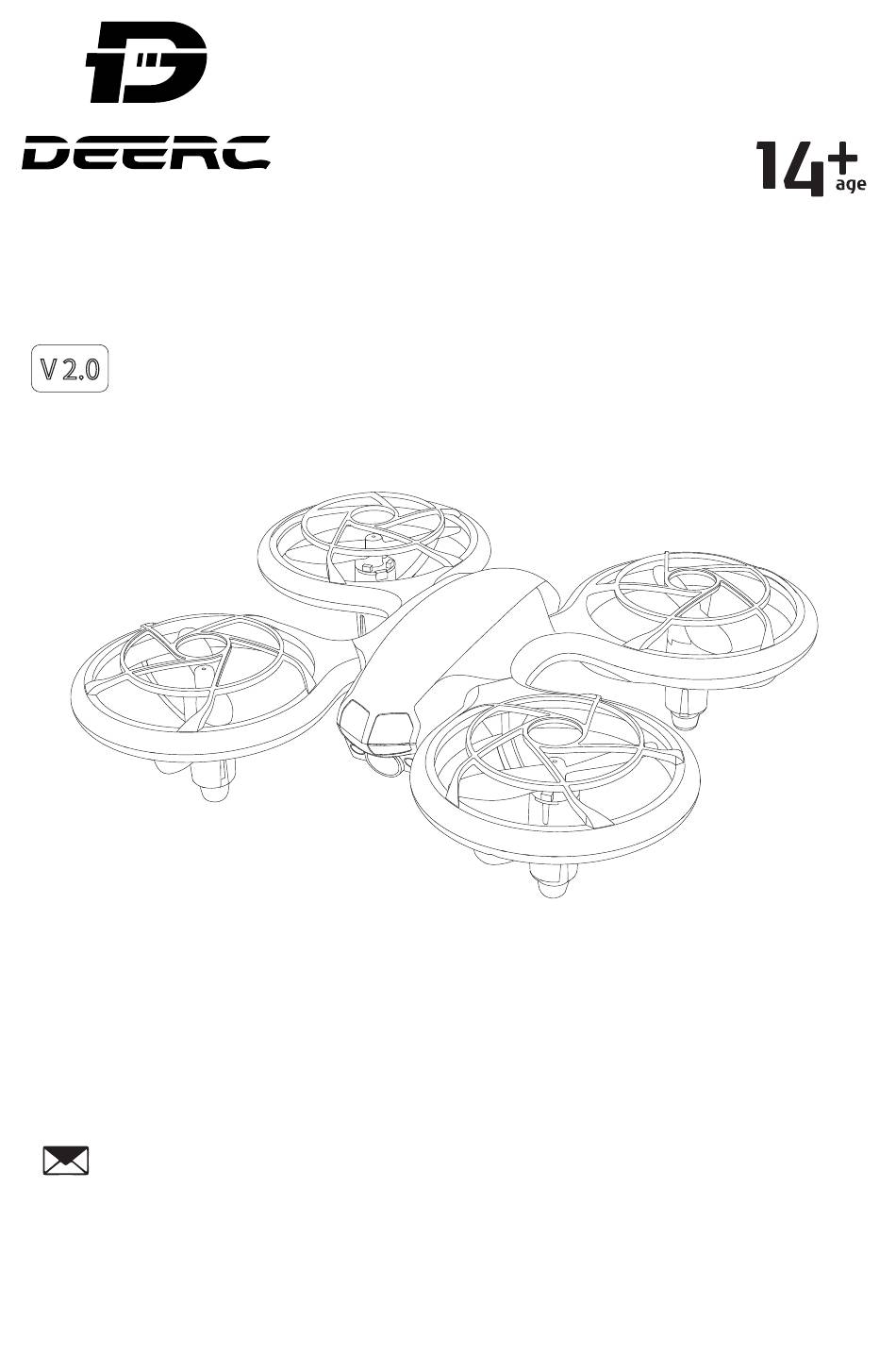

- Page 1 Instructions For Use V 2.0 usa@deerc.com (USA) eu@deerc.com (EU)
-
Page 3: Table Of Contents
Contents 1.0 Disclaimer & Warning ................. 2.0 Safety Guidelines .................. 3.0 Maintenance ..................4.0 Package Contents ................. 5.0 Drone Details ..................6.0 Transmitter Functions ................. 7.0 Joystick Mode ..................8.0 Installation Propeller ....................Drone Battery ..................Phone Holder ..................9.0 Charging ....................10.0 Operation Guide Download App .................. -
Page 4: Disclaimer & Warning
Any personal injury, property damage, legal disputes and all other adverse events caused by the violation of any of the safety instructions or due to any other factor, WILL NOT be Deerc’s responsi- bility. 2.0 SAFETY GUIDELINES 2.1 Check Before Use... - Page 5 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 6 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ When the battery runs low, return the drone back to your starting point.
- Page 7 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have different voltage.
-
Page 8: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 9: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propeller Screwdriver Cable Instructions For Use V 2.0 usa@deerc.com (USA) eu@deerc.com (EU) Instructions For Phone Holder Propeller Spanner... -
Page 10: Drone Details
5.0 DRONE DETAILS Propeller B Propeller A Propeller A Propeller B Camera Drone Battery Power Switch... -
Page 11: Transmitter Functions
6.0 TRANSMITTER FUNCTIONS Power Indicator Record Video Take Photo (Short Press) (Short Press) /Circle Fly Trimmer (Long Press) (Long Press) Right Joystick/ Left Joystick/ 360° Flip Speed Switch Light Switch One Key Takeoff/ Landing (Short Press) Headless Mode (Long Press) Power Switch Battery Cover Battery... -
Page 12: Joystick Mode
7.0 JOYSTICK MODE 7.1 MODE 2 (Default Setting) Left Joystick Right Joystick Ascend Forward Descend Backward Down Down Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right 7.2 MODE 1 To enter MODE 1, turn on the transmitter while holding the “Take Photo”... -
Page 13: Installation Propeller
8.0 INSTALLATION 8.1 Propeller HEAD Installation: See illustration above, connect each propeller to its corresponding motor shaft, either position “A/B”. Install the propeller to the motor shaft and press into place. Attention: Pay attention to the “A” “B” printed on each propeller. -
Page 14: Drone Battery
8.2 Drone Battery Installation: As shown in the figure above, press and hold the sides of the battery, then install the battery to the battery compartment. When you hear a click, the battery is installed. Removal: As shown in the figure above, press and hold the sides of the battery and lift it up to remove the battery. -
Page 15: Phone Holder
8.3 Phone Holder ① Remove the dust cover. ② Insert the phone holder into a slot on the top of the transmitter. ① ② ③ Open the phone holder and insert the phone. -12-... -
Page 16: Charging
9.0 CHARGING USB Adapter (5V/2A) Power Bank ① Connect the battery with the USB Charging Cable. ② Plug the USB Charging Cable into a USB charging port on power bank or USB adapter (5V/2A). ③ Charging time: about 70 minutes. ④... -
Page 17: Operation Guide Download App
10.0 OPERATION GUIDE 10.1 Download APP Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store and download the DE FPV app for free. Required Operating Systems: iOS 9.0 or later/Android 5.1 or later. 10.2 Connect to Wi-Fi Connect your phone to the Wi-Fi network created by the drone. -
Page 18: Pairing
All of the following operations on this manual uses MODE 2. 10.3 Pairing ① Long press the Power Switch Button to turn on the drone. HEAD ② Place the drone on a flat and level surface with the head forward and the tail facing towards the pilot. -
Page 19: Calibrate The Gyro
10.4 Calibrate the Gyro As shown in the figure above, push the left and right joystick simultane- ously to the lower left corner to calibrate the gyro. The lights on the drone will blink quickly and turn solid, then 2 beeps will be heard from the transmitter that indicates the calibration is completed. -
Page 20: Functions Details Speed Switch
11.0 FUNCTIONS DETAILS 11.1 Speed Switch This drone comes with 3 speed modes (Low/Medium/High). Press in the Left Joystick to switch the speed. Increase or decrease one speed at a time. A “Di” tone indicates Low Speed, a “DiDi” tone indicates Medium Speed and a “DiDiDi”... -
Page 21: Trimmer
11.3 Trimmer F/B Sideward Fly Trim: If the drone tends to drift forward, hold down the Take Photo button and do not release it while pushing the direction joystick down to balance the drone. If the drone tends to drift backwards, hold down the Take Photo button and do not release it while pushing the direction joystick up to balance the drone. -
Page 22: 360° Flip
11.4 360° Flip 10 Feet When you get familiar with all the functions of the drone, you can try this amazing flip mode. When you fly the drone at least 10 feet, press in the Right Joystick to enter the 360° Flip, then push the right joystick Forward/Backward or Left/Right, and the drone will do a flip towards the corresponding direction. -
Page 23: Circle Fly
11.5 Circle Fly Long Press During the flight, long press the Circle Fly button, the transmitter will make a long “Di” sound, which indicates that the drone enter the Circle Fly. Exit the Circle Fly mode by long pressing the same button again. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11.6 Light Switch Short press the Light Switch button once you can change the light... -
Page 24: Take Photo/Record Video
11.7 Take Photo/Record Video Take Photo: Short press the Take Photo button on the upper left of the transmitter to take pictures. One beep can be heard from the transmit- ter that indicate the camera has successfully taken a picture. Record Video: Short press the Record Video button on the upper right of the transmitter, one beep from the transmitter will be heard. -
Page 25: Headless Mode
11.8 Headless Mode 1. After pairing/calibration, long press the Headless Mode button on the transmitter, and the transmitter will send out beeps continuously which indicates the drone is in Headless Mode. 2. Long press the Headless Mode button again, and you will hear 2 beeps which indicates the drone exits the Headless Mode. -
Page 26: Rotate To Fly Back
11.9 Rotate to Fly Back The drone is designed with Rotate to Fly Back. Throwing it out at a horizontal angle, and it will take off and return automatically. ① Throw it out at a horizontal angle ② Catching it by hand Follow the steps as below to start the Rotate to Fly Back: 1) Turn on the drone after, short press the Power Switch twice at a horizontal angle. -
Page 27: Altitude-Hold Function
11.10 Altitude-Hold FunctionN The drone is designed with altitude-hold function so the drone can maintain its altitude after you release the left joystick ( the left joystick will automatically spring back to the middle ). -24-... -
Page 28: Specification
12.0 SPECIFICATIONS DRONE Model: D23 Weight: 53g/1.87oz Max Flight Time: 7 minutes (per battery) Motor Model: 716 Operating Temperature Range: 32° to 104°F (0° to 40°C) Size: 124 x133 x 36 mm DRONE BATTERY Capacity: 550mAh Voltage: 3.7V Battery Type: Lithium-ion Polymer Battery Charging Temperature Range: 41°... -
Page 29: Contact Us
Input: 5V/2A Rated Power: ≤10 W 13.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@deerc.com (USA) eu@deerc.com (EU) jp@deerc.com (JP) +1(855)777-8866 For online support, please scan this code with Live Chat... -
Page 30: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D23_FCC_sDoC.pdf. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 31 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 32 CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonne- ments IC établies pour un environnement non contrôlé.
- Page 33 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3. Please replace the battery if the battery is dropped or has any peculiar smell, overheating, discoloration, deformation or leakage happens.
- Page 34 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not to be short-circuited. Regular examination of transformer or battery charger for any damage to their cords, plugs, enclosures and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 35 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: D23/DEERC The Statement of compliance is available at the following address: http://www.deerc.com/Download/CE/D23_EU_DOC.pdf This product can be used among EU member states.
