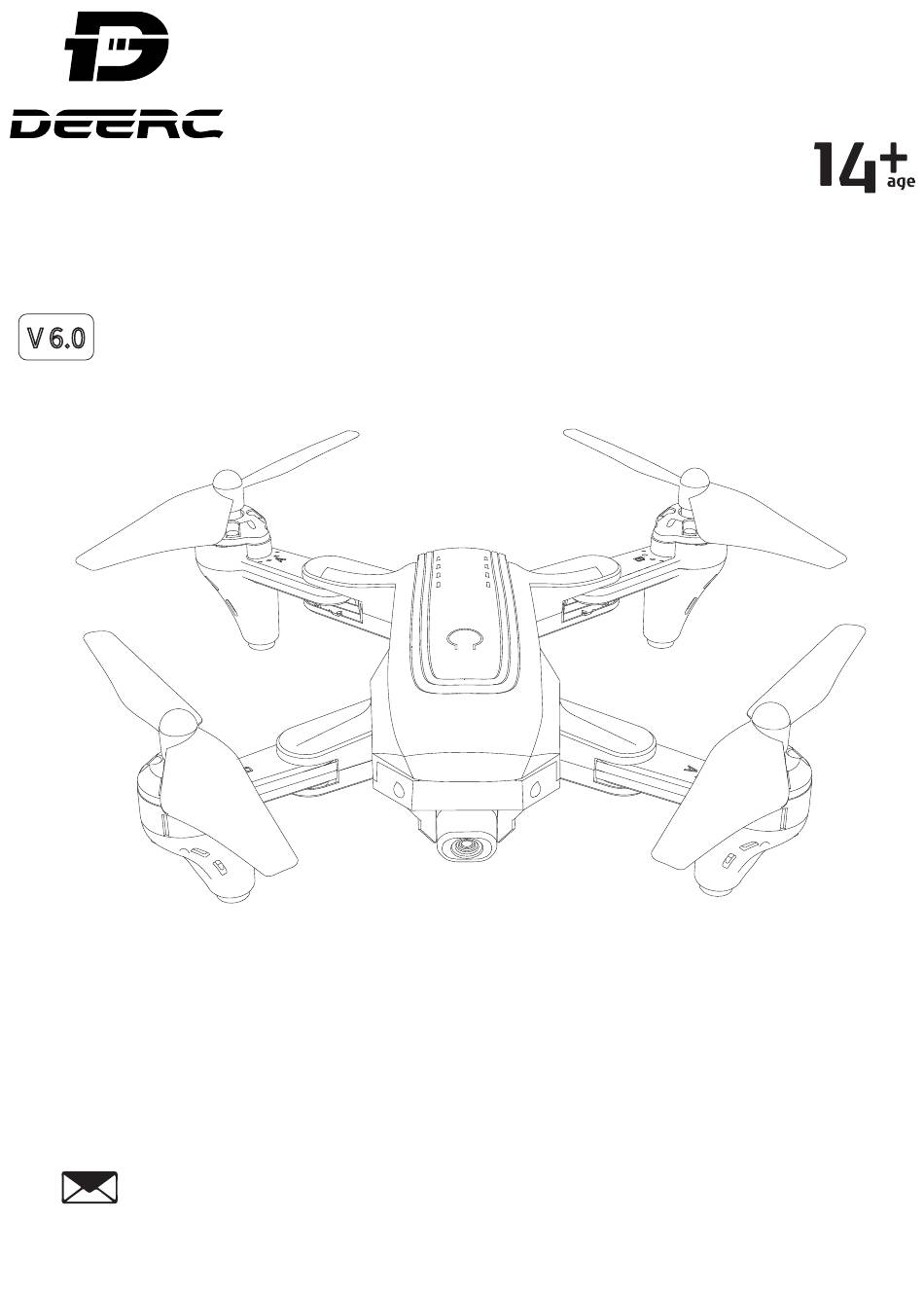

- Page 1 Instructions For Use V 6.0 jp@deerc.com (JP) usa@deerc.com (USA) eu@deerc.com (EU)
-
Page 3: Table Of Contents
Contents 1.0 Disclaimer & Warning ..................2.0 Safety Guidelines ....................3.0 Maintenance ....................... 4.0 Package Contents ..................... 5.0 Drone Details ..................... 6.0 Transmitter Details .................... 7.0 Joystick Mode ....................8.0 Charging ......................9.0 Installation 9.1 Propellers ...................... 9.2 Drone Battery ..................... 9.3 Propeller Guard................... -
Page 4: Disclaimer & Warning
You agree to only use this product for it's designed purposes and in accordance with local laws, regulations and all applicable policies and guidelines that Deerc may provide. 2. When using this product, please be sure to strictly abide by the specifica- tion requirements and safety guidelines stated in this document. - Page 5 ④ Ensure to do a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear of the propeller, battery power and effectiveness of the indicator, etc. If after doing a complete check of the drone any problems are found, please refrain from using it until the problem has been resolved.
- Page 6 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ Fly the drone back to you as soon as you are notified that the battery is running low.
- Page 7 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery as they are a different voltage.
-
Page 8: Maintenance
3.0 MAINTENANCE ① Clean the product after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected in water under any circumstance. -
Page 9: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propeller Guard Propeller Cable Instructions For Use V 6.0 usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU) Screwdriver Instructions For Use -06-... -
Page 10: Drone Details
5.0 DRONE DETAILS Propeller A Propeller B Propeller B Power Switch Propeller A HD Camera 6.0 TRANSMITTER DETAILS Speed Switch/ 360°Flip Power Button Record Video Take Photo Trimmer (Short press)/ (Short press)/ Auto-Rotation Circle Fly (Long press) (Long press) Emergency Null Button Stop One Key Takeoff/... -
Page 11: Joystick Mode
7.0 JOYSTICK MODE 7.1 MODE 2 (Left hand throttle MODE 2 will be default setting.) Left Joystick Right Joystick Forward Ascend Descend Backward Down Down Left Right Right Left Fly to Fly to Rotate Left Rotate Right Left Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7.2 MODE 1 To enter MODE 1, turn on the transmitter while holding the “Speed Switch”... -
Page 12: Charging
8.0 CHARGING USB Adapter (5V/2.0A) Power Bank 1) When the drone battery runs low, the indicator lights on the drone will flash continuously. 2) Remove the battery and connect the USB charging cable to the battery. 3) Plug the USB charging cable into a USB charging port on power bank or USB adapter (5V/2.0A ). -
Page 13: Installation
9.0 INSTALLATION 9.1 Propellers HEAD The drone will not fly unless the correct propeller is installed on the correct motor shaft. See illustration above. An “A” “B” is printed on the each propeller. Lock the propeller to the motor shaft with screw rotating each screw clockwise. -
Page 14: Propeller Guard
9.3 Propeller Guard Installation: Line up the protruding points on the propeller guard with the sunken grooves on the drone and insert them together. Tightly press both sides of the propeller guard into place after the sunken grooves and protruding points have completely interlocked. Removal: Lightly pull on the clip on one of the ends of the propeller guard outwards until it has separated from the inside of the drone, at which point the propeller guard can be fully removed. -
Page 15: Transmitter Battery
9.4 Transmitter Battery 3 x 1.5V AA (Not included) Battery Cover As shown above, insert the battery into the battery compartment. Please pay attention to the positive and negative polarity of the battery to ensure the correct installation of the battery. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9.5 Phone Holder As shown above, pull the phone holder down and insert the phone. -
Page 16: Operation Guide
Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store and download the Deerc FPV app for free. Required Operating Systems: iOS 12.0 or later/Android 4.4 or later. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10.2 Connect to Wi-Fi... -
Page 17: Pairing
·All of the following operations on this manual takes MODE 2 for example. 10.3 Pairing ① Press and hold the power button to turn on the drone and the indicator lights on the drone begins to flash. HEAD ② Place the drone on a flat and level surface with the head forward and the tail towards the pilot. -
Page 18: Calibrating The Gyroscope
10.4 Calibrating the Gyroscope Push the left and right joystick simultaneously to the lower left corner to calibrate the gyro. When the indicator lights on the drone change from flashing quickly to solid, it indicates that the calibration has been completed. Tips: To ensure a stable flight, we suggest that the pilot calibrates the gyro every time after pairing the drone and after a crash. -
Page 19: Functions Details
11.0 FUNCTION DETAILS 11.1 Emergency Stop The Emergency Stop function can be only used in case of emergen- cy during the flight to avoid any of damage or injury. Press and hold the Emergency Stop button for about 2 seconds, the motors will stop immediately. -
Page 20: Trimmer Function
11.3 Trimmer Function F/B Sideways Drift Trim: If the drone tends to drift forward, hold down the “Speed Switch” button and do not release it while pushing the direction joystick down to re-balance the drone. If the drone tends to drift backwards, hold down the“Speed Switch”... -
Page 21: Take Photo/Video
11.4 Take Photo/Video Take Photo: Short press the Photo button on the transmitter to take pictures. One beep can be heard from the transmitter, indicating the camera has successfully taken one photo. Record Video: Short press the Video button on the transmitter, two beeps from the transmitter will be heard. -
Page 22: Altitude-Hold Function
11.5 Altitude-Hold Function drone designed with altitude-hold function so the drone can maintain its altitude after you release the left joystick ( the left joystick will automatically spring back to the middle ). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11.6 360°... -
Page 23: Circle Fly
11.7 Circle Fly Long press for 3 seconds Press and hold the Photo button for about 3 seconds, the drone will enter the Circle Fly mode. Exit the Circle Fly mode by long pressing the same button again or pushing the direction joystick. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11.8 Auto-Rotation Long press for 3 seconds... -
Page 24: Headless Mode
11.9 Headless Mode HEAD TAIL 1. After pairing/calibration, or during the flight of the drone, short press the Headless Mode button to enter Headless Mode. In Headless Mode, the indicator lights of the drone will flash continuously, and the transmitter will send out alarm sound continuously. - Page 25 HEAD TAIL HEAD TAIL TAIL HEAD Please make sure the pilot stays in the same orientation as the drone head faces when the drone is takeoff. Under Headless Mode, the forward direction is the direction that the head of drone faces when the drone is take-off. In order to make sure the pilot can tell drone’s direction, we recommend that pilots to stay in the same orientation as the drone’s head faces when the drone takeoff.
-
Page 26: Specifications
12.0 SPECIFICATIONS DRONE Model: D10 Weight: 164g/5.78oz Max Flight Time: 12 minutes (per battery) Operating Temperature Range: 32° to 104°F (0° to 40°C) Size: 340*340*65 mm (Unfolded) 180*142*65mm (Folded) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... - Page 27 CAMERA Operating Frequency: 5500-5700MHz Photo Resolution: HD2048×1152P Transmission Distance Range: 196~262feet/60~80m (outdoors and unobstructed) Transmission Frame Rate: 25 fps Photo Formats: JPEG Video Formats: AVI/MP4 Operating Temperature Range: 32° to 104°F (0° to 40°C) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - USB CHARGING CABLE Input: 5V/2 A Rated Power: ≤10W...
-
Page 28: Contact Us
13.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU) +1(855)777-8866 For online support, please scan this code with Live Chat -25-... -
Page 29: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D10_FCC_sDoC.pdf. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are set to provide reasonable protection against harmful interference in a residential installation. - Page 30 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 31 CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operat- ed with a minimum distance of 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
- Page 32 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3. Please replace the battery if the battery is dropped or has any peculiar smell, overheating, discolouration, deformation or leakage happens.
- Page 33 < Haftungsausschluss & Warnung > 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not to be short-circuited. Regular examina- tion of transformer or battery charger for any damage to their cords, plugs, enclosures and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 34 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: D10/DEERC The Statement of compliance is available at the following address: http://www.deerc.com/Download/CE/D10_EU_DOC.pdf This product can be used among EU member states.
