Summary of Contents for Deerc D23

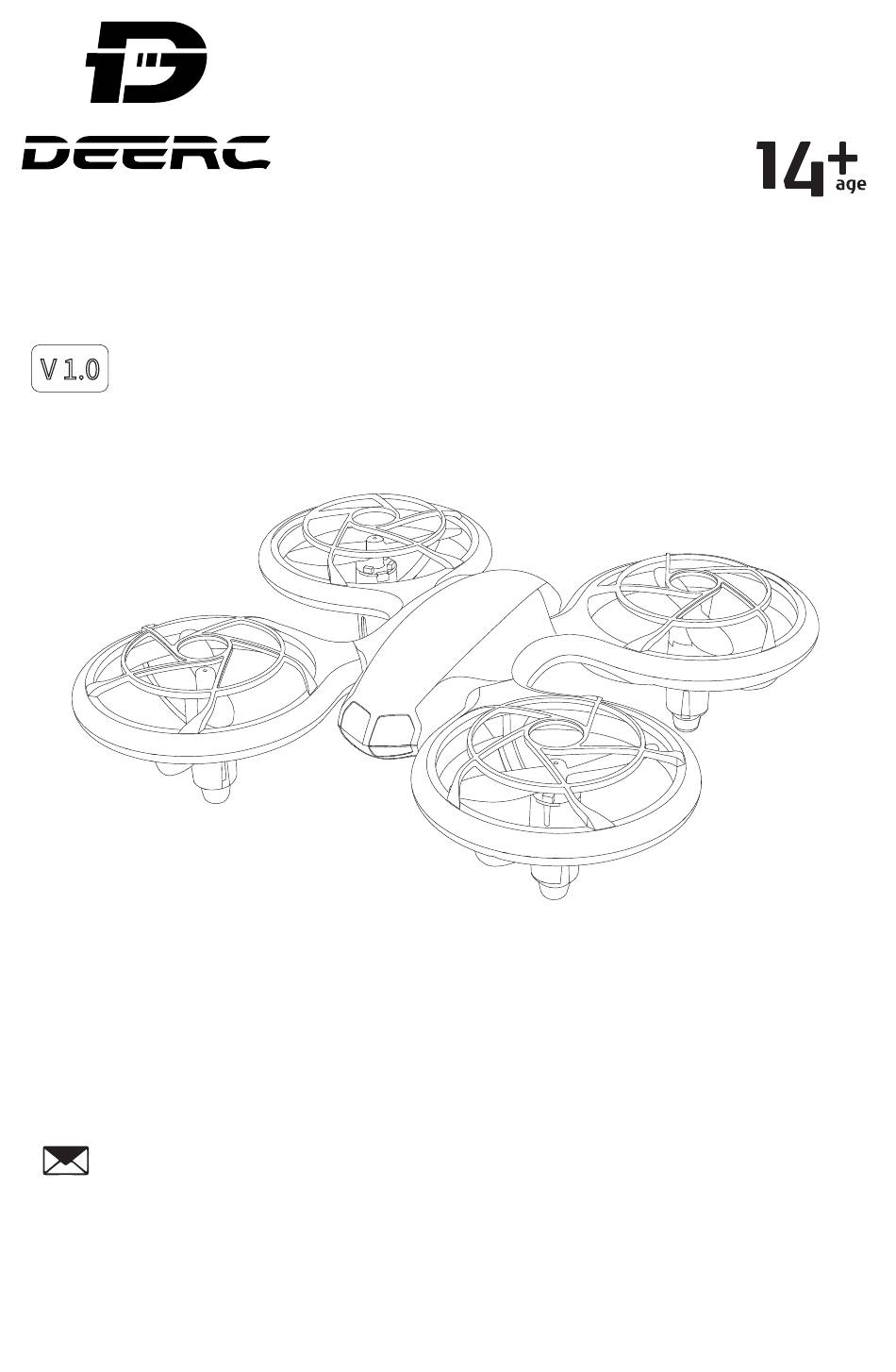

- Page 1 Instructions For Use V 1.0 usa@deerc.com (USA) eu@deerc.com (EU)
-
Page 3: Table Of Contents
Contents 1.0 Disclaimer & Warning ................. 2.0 Safety Guidelines .................. 3.0 Maintenance ..................4.0 Package Contents ................. 5.0 Diagram Of Drone................. 6.0 Diagram Of Transmitter ..............7.0 Joystick Mode ..................8.0 Installation Propeller ....................Drone Battery ..................9.0 Charging ....................10.0 Operation Guide Pairing ....................... -
Page 4: Disclaimer & Warning
Any personal injury, property damage, legal disputes and all other adverse events caused by the violation of any of the safety instructions or due to any other factor, WILL NOT be Deerc’s responsi- bility. 2.0 SAFETY GUIDELINES 2.1 Check Before Use... - Page 5 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 6 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ When the battery runs low, return the drone back to your starting point.
- Page 7 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have different voltage.
-
Page 8: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 9: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propeller Screwdriver Cable Instructions For Use V 1.0 usa@deerc.com (USA) eu@deerc.com (EU) Instructions For Propeller Spanner... -
Page 10: Diagram Of Drone
5.0 DIAGRAM OF DRONE Propeller B Propeller A Propeller A Propeller B Drone Battery Power Switch... -
Page 11: Diagram Of Transmitter
6.0 DIAGRAM OF TRANSMITTER Power Indicator 360° Flip Speed Switch (Short Press) (Short Press) /High Speed Rotation Circle Fly (Long Press) (Long Press) Left Joystick/ Right Joystick Trimmer Light Switch One Key Takeoff/ Landing (Short Press) Headless Mode (Long Press) Power Switch Battery Cover Battery... -
Page 12: Joystick Mode
7.0 JOYSTICK MODE 7.1 MODE 2 (Left joystick as the throttle joystick) Left Joystick Right Joystick Ascend Forward Descend Backward Down Down Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right 7.2 MODE 1 (Right joystick as the throttle joystick) To enter MODE 1, turn on the transmitter while holding the ( button. -
Page 13: Installation Propeller
8.0 INSTALLATION 8.1 Propeller HEAD Installation: See illustration above, connect each propeller to its corresponding motor shaft, either position “A/B”. Install the propeller to the motor shaft and press into place. Pay attention to the “A” “B” printed on each propeller. The drone will not fly unless the correct propeller is installed on the correct motor shaft. -
Page 14: Drone Battery
8.2 Drone Battery Installation: As shown in the figure above, press and hold the sides of the battery, then install the battery to the battery compartment. When you hear a click, the battery is installed. Removal: As shown in the figure above, press and hold the sides of the battery and lift it up to remove the battery. -
Page 15: Charging
9.0 CHARGING USB Adapter (5V/2A) Power Bank ① Connect the battery with the USB Charging Cable. ② Plug the USB Charging Cable into a USB charging port on power bank or USB adapter (5V/2A). ③ Charging time: about 140 minutes. ④... -
Page 16: Operation Guide
10.0 OPERATION GUIDE - All of the following operations on this manual uses MODE 2. - You must keep your drone in visual line of sight all the time. If you can't see it, you can't control it. 10.1 Pairing ①... -
Page 17: Calibrate The Gyro
10.2 Gyro-calibration Push the left and right joystick simultaneously to the lower left corner to calibrate the gyro. The indicator lights on the drone will blink quickly and turn solid. You will hear 2 beeps from the transmitter when the calibration is completed. -
Page 18: Landing
Method Takeoff Pick up the drone and lay it flat on your palm. Gently toss the drone into the air, and it will hover in place. 10.4 Landing During the flight, short press the ( ) button, the drone will land on the ground automatically. -
Page 19: Functions Details Speed Switch
11.0 FUNCTIONS DETAILS 11.1 Speed Switch This drone comes with 3 speed modes (Low/Medium/High). Press the ) button on the upper left of the transmitter to change the speed. The transmitter beeps once to indicate Low Speed, twice to indicate Medium Speed and three times to indicate High Speed. -
Page 20: 360° Flip
11.3 360° Flip 10 ft After you get familiar with all the functions of the drone, you can try this amazing flip mode. When the drone is at least 10 ft from the ground, press down on the ( ) button, then push the right joystick in any direction. -
Page 21: Emergency Stop
11.5 Emergency Stop The Emergency Stop function should only be used in case of emergency during the flight to avoid any damage or injury. ① Short press the upper left ( ) and upper right ( ) button of the transmitter at the same time, the motors will stop immediately. -
Page 22: Light Switch
11.6 Light Switch Short press the ( ) button once you can change the light state. Every time the light state changes, the transmitter will send a beep sound. The first state: Diagonal lights flash alternately. The second state: The lights flashing clockwise one after another. The third state: The front blue lights will turn off, and the rear green lights will turn on. -
Page 23: Rotate To Fly Back
11.7 Rotate to Fly Back The drone is designed with Rotate to Fly Back. Throwing it out at a horizontal angle, and it will take off and return automatically. ① Throw it out at a horizontal angle ② Catching it by hand Follow the steps as below to start the Rotate to Fly Back: 1) Turn on the drone after, short press the Power Switch twice at a horizontal angle. -
Page 24: Trimmer
11.8 Trimmer Trim adjustments are designed to counter drifts not caused by airflow. The Forward Trim If the drone tends to drift forward: 1. Press down the left joystick and do not release it. 2. At the same time, push the right joystick backward one time. 3. -
Page 25: Headless Mode
11.9 Headless Mode The Headless Mode is a great training tool for beginner pilots. It is also useful when the drone is too far from the pilot (which makes it difficult to tell its orientation). It keeps the drone traveling forward, backward, left, or right when you move the right joystick in those directions, regardless of which way the front of the head of the drone points to. -
Page 26: Altitude-Hold Function
* Why is the orientation of the drone important? In normal flying mode, the control of the drone movement can sometimes be counter-intuitive for beginners. For instance, when the drone is in the air with its head pointing to your right, if you push the right joystick forward, the drone will fly to your right, instead of flying forward. -
Page 27: Specification
12.0 SPECIFICATIONS DRONE Model: D23 Weight: 51g/1.8oz Max Flight Time: 8 minutes (per battery) Motor Model: 716 Operating Temperature Range: 14° to 104°F (-10° to 40°C) Size: 124 x133 x 36 mm DRONE BATTERY Capacity: 550mAh Voltage: 3.7V Battery Type: Lithium-ion Polymer Battery Charging Temperature Range: 41°... -
Page 28: Contact Us
13.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@deerc.com (USA) eu@deerc.com (EU) +1(855)777-8866 For online support, please scan this code with Live Chat -25-... -
Page 29: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D23_FCC_sDoC.pdf. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 30 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 31 CAN NMB-003 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonne- ments IC établies pour un environnement non contrôlé.
- Page 32 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3. Please replace the battery if the battery is dropped or has any peculiar smell, overheating, discoloration, deformation or leakage happens.
- Page 33 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not to be short-circuited. Regular examination of transformer or battery charger for any damage to their cords, plugs, enclosures and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 34 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: D23/DEERC The Statement of compliance is available at the following address: http://www.deerc.com/Download/CE/D23_EU_DOC.pdf This product can be used among EU member states.
