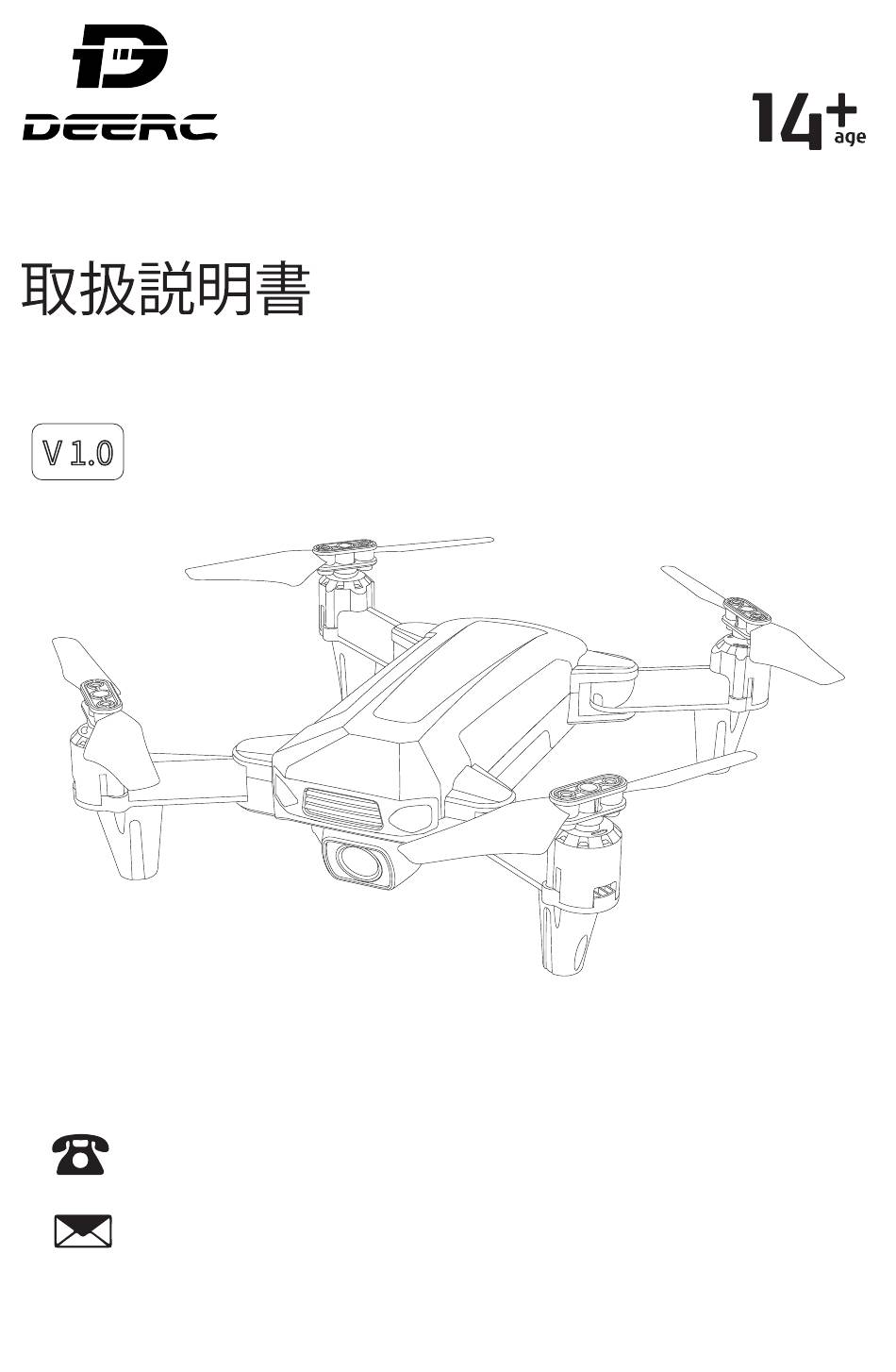

- Page 1 Instructions For Use Gebrauchsanweisung V 1.0 +1(855)777-8866 usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU)
- Page 3 01-33 English 34-62 日本語 63-93 Deutsch...
-
Page 4: Table Of Contents
Contents 1.0 Disclaimer & Warning ................2.0 Safety Guidelines ..................3.0 Maintenance ....................4.0 Package Contents ..................5.0 Drone Details ....................6.0 Transmitter Details ..................7.0 Joystick Mode ..................... 8.0 Installation Drone Battery ..................... Propellers ...................... Propeller Guard ..................Phone Holder ....................9.0 Charging ....................... -
Page 5: Disclaimer & Warning
You agree to only use this product for its designed purposes and under the local laws, regulations, and applicable policies and guidelines that DEERC may provide. 2. When using this product, please strictly abide by the specification requirements and safety guidelines stated in this document. - Page 6 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 7 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in an emergency. ③ When the battery runs low, return the drone to your starting point. ④ DO NOT use this product if you feel tired, take medicine or feel unwell and drink alcohol.
- Page 8 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets will damage your battery since they have different voltages. ⑨...
-
Page 9: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid heat buildup on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 10: Package Contents
4.0 PACKAGE CONTENTS ×1 ×1 ×1 Drone Transmitter Drone Battery ×1 ×2 ×1 USB Charging Spare Propellers Screwdriver Cable Instructions For Use Gebrauchsanweisung V 1.0 +1(855)777-8866 ×4 ×1 usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU) Propeller Guards Instructions For Use -06-... -
Page 11: Drone Details
5.0 DRONE DETAILS Propeller A Propeller B Propeller A Propeller B HD Camera Drone Battery -07-... -
Page 12: Transmitter Details
6.0 TRANSMITTER DETAILS Phone Holder High-Speed Rotation Take Photo/ /Circle Fly Record Video (Long Press) (Long Press) Right Joystick/ Left Joystick 360° Flip Headless Mode One Key Takeoff /Trimmer & Landing/ Emergency Stop (Long Press) (Long Press) Power Switch Speed Switch Battery Cover 3×AAA Battery (Not included) -
Page 13: Joystick Mode
7.0 JOYSTICK MODE 7.1 MODE 2 (Default Setting) Left Joystick Right Joystick Forward Ascend Descend Down Down Backward Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right 7.2 MODE 1 To enter Mode 1, long press the Trimmer button while turning on the transmitter. -
Page 14: Installation
8.0 INSTALLATION 8.1 Drone Battery Installation: Installation: Push the battery correctly into the drone battery compart- ment. Make sure the battery is in place to ensure that the battery is jammed in the battery compartment. Attention: The battery should be installed firmly. Failure to do so may affect the flight safety of your drone. -
Page 15: Propellers
8.2 Propellers HEAD Connect each propeller to its corresponding motor shaft, either position “A/B,” and lock the propeller to the motor shaft with a screw. Attention: Pay attention to the “A” “B” printed on each propeller. The drone will not fly unless the correct propeller is installed on the correct motor shaft. -
Page 16: Phone Holder
8.4 Phone Holder ② ① ③ Pic.1 Pic.2 As shown above, open the phone holder completely (Pic.1). Adjust the phone holder upward and downward according to the size of your phone (Pic.2). -12-... -
Page 17: Charging
9.0 CHARGING USB Adapter (5V/1A) Power Bank Computer USB Port 1) When the drone battery runs low, the indicator lights on the drone will blink continuously. 2) Connect the battery with the USB charging cable. 3) Plug the USB charging cable into a USB charging port on the computer, power bank, or USB adapter (5V/1A). -
Page 18: Using The App Download App
10.1 Download APP Android APP on Google play Scan the QR code, connect to the App Store™ or Google™ Play and download the “Deerc GO” application for free. Required Operating Systems: iOS 9.0 or later/Android 5.0 or later. 10.2 Connect to Wi-Fi Turn on the drone, connect your phone to the Wi-Fi network created by the drone. -
Page 19: Operation Guide
11.0 OPERATION GUIDE All of the following operations on this manual uses MODE 2. 11.1 Pairing Long Press ① Long press the Power Switch to turn on the drone. The indicator lights of the drone will keep flashing. Head ② Place the drone on a flat and level surface with the head forward and the tail facing towards the pilot. -
Page 20: Calibrating The Gyro
11.2 Calibrating the Gyro Simultaneously push the left joystick and the right joystick to the bottom right corner to calibrate the gyro. The indicator lights on the drone will blink and turn solid, and the transmitter will send out a long “Di” sound, which indicates the calibration is completed. -
Page 21: Auto Takeoff
11.4 Auto Takeoff There are two methods to take off the drone. Method 1: Takeoff After pairing/calibration, unlock the motors, short press the One Key Takeoff/Landing button, the drone will take off automatically and hover at 4 feet altitude. Method 2: After pairing, pick up the drone and lay it flat on your palm. -
Page 22: One Key Landing
11.5 One Key Landing Landing Short press the One Key Takeoff/Landing button during the flight, the drone will automatically land on the ground. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12.0 FUNCTIONS DETAILS 12.1 Emergency Stop The Emergency Stop function should only be used in an... -
Page 23: Trimmer
12.2 Trimmer Long Press F/B Sideways Drift Trim: If the drone tends to drift forward, hold down the Trimmer button and do not release it while pushing the right joystick down to re-balance the drone. If the drone tends to drift backward, hold down the Trimmer button and do not release it while pushing the right joystick up to re-balance the drone. -
Page 24: Speed Switch
12.3 Speed Switch This drone comes with 2 speed modes (Low/High). As shown above, push the Speed Switch button to the left, the transmitter sends out a “Di” sound, indicating Low Speed. Push the Speed Switch button to the right, the transmitter sends out a “DiDi” sound, indicating High Speed. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12.4 Altitude-hold Function The drone is designed with an altitude-hold function to maintain its... -
Page 25: Take Photo/Record Video
12.5 Take Photo/Record Video Take Photo: Short press the Take Photo/Record Video button, the transmitter sends out a “Di” sound, indicating that the camera has taken one photo successfully. Record Video: Long press the Take Photo/Record Video button, the transmitter sends out a “DiDi” sound, indicating that the camera is recording video. -
Page 26: High-Speed Rotation
12.7 High-Speed Rotation During the flight, short press the High-Speed Rotation button, the transmitter will make a “Di” sound, which indicates that the drone enters the High-Speed Rotation function. The drone will exit the High-Speed Rotation function automatically 10 seconds after, and you can also push the right joystick in any direction to stop the rotation. -
Page 27: Headless Mode
12.9 Headless Mode Please familiarize yourself with the Headless Mode function first before using this mode. Otherwise, it is easy to lose the drone and cause unnecessary loss. Head Tail 1. After pairing/calibration, short press the Headless Mode button on the transmitter. - Page 28 Head Tail Head Tail Tail Head Please make the pilot stays facing the same direction that the drone head faces at takeoff. While in Headless Mode, pushing the right joystick forward will make it fly in the direction that the head of the drone faces when it takes off. To make sure the pilot can tell the drone's direction during the flight, we recommend that pilot stays facing the same direction that the drone head faces at take-off.
-
Page 29: 360° Flip
12.10 360° Flip 10 Feet When you get familiar with all the drone's functions, you can try this fantastic flip mode. When you fly the drone at least 10 feet, press in the Right Joystick on the transmitter, then push the right joystick Forward/Backward or Left/Right, and the drone will do a flip towards the corresponding direction. -
Page 30: Specifications
13.0 SPECIFICATIONS DRONE Model: D40 Weight: 70g/2.47oz Max Flight Time:10minutes (per battery) Motor Model: 716 Operating Temperature Range: 32° to 104°F (0° to 40°C) Size: 188*115*41mm(Unfolded) 93*63*41mm(Folded) DRONE BATTERY Capacity: 500mAh Voltage: 3.7V Battery Type: Li-Po Battery Charging Temperature Range: 41° to 104°F (5° to 40°C) -
Page 31: Contact Us
USB CHARGING CABLE Input: 5V 1A Rated Power: ≤5W 14.0 CONTACT US Please do not hesitate to contact us if you need further support. usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU) +1(855)777-8866 For online support, please scan this code with Live Chat. -
Page 32: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D40_FCC_sDoC.pdf NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 33 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 34 CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonne- ments IC établies pour un environnement non contrôlé.
- Page 35 3. Please replace the battery if the battery is dropped or has any peculiar smell, overheating, discoloration, deformation, or leakage. 4. Never use anything other than the approved LiPo Charger to charge the battery. Always use a balancing charger for LiPo cells or a LiPo cell balancer.
- Page 36 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: D40/DEERC The Statement of compliance is available at the following address: http://www.holystone.com/docs/D40_EU_DOC.pdf This product can be used among EU member states.
- Page 37 MANUFACTURER INFORMATION Manufactured by Xiamen Huoshiquan Import & Export CO.,LTD. Address: Unit. 33, Room 806, NO. 2 Huming Road, Siming District, Xiamen, China +1(855)777-8866 -33-...
