Summary of Contents for Deerc D60

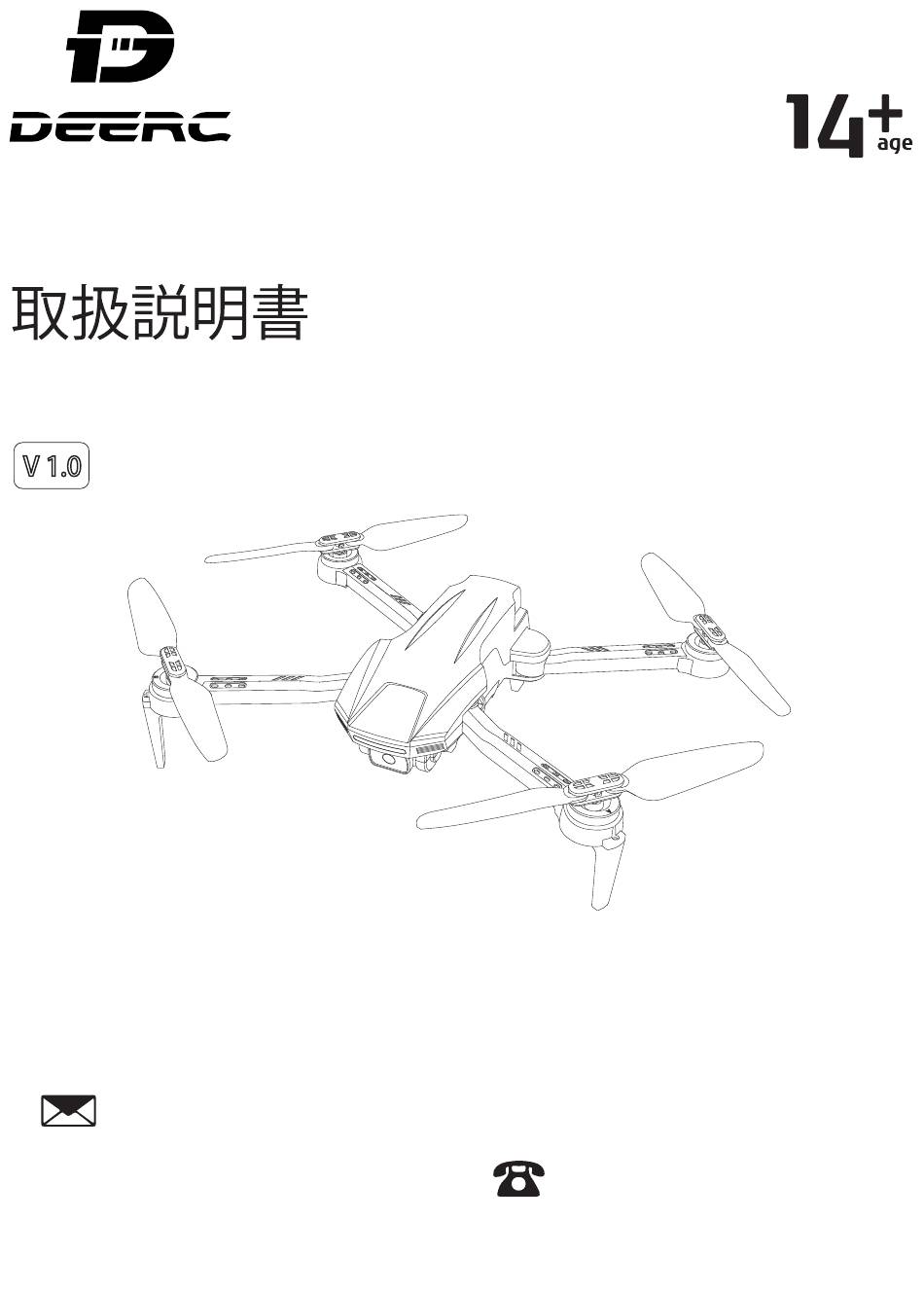

- Page 1 Instructions For Use Gebrauchsanweisung V 1.0 usa@deerc.com (USA) eu@deerc.com (EU) jp@deerc.com (JP) +1(855)777-8866...
- Page 3 English 01-32 日本語 33-59 Deutsch 60-88...
-
Page 4: Table Of Contents
Contents 1.0 Disclaimer & Warning ................2.0 Safety Guidelines ..................3.0 Maintenance ....................4.0 Package Contents ..................5.0 Drone Details ....................6.0 Transmitter Details ..................7.0 Joystick Mode ....................8.0 Installation Propellers ......................Phone Holder ....................Drone Battery ....................Transmitter Battery ..................9.0 Charging ...................... -
Page 5: Disclaimer & Warning
You agree to only use this product for its designed purposes and under the local laws, regulations, and applicable policies and guidelines that DEERC may provide. 2. When using this product, please strictly abide by the speci cation requirements and safety guidelines stated in this document. - Page 6 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear o on the propellers, battery power and e ectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 7 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the ight, turn o the motors only in an emergency. ③ When the battery runs low, return the drone to your starting point. ④ DO NOT use this product if you feel tired, take medicine or feel unwell and drink alcohol.
- Page 8 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have di erent voltages.
-
Page 9: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid heat buildup on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 10: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Spare Propellers Screwdriver Cable Instructions For Use Gebrauchsanweisung V 1.0 usa@deerc.com (USA) eu@deerc.com (EU) jp@deerc.com (JP) +1(855)777-8866 Instructions For Use -06-... -
Page 11: Drone Details
5.0 DRONE DETAILS Propeller A Propeller B Propeller B Propeller A HD Camera Power Switch (Long Press) Drone Battery -07-... -
Page 12: Transmitter Details
6.0 TRANSMITTER DETAILS Phone Holder Headless Mode (Short Press) Calibrate the Gyro Power Switch (Long Press) Right Joystick Left Joystick One Key Takeo / High-Speed Rotation Landing (Short Press) Trimmer (Long Press) Power Indicator Camera Angle Adjustment Speed Switch Take Photo (Short Press) (Short Press) Circle Fly... -
Page 13: Joystick Mode
7.0 JOYSTICK MODE 7.1 MODE 2 (Left hand throttle MODE 2 will be the default setting.) Left Joystick Right Joystick Forward Ascend Descend Backward Down Down Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right 7.2 MODE 1 To enter Mode 1, long press the Speed Switch button while turning on the transmitter. -
Page 14: Installation Propellers
8.0 INSTALLATION 8.1 Propellers HEAD Pic. 1 Pic. 2 The propeller and the motor shaft marked with the same letter should be connected together (both are marked with the letter either A or B). Then lock the propeller to the motor shaft with a screw. •... -
Page 15: Phone Holder
8.2 Phone Holder 1. Pull out the phone holder upwards completely (Pic. 3). Pic. 3 2. Tilt the holder 30 degrees towards you, and then you will hear a click sound (Pic. 4). Pic. 4 3. Rotate and x the support board in place (Pic. -
Page 16: Drone Battery
8.3 Drone Battery ② Pic. 7 Pic. 8 Installation: Push the battery correctly into the drone battery compart- ment. Make sure the battery is rmly installed. (Pic. 7) Removal: Press the lock button on the battery, and pull the battery out from the fuselage. -
Page 17: Charging
9.0 CHARGING USB Adapter (5V/1A) Power Bank 1) When the drone battery runs low, the indicator lights on the drone will blink continuously. 2) Connect the battery with the USB charging cable. 3) Plug the USB charging cable into a USB charging port on a power bank or a USB adapter (5V/1A). -
Page 18: Using The App Download App
Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store, and download the Deerc FPV app for free. Required Operating Systems: iOS 12.0 or later/Android 4.4 or later. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10.2 Connect to Wi-Fi... -
Page 19: Operation Guide
11.0 OPERATION GUIDE All of the following operations on this manual uses MODE 2. 11.1 Pairing ① Long press the power switch to turn on the drone. The indicator lights of the drone will keep ashing. Long press HEAD ② Place the drone on a at and level surface with the head forward and the tail facing towards the pilot. -
Page 20: Calibrating The Gyro
11.2 Calibrating the Gyro Long press Long press the button on the transmitter to calibrate the gyro. The indicator lights on the drone will blink, then turn solid, and the transmitter will send out a long “Di” sound, which indicates that the calibration is Tip: To ensure a stable ight, we suggest that the pilot calibrates the gyro every time after pairing the drone and after a crash. -
Page 21: One Key Takeo /Landing
11.4 One Key Takeo /Landing Please unlock the motors before takeo . ① Short press the One Key Takeo /Landing button, the drone will take o automatically and hover at 4 feet. Now you can control this drone by using the joysticks. -
Page 22: Trimmer
12.2 Trimmer F/B Sideways Drift Trim: If the drone tends to drift forward, press down the Trimmer button and do not release it while pushing the right joystick down to re-balance the drone. If the drone tends to drift backward, press down the Trimmer button and do not release it while pushing the right joystick up to re-balance the drone. -
Page 23: Emergency Stop
12.3 Emergency Stop The Emergency Stop function should only be used in an emergency during the ight to avoid any damage or injury. Long press Long press Long press the upper left and upper right buttons of the transmitter at the same time. -
Page 24: Take Photo/Record Video
12.5 Take Photo/Record Video Take Photo: Short press the Take Photo/Record Video button, the transmit- ter sends out one beep, which indicates that the camera has taken one photo successfully. Record Video: Long press the Video button on the transmitter. You will hear two beeps which means the recording has started. -
Page 25: High-Speed Rotation
12.7 High-Speed Rotation During the ight, short press the High-Speed Rotation button, the trans- mitter will make a “Di” sound, which indicates that the drone enters the High-Speed Rotation function. The drone will exit the High-Speed Rota- tion function automatically after 10 seconds, or you can also push the right joystick in any direction to stop the rotation. -
Page 26: Headless Mode
12.9 Headless Mode Please familiarize yourself with the Headless Mode function rst before using this mode. Otherwise, it is easy to lose the drone and cause unneces- sary loss. HEAD TAIL 1. Short press the Headless Mode button on the transmitter. In Headless Mode, the indicator lights of the drone will keep on ashing, and the transmitter will constantly beep. - Page 27 HEAD TAIL HEAD TAIL TAIL HEAD Please make the pilot stays facing the same direction that the drone head faces at takeo . While in Headless Mode, pushing the right joystick forward will make it y in the direction that the head of the drone faces when it takes o . To make sure the pilot can tell the drone's direction during the ight, we recommend that pilot stays facing the same direction that the drone head...
-
Page 28: Speci Cations
13.0 SPECIFICATIONS DRONE Model: D60 Weight: 166g/5.86oz Max Flight Time: 22 minutes (per battery) Operating Temperature Range: 32° to 104°F (0° to 40°C) Size: 332*234*60 mm (Unfolded) 145*81*60mm (Folded) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... - Page 29 CAMERA Operating Frequency: 2412-2472MHz Photo Resolution: HD1920×1080P Video Resolution: HD1280×720P@25 fps Lens: FOV 60° Controllable Range: -90° to 0° Transmission Distance Range: 197feet/60m (outdoors and unobstructed) Photo Formats: JPEG Video Formats: AVI/MP4 Operating Temperature Range: 32° to 104°F (0° to 40°C) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - USB CHARGING CABLE Input: 5 V/1A...
-
Page 30: Contact Us
14.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@deerc.com (USA) jp@deerc.com (JP) eu@deerc.com (EU) +1(855)777-8866 For online support, please scan this code with Live Chat. -26-... -
Page 31: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D60_FCC_sDoC.pdf. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. - Page 32 WARNING: Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 33 (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. The minimum distance from body to use the device is 20cm.
- Page 34 < Haftungsausschluss & Warnung > BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery and may cause a re, smoke or explosion. 2. Always check the battery’s condition before charging or using it.
- Page 35 11. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are only to be charged under adult supervision. 12. Di erent types of batteries or new and used batteries are not to be mixed. 13. Batteries are to be inserted with the correct polarity. 14.
- Page 36 Directive 2009/48/EC have been fully ful lled on our product with indication below: Product Name: Remote control four axis series Model/Mark : D60/DEERC The Statement of compliance is available at the following address: http://www.deerc.com/Download/CE/D60_EU_DOC.pdf This product can be used among EU member states.
