Summary of Contents for Deerc D33

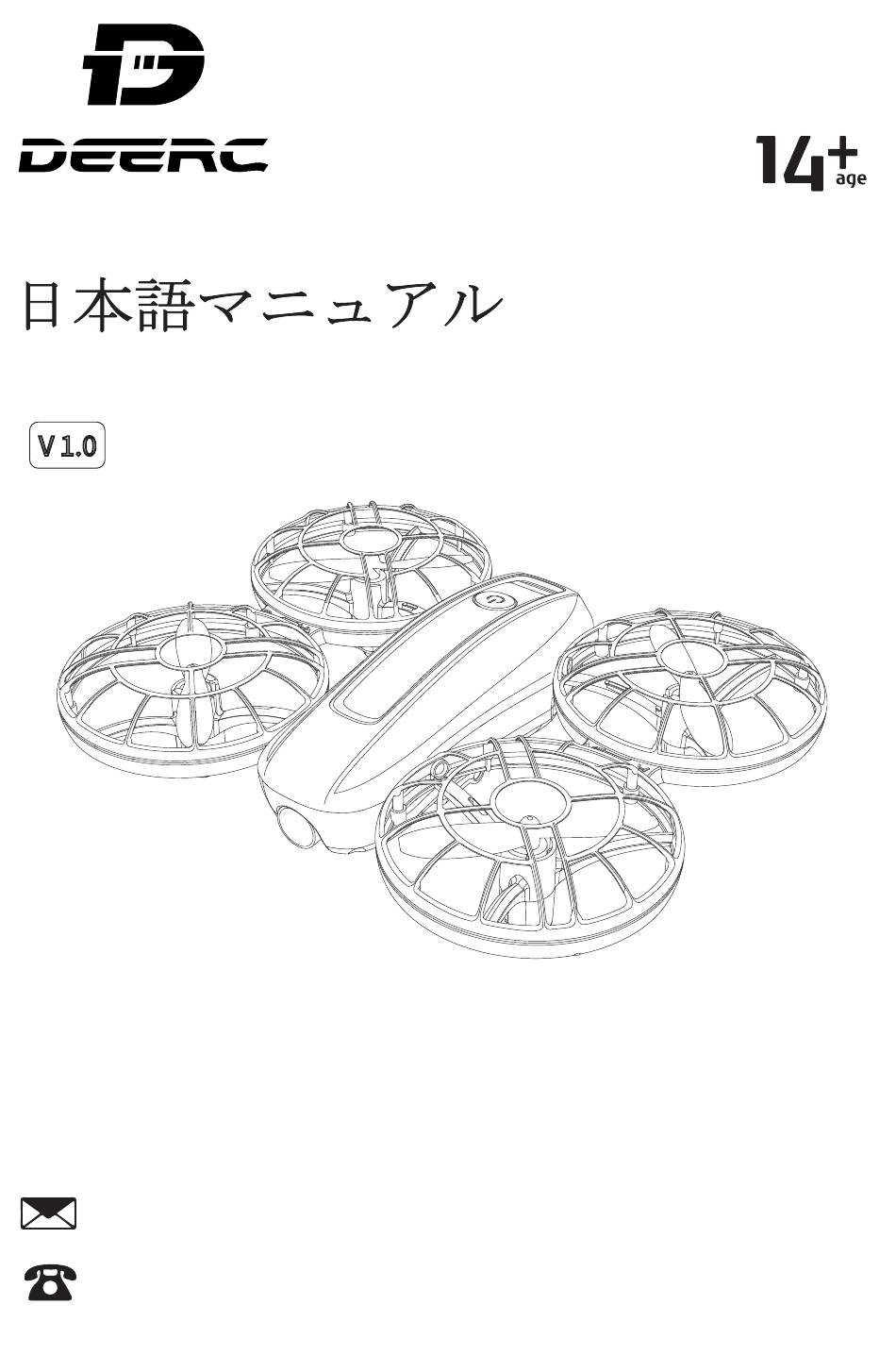

- Page 1 Instructions For Use Gebrauchsanweisungen V 1.0 usa@deerc.com (USA) eu@deerc.com (EU) +1(855)777-8866...
- Page 2 English 01-32 33-58 日本語 59-87 Deutsch...
-
Page 3: Table Of Contents
Contents Disclaimer & Warning ................Safety Guidelines ..................Maintenance ....................Package Contents ..................Diagram Of Drone ..................Diagram Of Transmitter ................Joystick Mode ....................Preparation Before Flight Charging Drone Battery ..............Changing Transmitter Batteries ............Drone Battery ..................Propellers ....................Flight Pairing ....................... -
Page 4: Disclaimer & Warning
Any personal injury, property damage, legal disputes and all other adverse events caused by the violation of any of the safety instructions or due to any other factor, WILL NOT be DEERC’s responsi- bility. SAFETY GUIDELINES CHECK BEFORE USE ①... - Page 5 SAFETY GUIDELINES ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 6 SAFETY GUIDELINES OPERATION REQUIREMENTS ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ When the battery runs low, return the drone back to your starting point.
- Page 7 SAFETY GUIDELINES ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have different voltages.
-
Page 8: Maintenance
MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 9: Package Contents
PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propeller Screwdriver Cable Instructions For Use Gebrauchsanweisungen V 1.0 usa@deerc.com (USA) eu@deerc.com (EU) +1(855)777-8866 Instructions For Propeller Spanner -06-... -
Page 10: Diagram Of Drone
DIAGRAM OF DRONE Propeller A Propeller B Front LED Light Propeller A Propeller B Power Button Drone Battery -07-... -
Page 11: Diagram Of Transmitter
DIAGRAM OF TRANSMITTER Turn on Short press - Left Joystick Backward Trimmer - Turn off Long press Right Joystick Power Indicator Left Trimmer Forward Trimmer Takeoff/Landing Right Trimmer Speed Switch Headless Mode Short press- Short press - -Circle Fly - Emergency Stop Long press Long press Light Switch... -
Page 12: Joystick Mode
JOYSTICK MODE MODE 2 (The default setting, i.e., left joystick as throttle stick.) Left Joystick Right Joystick Ascend Forward Descend Down Down Backward Left Right Left Right Fly to Fly to Rotate Rotate Left Right Right Left MODE 1 To enter MODE 1, turn on the transmitter while holding the ( button. -
Page 13: Preparation Before Flight
PREPARATION BEFORE FLIGHT CHARGING THE DRONE BATTERY USB Adapter (5V/1A) Power Bank ① Connect the drone's battery with the USB Charging Cable. ② Plug the USB Charging Cable into a USB charging port on the power bank or USB adapter (5V/1A). ③... -
Page 14: Changing Transmitter Batteries
PREPARATION BEFORE FLIGHT CHANGING TRANSMITTER BATTERIES Battery Cover 2*AAA Batteries (NOT included) Remove the battery cover on the back of the transmitter, insert 2 AAA batteries (not included) into the battery compartment. Then put the battery cover back on to complete the installation. - Please read the instructions in the “Use of Battery”... -
Page 15: Drone Battery
PREPARATION BEFORE FLIGHT DRONE BATTERY Installation: Push the battery correctly into the drone battery compart- ment. Please make sure that the battery is firmly installed. Otherwise, the flight safety of your drone may be affected. The drone may crash due to a power-cut during the flight. ①... -
Page 16: Propellers
PREPARATION BEFORE FLIGHT PROPELLERS HEAD Installation: See the illustration above. Put a propeller onto its corresponding motor shaft and press down. (The propellers are marked with either letter "A" or "B.") - The propeller is installed before the drone is packaged at the factory. - The drone will not fly unless the correct propeller is installed on the correct motor shaft. -
Page 17: Flight
FLIGHT All of the following operations in this manual use MODE 2. PAIRING ① Long press the ( ) button to turn on the drone. The lights on the drone start flashing. ② Place the drone on a flat and HEAD level surface, with its head facing forward and its tail pointing... -
Page 18: Calibrate The Gyro
FLIGHT CALIBRATE THE GYRO Push the left and right joystick simultaneously to the lower left corner to calibrate the gyro. The lights on the drone will blink quickly and turn solid, the transmitter beeps one time, indicating that the calibration is completed. -
Page 19: Takeoff
FLIGHT TAKEOFF There are two methods for takeoff. Method 1: Short press the ( ) button, the drone will automatically take off and hover at 5 ft. At this time, you can control this drone by using the joysticks. Method 2: Takeoff Pick up the drone and lay it flat on your palm. -
Page 20: Landing
FLIGHT LANDING Landing When the drone is flying, short press the ( ) button, and the drone will automatically land on the ground. -17-... -
Page 21: Flight Functions
FLIGHT FUNCTIONS SPEED SWITCH short press This drone comes with 3 speed modes (Low/Medium/High). Short press the ( ) button to switch between low, medium, and high speed. The transmitter beeps once to indicate Low Speed, twice to indicate Medium Speed and three times to indicate High Speed. (The Low Speed is the default speed mode.) CIRCLE FLY... -
Page 22: Light Switch
FLIGHT FUNCTIONS LIGHT SWITCH short press Short press the ( ) button to change between different light states. Every time the light state changes, the transmitter will send a beep sound. The first state: Lights flash irregularly. The second state: Left and right lights flash alternately. The third state: Front and rear lights flash alternately. -
Page 23: Headless Mode
FLIGHT FUNCTIONS HEADLESS MODE The Headless Mode is a great training tool for beginner pilots. It is also useful when the drone is too far from the pilot (which makes it difficult to tell its orientation). It keeps the drone traveling forward, backward, left, or right when you move the right joystick in those directions, regardless of which way the front of the head of the drone points to. -
Page 24: Altitude-Hold Function
FLIGHT FUNCTIONS * Why is the orientation of the drone important? In normal flying mode, the control of the drone movement can sometimes be counter-intuitive for beginners. For instance, when the drone is in the air with its head pointing to your right, if you push the right joystick forward, the drone will fly to your right, instead of flying forward. -
Page 25: 360° Flip
FLIGHT FUNCTIONS 360° FLIP 10 ft short press When you get familiar with all the functions of the drone, you can try this amazing flip mode. When the drone is at least 10ft from the ground, short press the ( ) button, then push the right joystick for-/back-/left-/rightward. -
Page 26: Emergency Stop
FLIGHT FUNCTIONS EMERGENCY STOP The Emergency Stop function should only be used in case of emergency during the flight to avoid any damage or injury. long press ① Long press the ( ) button, the motors will stop immediately. Be aware that you risk breakage of the drone if it falls a large distance or hits anything at a high rate of speed. -
Page 27: Attitude Adjustment
ATTITUDE ADJUSTMENT TRIMMER short press The Forward Trim If the drone tends to drift forward: ① Press the “ button one time. Backward Trimmer” ② Wait 2 seconds to watch the drone's movement. If it still drifts, press the button again. ③... -
Page 28: Specifications
SPECIFICATIONS DRONE Model: D33 Weight: 59g/2.1oz Max Flight Time: 8 minutes (per battery) Motor Model: 718 Operating Temperature Range: 32°F to 104°F (0° to 40°C) Size: 147*121*38mm DRONE BATTERY Capacity: 1050mAh Voltage: 3.7V Battery Type: Lithium-ion Polymer Battery Charging Temperature Range: 41°F to 104°F (5°C to 40°C) -
Page 29: Contact Us
CONTACT US Please do not hesitate to contact us if you need further support. usa@deerc.com (USA) eu@deerc.com (EU) +1(855)777-8866 For online support, please scan this code with Live Chat. -26-... -
Page 30: General Information
The Supplier's Declaration of Conformity is available at the following address: https://www.deerc.com/Download/US/D33_FCC_sDoC.pdf. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 31 GENERAL INFORMATION WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 32 GENERAL INFORMATION CAN NMB-003 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
- Page 33 GENERAL INFORMATION BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3.
- Page 34 GENERAL INFORMATION 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not to be short-circuited. Regular examination of transformer or battery charger for any damage to their cords, plugs, enclosures and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 35 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: D33/DEERC The Statement of compliance is available at the following address: http://www.deerc.com/Download/CE/D33_EU_DOC.pdf This product can be used among EU member states.
