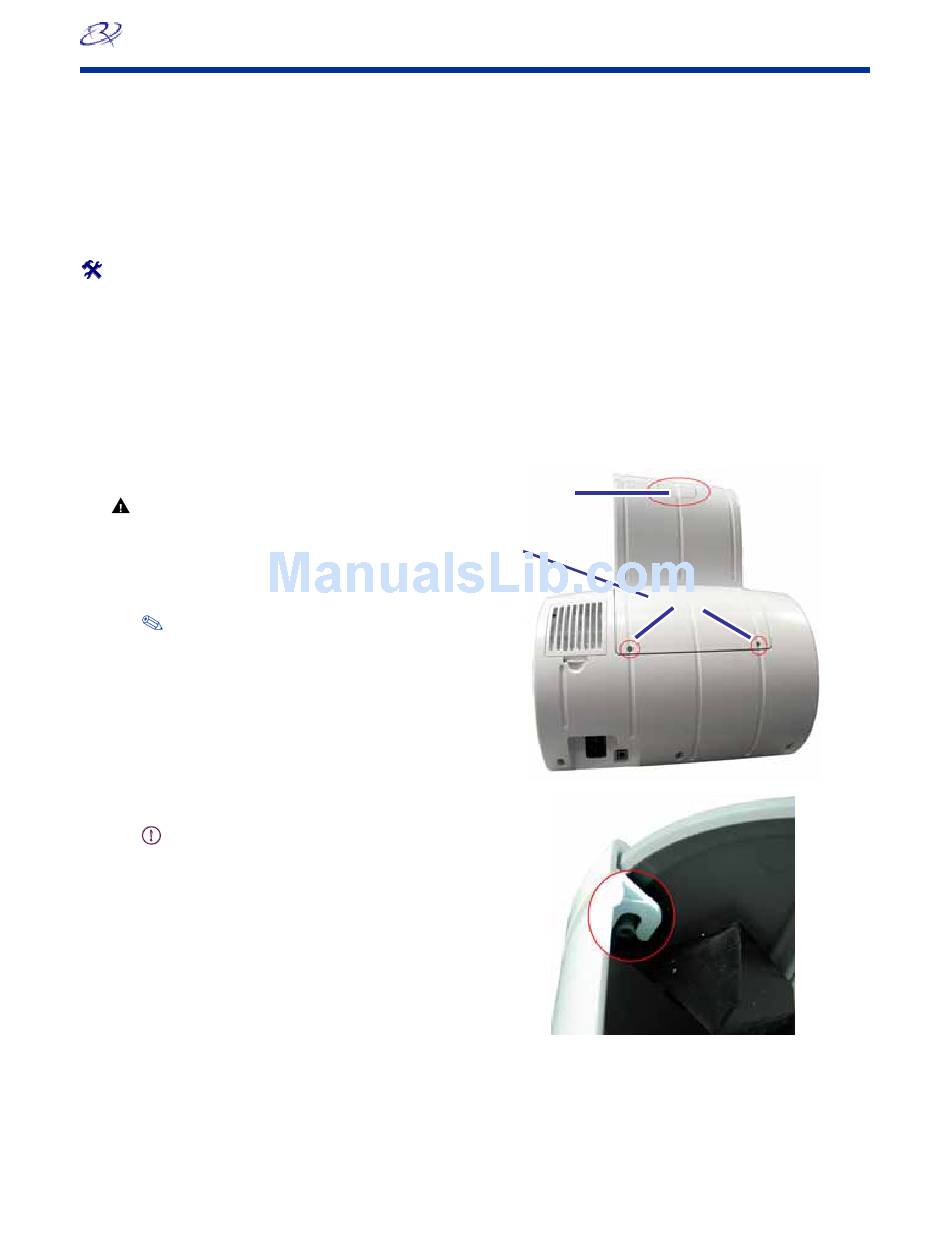

Rimage 360i™ Replace the Recorder
Use this procedure to replace a recorder in a Rimage 360i.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved
by Rimage are used; equipment or parts are tampered with, misused, neglected, or modified in any respect without
the written consent of Rimage.
Before you begin

Required tools:

•
Torx T10 Screwdriver
•
Scissors or Side Cutters
1. Stop or pause all jobs.
2. Press the power switch to power off the Rimage 360i.
3. Disconnect the power cord.

Remove the recorder

1. Access the recorder.
Caution! Some cables in this system are
latched. Equipment damage may occur if
cables are not disconnected appropriately.
a. At the top of the Rimage 360i, press the
cover latch to slightly open the front cover.
Note: Opening the front cover slightly
allows removal of the recorder access
cover.
b. At the back of the Rimage 360i, remove the
two T10 Torx screws from the recorder
access cover.
c. Remove the recorder access cover.
Important: At the top of the recorder
access cover, two hooks (one on each
side of the cover) hold the cover in
place. You must lift the cover off the
hooks to remove it.
112104_C
Cover Latch
Recorder Access
Cover
© 2006, Rimage Corporation
Operator
T10 Torx
Screws
1
