Rimage 360i

User Guide

This manual provides the information needed to operate the Rimage 360i and identify the parts.
To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Desktop 360i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rimage Desktop 360i

Summary of Contents for Rimage Desktop 360i

  • Page 1: User Guide

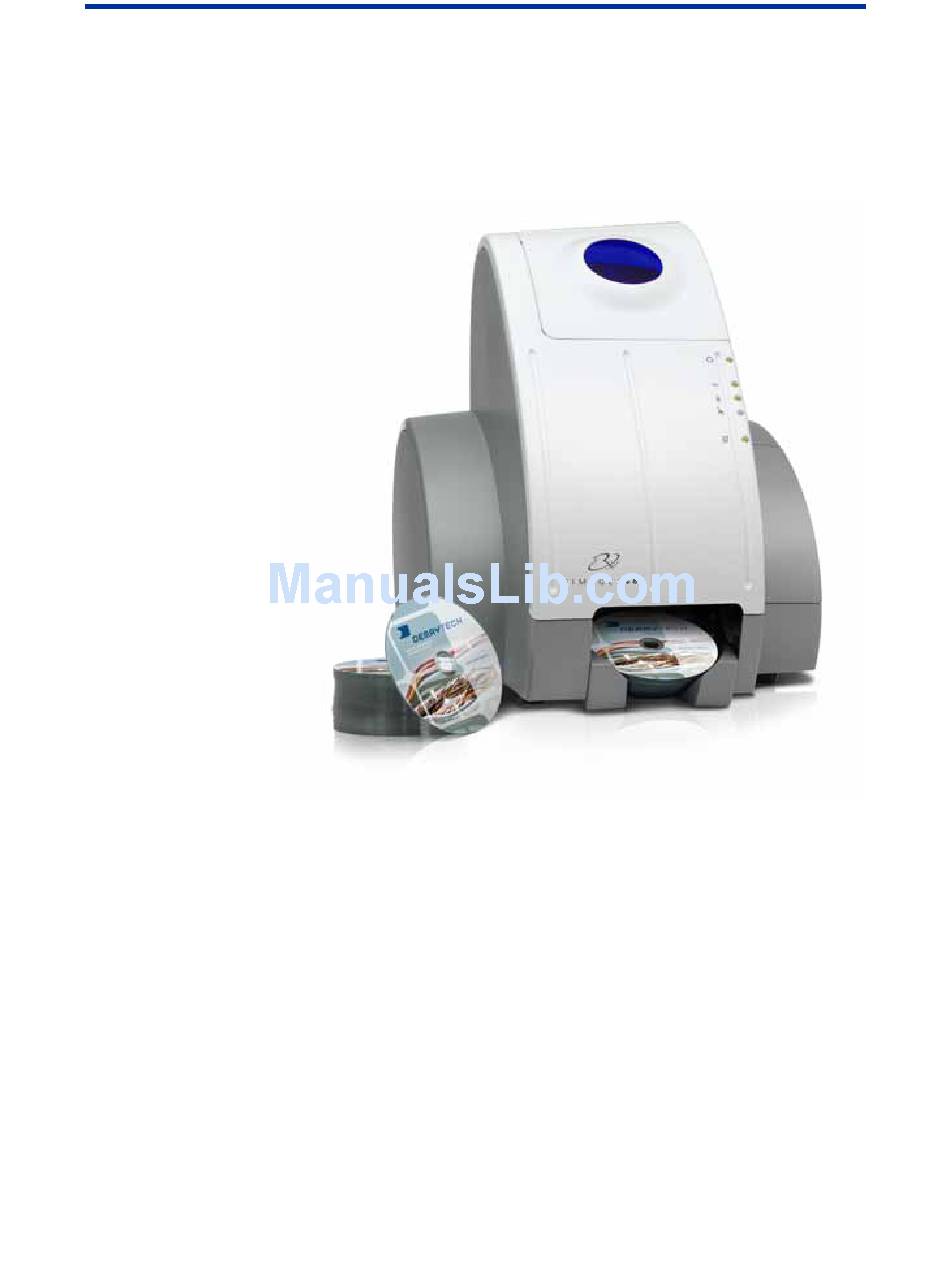

    ™ Rimage 360i User Guide This manual provides the information needed to operate the Rimage 360i and identify the parts. To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide.
  • Page 2 Rimage Corporation reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Rimage Corporation to notify any person or organization of such revisions or changes.

  • Page 3: Support Information

    1. Unit serial number and software version. 2. Functional and technical description of the problem. 3. Exact error message received. Learn more online At www.rimage.com/support.html, you can experience Rimage’s world-class Support and Services. 1. Select your product family. From your product page you can access:...

  • Page 4: Table Of Contents

    Operating system requirements ... 1 Media requirements... 1 Ink requirements... 2 Label design requirements ... 3 Identify the parts of the Rimage 360i ... 4 Front View ... 4 Rear view ... 7 Operate the Rimage 360i ... 8 Powering on the Rimage 360i ... 8 Pausing the Rimage 360i ...

  • Page 5: Introduction

    Introduction Introduction This manual provides the information needed to operate the Rimage 360i and identify the parts. To set up and install your Rimage 360i, refer to the Rimage 360i Setup and Installation Guide. Requirements Software requirements Windows-based PC The Rimage 360i will operate only with the Rimage 360i Software.

  • Page 6: Ink Requirements

    Rimage 360i Ink requirements Important! You can use only Rimage ink cartridges in the Rimage 360i. The printer will work only with the following printer cartridges. Description Rimage Part Number Black Color Photo Warning: • Ink may be harmful if swall •...

  • Page 7: Label Design Requirements

    23 mm • Media – The media that is in Rimage Media Kits™ has a hub area of 23 mm and a printable area of 118 mm. On most labels, print settings of 24 mm and 118 mm are recommended.

  • Page 8: Identify The Parts Of The Rimage 360I

    Rimage 360i Identify the parts of the Rimage 360i This section describes the Rimage 360i hardware and its features. Front View Input Door Project Status Indicator (PSI) Front Cover Disc Output Cartridge Access Door 110808_G...
  • Page 9 Rimage 360i Buttons On the right side of the Rimage 360i, there is one button. Inside the front cover of the 360i, there are three buttons. 110808_G Identify the parts of the Rimage 360i Pause button Press this button once to pause the Rimage 360i.
  • Page 10 The disc in motion indicator light blinks green when the disc is in motion. motion The disc in motion indicator light blinks amber when the Rimage 360i is out of blank discs. The disc in recorder indicator light is solid green when the disc is in the recorder.

  • Page 11: Rear View

    Identify the parts of the Rimage 360i Rear view Filter Cover Rear Cover Power Switch Power Cord Port USB 2.0 Port 110808_G...

  • Page 12: Operate The Rimage 360I

    Rimage 360i Operate the Rimage 360i This section provides the information that you need to produce CDs or DVDs with the Rimage 360i. Powering on the Rimage 360i 1. To power on the Rimage 360i, press the power switch on the rear of the Rimage 360i.

  • Page 13: Loading The Discs

    Operate the Rimage 360i Loading the discs 1. Open the input door. 2. Place up to 25 discs in the disc input with the printable side facing out. 3. Close the input door. 110808_G...

  • Page 14: Setting Up Your Printing Preferences On A Windows-Based Pc

    Rimage 360i Setting up your printing preferences on a Windows-based PC Printing Preferences allows you to set up and run your Rimage 360i to produce the best possible label on your discs. Through Printing Preferences, you can: Set the print quality...

  • Page 15: Setting The Print Quality

    Select OK. The Watermark Details window closes. If you want the watermark to print only on the first disc, select the First Page Only checkbox. When you have made the desired choices, select OK. closes. 110808_G Operate the Rimage 360i The Disc Color 360i Properties window...

  • Page 16: Adjusting The Ink Volume Used

    Rimage 360i Adjusting the ink volume used This functionality allows you to adjust the amount of ink that is used. 1. Navigate to Printing Preferences (refer to page 10). 2. Select the Basics tab. 3. Select Advanced Features. The Advanced Features window opens.

  • Page 17: Changing The Printable Area Settings

    Diameter and Inner Diameter settings to the value measured in step a before changing any other diameter settings. c. In the Standard Area Settings field, change the Inner Diameter to the same value used in step b. Operate the Rimage 360i select OK.

  • Page 18: Aligning The Ink Cartridges

    Align the ink cartridges. From the Disc Color Printer 360i Printing Preferences window, select the Service tab. Select Service ToolBox. The Rimage Service Toolbox window opens. Select Align Cartridges. The Align Cartridges for Disc Color 360i dialog box opens. To align the ink cartridges, follow the instructions in the Align Cartridges for Disc Color 360i dialog box.

  • Page 19: Centering The Image On The Disc

    Centering the image on the disc The Rimage 360i provides two ways to center the image on the disc. You can use the Auto Centering method or the Manual Centering method. The Auto Centering method is accurate to within +/- 0.5 mm. You can improve the centering position accuracy with the manual centering adjustment to better than +/- 0.2 mm.

  • Page 20: Maintain The Rimage 360I

    Rimage 360i Maintain the Rimage 360i The procedures in this section will help keep your Rimage 360i in optimum operating condition. General Cleaning Tip: To keep your Rimage 360i clean, keep it in a dust free environment. Tip: Use only Rimage inkjet print...

  • Page 21: Replace Consumables

    The fan filter is a consumable item. You will need to change the fan filter after 20 ink cartridges. Use this procedure to change the fan filter. 1. On the rear of the Rimage 360i, press the tab on the filter cover and lift up the filter cover.

  • Page 22: Replacing The Ink Cartridges

    Rimage 360i Replacing the ink cartridges Use this procedure to change the ink cartridges on your Rimage 360i. Important! You must use the appropriate ink cartridges in one of the configurations listed on page 2. 1. Open the ink cartridge access door. The ink cartridge carriage moves to an accessible position on the carriage guide.

  • Page 23: Learn More

    Learn More Rimage 360i Specifications Standard System One disc recorder, Rimage 360i with internal Rimage 360i Disc Color Printer assembly, and software. Software requirements Rimage 360i Software (PC) Input bin capacity 25 Discs Output capacity 25 Discs Physical size Width – 15.25” (38.7 cm) Height –...

  • Page 24: Compliance Testing

    Rimage 360i Compliance testing Product name: Rimage 360i Model: RAS17 Notice for USA Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
