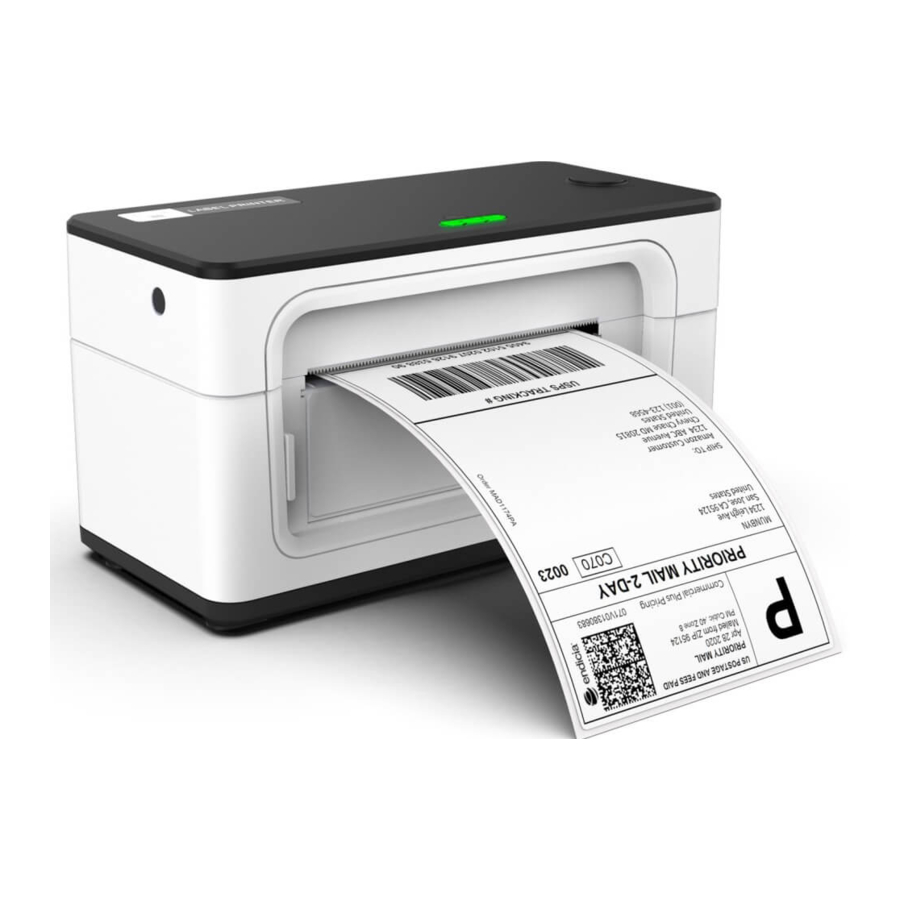

MUNBYN ITPP941AP - Printer Manual

Table of Contents

Contents

1 Product Introduction
- 1.1 What's in the package?
- 1.2 Printer features
2 Set Up The Printer
3 Pro Tips
4 FAQ (Frequently-Asked Questions)
5 LED Status
6 Specification
7 Safety Notices
8 Technical Support
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Product Introduction

What's in the package?

If contents are missing or damaged, please contact us.

24-hour Munbyn after-sales service on working days

WhatsApp: +8617817881067
E-mail Support@munbyn.com

Printer features

Set Up The Printer

Watch the short setup video at: munbyn.biz/947APBoxing

Quick printer connection

Power off
Connect the power cord and plug in the power supply
Power on

Use MUNBYN APP to configure network for printer on mobile phone

Use the MUNBYN APP to configure the network for the printer on your "Munbyn Print" on the App Store or Google app. Alternatively, you can scan the QR code app.

information Note: The app requires local file access and Bluetooth function to run properly. Please follow the guide to grant the necessary permissions to the app.
Use MUNBYN APP - Step 1

After downloading, open the MUNBYN APP, select ITPP941AP, and click "0K" as shown in the picture:
After the software searches for the device, select the Bluetooth device and ensure that the printer and your device are on the same Wi-Fi network. Input the Wi-Fi password and click "Determine," as shown in the figure below:
After the printer has successfully connected to the network, a pop-up window indicating the successful connection will appear, as shown in the picture:

Connect the printer with the iPhone

Connect the printer to the iPhone:
Open the file you want to print, tap the "More Options" button in the upper-right corner, and then tap "Print."
The print preview screen is displayed.
Select the printer that is connected to the same Wi-Fi network.
After making the selection, adjust the relevant parameters and click on "Print."

Connect the printer with the Android

information Note: Android system supports only the 4x6-inch size option.

Open the file you want to print, click more options in the upper right corner, and click Print.
The print preview screen is displayed.
Select ITPP941AP, select the corresponding label paper and input the number of printed copies as required.
Clicking the print button.

Connect the printer on computer with MacOS System

Make sure your computer is connected to the same WiFi network/network segment that the printer just connected. (You can print a self-check page to see which network the printer is currently connected)
Add the printer of the corresponding model to the printing device and wait until the system completes adding the printer.
Open the file you want to print, click the "Print" button, and then select "ITPP941AP" on the Print preview page.

Connect the printer on computer with Windows System

information Note: To enhance your user experience on a Windows system, we recommend clicking the link below to install the printer driver. This will facilitate future adjustments to parameters such as size and print density.

Download link: munbyn.biz/941apwind

Make sure your computer is connected to the same Wi-Fi network/network segment that the printer just connected to (You can print a self-cheek page to see which network the printer is currently connected to).
Add the printer to the Windows device and wait for the system to finish adding the printer.(lt will take about 2 mins for the Windows system to configure the AP function, please wait patiently.)
Open the file to be printed, click the Print button, and select ITPP941AP on the Print preview page.

Connect the printer on computer with ChromeOS System

Please visit the following link and refer to the operation in the video to configure the ITPP941AP on Chromebook: https://munbyn.biz/ChromeAP

Label setup

Automatic label identification
Label setup

Load no less than 4 consecutive labels into the printer.
After the paper is stable, press and hold feeder button, until you hear a beep.
Then, the printer will automatically label identification.
Pay attention to the front and back sides of the label.

Pro Tips

Anytime you change your label, run the automatic label identification.
Press the feeder button on the printer to skip a blank label.
To run a self-test, press and hold the feeder button until you hear two short beeps.
Avoid poor quality labels as they can damage the printer.
Regularly clean the printer head.
If the paper is jammed and the red light flashes, run Automatic label identification.
Insert Munbyn into the same USB port on your computer every time.

This will avoid creating duplicate copies of the printer in your operating system.

FAQ (Frequently-Asked Questions)

How to maintain the print head?
Here is the video to maintain the print head: munbyn.biz/clean

Here are the steps that maintain the print head

Please turn printer off and allow it to cool down (about half a minute)
Please use alcohol wipes or wipes to clean the print head marked at the following picture.

Please wait 2-5 minutes until the print head dry, then turn the printer on.
Please use high-quality thermal label paper (such as Munbyn label paper) as much as possible to prevent the inferior label paper from peeling off and remaining on the print head, which will affect the life of the print head.paper) as much as possible to prevent the inferior label paper from peeling off and remaining on the print head, which will affect the life of the print head.the following picture.

Why is the printed label not clear?

Try to choose PDF file format for printing instead of PNC, PIG, and other image formats, when the barcode you print out is light (please refer to the picture)
In the print preview interface, switch the print quality option from 'Normal' to 'Best'.
If it is still not clear for the label, you can wipe the print head with alcohol wipes or wet tissues. For more questions, please visit: https://support.munbyn.com/hc/en-us

Why is there partial content missing in the printed labels?
This may be due to your document using colors with lower contrast. We recommend switching the print quality option from 'Normal' to 'Best.' Additionally, you can increase the color contrast of your document to resolve this issue.

LED Status

Light	Description	Troubleshoot
Green	Normal operation	/
Flashing Red (every 1 second)	Label paper is not identified (if not out of paper)	Press and hold the feeder button for one beep to run label identification
Flashing Red (every 1 second)	Out of Paper	Load labels
Flashing Red (every half a second)	Cover is not closed	Check that the cover is completely closed
Flashing Green and Red	Printer head is overheated	Printer will automatically resume once the printerhead has cooled down
Green and Blue	Wi-Fi connected
Flashing Green	WPS Mode	Press WPS button on your router or wait 120 second to exit

Specification

Press the feeder button once to feed one label through.
Press and hold the feeder button for one beep to run label identification
Press and hold the feeder button for two short beeps to print a test page.
Press and hold the feeder button for four short beeps to enable WPS mode.

Method	Direct Thermal
Resolution	203 dpi/ 300 dpi
Max Printing Speed	150 mm/s
Paper Width	40-110 mm (1.57-4.3 inches)
Paper Thickness	0.06-0.25 mm
Power Adapter	24V / 2A
Printing Life	TPH 100km
Operating Environment	Temperature: 0 to 50C Humidity: 10-90% (non condensing)
Storage Environment	Temperature: -40 to 80C Humidity: 5-95% (non condensing)
Connection	USB / Wi-Fi
Weight	1.90 lbs / 0.9kg
Dimensions	D 198mm * W 96mm * H 109mm

Safety Notices

The printer head can become very hot after printing labels. Do not touch the printer head.
Do not bend the power cord excessively or place objects on the cord.
Do not use the printer if you find any irregularities, as these could result in fire or electrocution.
Keep the printer out of reach of children.
Use only approved accessories and do not try to disassemble, repair the unit by yourself.
Keep the printer away from water and other objects that could penetrate the components.
Please unplug the printer when it is not in use for long periods.
If you have problems connecting to the printer with the Munbyn Print App, you can try to restart the App or reinstall the App. If your problem is still not resolved, please contact us.

Technical Support

If you encounter any issues with the product, please contact us promptly.
E-mail: support@munbyn.com
WhatsApp: +86 133 5295 0490
Phone: +1 650 206 2250
Skype: munbyn
Support time: Monday to Friday 24 hours

MUNBYN provides a 24-month warranty and lifetime free service. If you encounter any issues with the product, please contact the MUNBYN team to promptly receive troubleshooting tips or a replacement. Visit our website at www.munbyn.com for how-to videos and warranty details.

Website: www.munbyn.com (how-to videos, warranty details)
