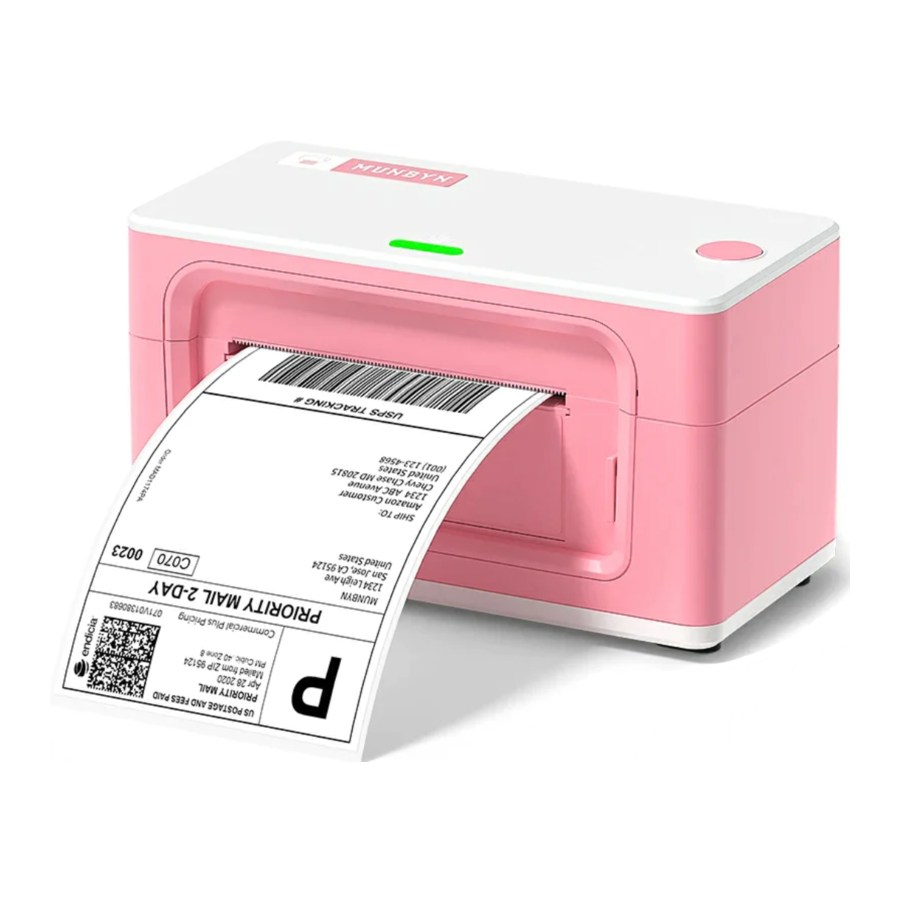

MUNBYN ITPP941B - Thermal Logistics Label Printer Manual

Table of Contents

Contents

1 Product Introduction
- 1.1 What's in the package?
- 1.2 Printer Overview
2 Set Up The Printer
3 Pro Tips
4 FAQ
5 LED Status
6 Feeder Button Instruction
7 Specification
8 Safety Notices
9 Tech Support
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Product Introduction

What's in the package?

Printer
USB Cable
Adapter
Power Cord
Quick Tips
Labels
User Manual

If contents are missing or damaged, please contact us.
Type-C cable and USB flash drive are not included in regular accessories of ITPP941B.

Printer Overview

Set Up The Printer

Recommended:
Watch the short setup video at: www.munbyn.biz/unboxing

Quick printer connection

Please follow the sequence of the above picture to operate.

Label setup

Automatic label identification:
Label setup - Automatic label identification

Load no less than 4 consecutive labels into the printer.
After the paper is stable, press and hold feeder button, until you hear a beep.
Then, the printer will automatically label identification.

Driver Installation

For the latest driver, please visit: www.munbyn.biz/941bd

Please run the downloaded software from the web address indicated above and follow the prompts to complete installation.

Windows Driver Installation

Mac Driver Installation

Ubuntu Driver Installation

Bluetooth connection

(Only for Bluetooth version)

Connect to the App via Bluetooth

. Search "Munbyn Print " on App Store or Google Play to get the App

Google Play

App Store

Initial Setup
Open the "Munbyn Print " and connect to the printer.
If your mobile needs a PIN password, please enter "0000".

Note:

Due to the mobile phone system requirements, the app needs to access your location services information, you'll get a notification requesting permission. You need to enable GPS and confirm authorization (Android only).

Pro Tips

Anytime you change your label, run the automatic label identification.
Press the feeder button on the printer to skip a blank label.
To run a self-test, press and hold the feeder button until you hear two short beeps.
Avoid poor quality labels as they can damage the printer.
Regularly clean the printer head.
If the paper is jammed and the red light flashes, run Automatic label identification.
Insert Munbyn into the same USB port on your computer every time. This will avoid creating duplicate copies of the printer in your operating system.

FAQ

FAQ file, please visit: www.munbyn.biz/941bfaq

LED Status

Light	Description	Troubleshoot
Green	Normal operation	/
Flashing Red (every 2 seconds)	Label paper is not identified	Run automatic label identification
Flashing Red (every 1 second)	Cover is not closed	Check that the cover is completely closed
Flashing Green and Red	Printer head is overheated	Printer will automatically resume once the printer head has cooled down

Feeder Button Instruction

Printer status	Feeder button	Function
Printing	Press the button	Pause printing
Standby	Press and hold on until you hear one beep	Automatic label identification
Self-test	Press and hold on until you hear two beeps	Print self-test page
Standby	Press and hold on until you hear five beeps	Reset Printer

Specification

Method	Direct Thermal
Resolution	203 dpi; 300 dpi
Max Printing Speed	150 mm/s
Paper Width	40-110 mm (1.57-4.3 inches)
Paper Thickness	0.06-0.25 mm
Power Adapter	24V / 2A
Printing Life	TPH 100Km
Operating Environment	Temperature: -10 to 50°C Humidity: 10-90% (non condensing)
Storage Environment	Temperature: -40 to 80°C Humidity: 5-95% (non condensing)
Connection	USB;Bluetooth (Only for Bluetooth version)
Weight	1.90 lbs / 0.9kg
Dimensions	D198 mm * W 96mm * H 109 mm

Safety Notices

The printer head can become very hot after printing labels. Do not touch the printer head.
Do not bend the power cord excessively or place objects on the cord.
Do not use the printer if you find any irregularities as these could result in fire or electrocution.
Keep the printer out of reach of children.
Use only approved accessories and do not try to disassemble, repair the unit by yourself.
Keep the printer away from water and other objects that could penetrate the components.
Please unplug the printer when it is not in use for long periods.
If you have problems connecting to the printer with the Munbyn Print App, you can try to restart the App or reinstall the App. If your problem is still not resolved, please contact us.

Tech Support

E-mail: support@munbyn.com
Whatsapp: +8617817881067
Phone:+1 650 206 2250
Skype: munbyn
Support time:
Monday to Friday 24 hours.

Whatsapp:
+8617817881067

FB message
Mynbynofficial

MUNBYN provides 24 months warranty and lifetime free service.
If you encounter any issues with the product, please contact the MUNBYN team to promptly receive troubleshooting tips or a replacement.
Website: www.munbyn.com
(how-to videos, warranty details)
