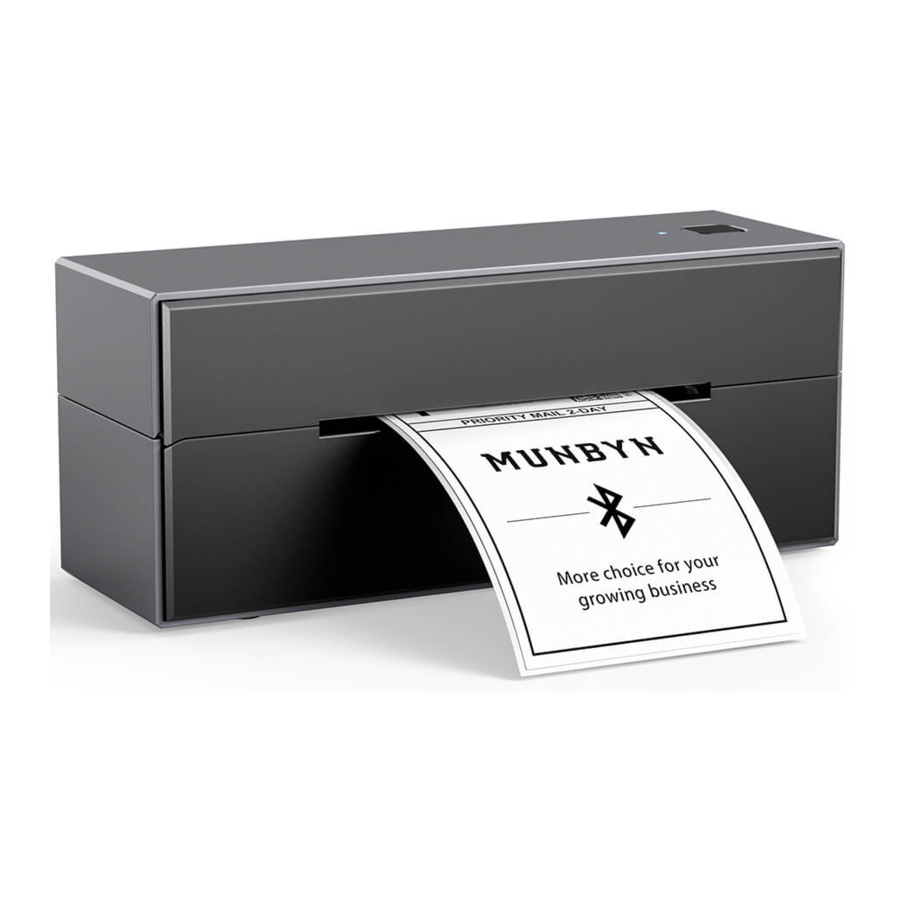

MUNBYN ITPP129S - Printer Manual
Product Introduction
What' s in the package
- USB Flash Drive & Type-C to USB Adapter
- Printer
- PowerCord
- UserManual
- Labels
- Adapter
- USB Cable
- If contents are missing or damaged, please contact us
Specifications
| Method | Direct Thermal |
| Resolution | 203 dpi |
| Max Printing Speed | 150 mm/s |
| Paper Width | 25.4-117mm |
| Paper Thickness | 0.06-0.25 mm |
| Power Adapter | 24V / 2.5A |
| Printing Life | TPH 50KM |
| Operating Environment | Temperature: 5 to 50°C Humidity: 20-85% (non-condensing) |
| Storage Environment | Temperature: -20 to 60°C Humidity: 5-95% (non-condensing) |
| Connection | USB/Wi-Fi |
| Weight | 1.59lb /0.74kg |
| Dimensions | 213x80x95mm (L*W*H) |
Product features
Pro Tips
- Anytime you change your label, run the automatic label identification.
- Press the circle feeder button on the printer to skip a blank label.
- To run a self-test, press and hold the feeder button until the blue light flash once.
- Avoid poor quality labels as they can damage the printer head.
- Regularly clean the printer head.
- If the paper is jammed and the blue flashing slowly, run automatic label identification.
- Insert Munbyn into the same USB port on your computer every time. This will avoid creating duplicate copies of the printer in your operating system.
FAQ
FAQ file, please visit
www.munbyn.biz/129Sfaq
LED Status
| Light | Printer Status |
| Solid blue | Standby |
| Blue flashing slowly | Label jams or label detection error |
| Blue flashing quickly | Wrong media tracking |
| Solid red | Printer head is over-heated |
| Red flashing slowly | Paper shortage |
| Red flashing quickly | Cover is not closed |
| Solid purple | Printing |
| Purple flashing quickly | Pause printing |
Feeder Button Instruction
| Desired Action | Execution |
| Skip a label | When the printer is standby(not in the middle of printing), press the Feed Button once. |
| Restore factory setting | Insert the label, ensure it is straight and smooth. When the printer is standby and ready, press and hold the Feed Button for about 10 seconds while the blue light flashes 4 times, then release the Feed Button. |
| Run the automatic label identification (for labels with black marks) | Insert the label, ensure it is straight and smooth. When the printer is standby and ready, press and hold the Feed Button for about 8 seconds while the blue light flashes 3 times, then release the Feed Button. |
| Run the automatic label identification (for labels with gaps) | Insert the label, ensure it is straight and smooth. When the printer is standby and ready, press and hold the Feed Button for about 6 seconds while the blue light flashes 2 times, then release the Feed Button. |
| Print test page | Insert the label, ensure it is straight and smooth. When the printer is standby and ready, press and hold the Feed Button for about 4 seconds while the blue light flashes once, then release the Feed Button. |
| Pause printing | When the printer is printing, press the Feed Button once. |
| Resume printing | When the printer pauses printing, press the Feed Button once to resume printing. |
| Clear printing data | When the printer pauses printing, press the Feed Button twice to clear the printing data. |
Safety Notices
- The printer head can become very hot after printing labels. Do not touch the printer head.
- Do not bend the power cord excessively or place objects on the cord.
![burn hazard]()
![shock hazard]()
Do not use the printer if you find any irregularities as these could result in fire or electrocution.- Keep the printer out of reach of children.
- Use only approved accessories and do not try to disassemble, repair the unit by yourself.
- Keep the printer away from water and other objects that could penetrate the components.
- Please unplug the printer when it is not in use for long periods.
Tech Support
E-mail: support@munbyn.com
Whatsapp: +86 1335 295 0490
Phone: +1 650 206 2250
Skype: munbyn
Support time:
Monday to Friday 24 hours
WhatsApp
+86 13352950490
FB message
Munbynofficial
MUNBYN provides 24 months warranty and lifetime free service.
If you encounter any issues with the product, please contact the MUNBYN team to promptly receive troubleshooting tips or a replacement.
