Product Introduction

What's in the package

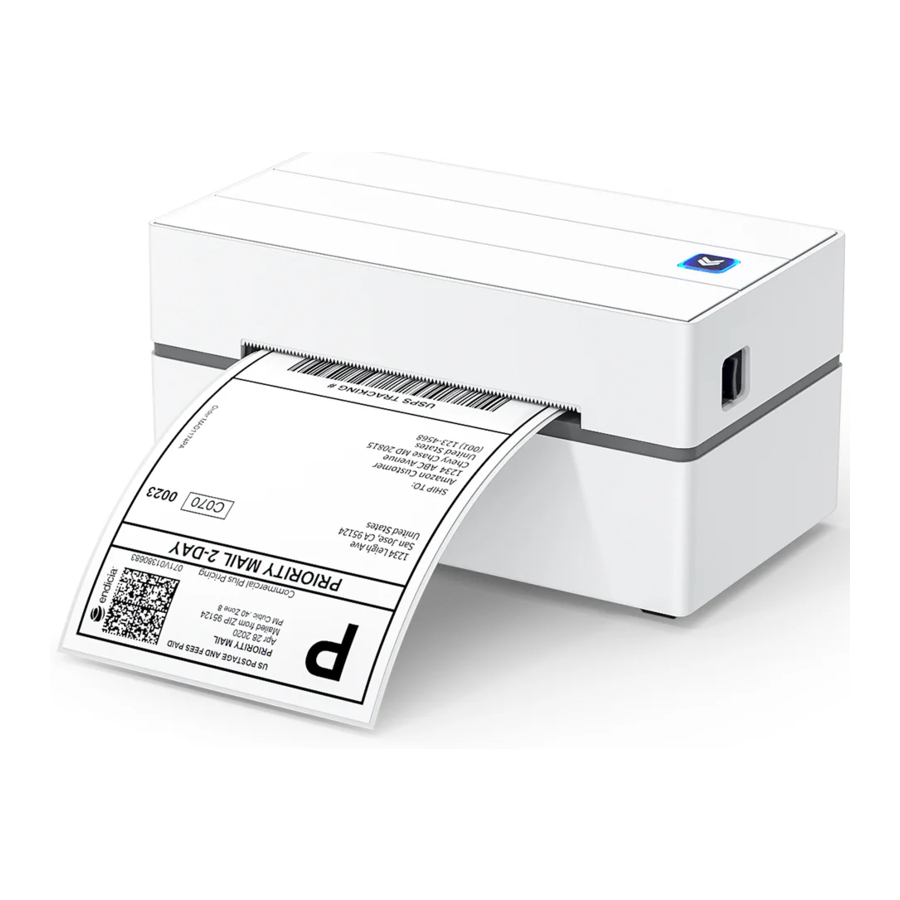

Printer
USB Flash Drive
USB Cable
Power Adapter
Power Cord
User Manual
Quick Tips
Labels

If contents are missing or damaged, please contact us.

Product features

Set Up The Device

Recommend:
Watch the short setup video at: https://munbyn.biz/130Bvideo

Quick device connection

Set Up The Device - Quick device connection

Please follow the sequence of the above picture to operate.

Label setup

Set Up The Device - Label setup
Automatic label identification:
Load no less than 4 consecutive labels into the printer. Once the paper is stable, press and hold feeder button, until you hear a "beep". Then, the printer will automatically label identification calibrate the label

BIuetooth connection for Smartphone/TabIet

The printer is suitable for bluetooth of mobile phones and tablets, not compatible with bluetooth of computers, And the printer cannot be connected directly via the Bluetooth of the device, it needs to be connected using the Munbyn print APP.

Connect the unit through the Munbyn Print APP

Search "Munbyn Print" on App Store or Google Play to get the App or scan the QR code below to download

Scan the QR code tutorial below to set it up
If your mobile needs a PIN password, please enter "0000".

Note:
Due to the mobile phone system requirements, the app needs to access your location services information, youlll get a notification requesting permission. You need to enable CPS and confirm authorization (Android only).

USB connection for Laptop/PC

Follow step (Quick device connection) to connect the computer and printer using the USB cable.
Download the printer driver from the following URL or insert the USB flash drive into your computer, and follow the next two steps to complete the installation.

Note: For the latest driver, please visit: https://munbyn.biz/130BD

Windows Driver Installation

Downloaded software from the web address or insert the USB flash drive into your computer, open the driver installation package, Click on the.exe file for Windows computers, and follow the steps below to install
Windows Driver Installation - Step 1

Mac Driver Installation

Downloaded software from the web address or insert the USB flash drive into the computer, open the driver installation package, click the.dmg file of the Mac computer, and follow the steps below to install
Mac Driver Installation - Step 1

Pro Tips

Anytime you change your label, run the automatic label identification.
Press the feeder button on the printer to skip a blank label
To run a self-test, press and hold the feeder button until you hear two short beeps.
To ensure your printing quality, please use MUNBYN labels. If you use other brandsl label paper, please run "automatic label identification" before printing.
Regularly clean the printer head.
If the paper is jammed and the red light flashes, run Automatic label identification.
Insert Munbyn into the same USB port on your computer everytime. This will avoid creating duplicate copies of the printer in your operating system.

FAQ

FAQ file, please visit: https://munbyn.biz/130B-FAQ

LED Status

Light	Description	Troubleshoot
Blue	Normal operation
Green	Bluetooth connected
Flashing Red (every 2 seconds)	Label paper is not identified	Run automatic label identification
Flashing Red (every 1 second)	Cover is not closed	Check that the cover is completely closed
Flashing Blue and Red	Printer head is overheated	Printer will automatically resume once the printer head has cooled down

Feeder Button Instruction

Printer status	Feeder button	Function
Standby	Press and hold on until you hear one beep	Automatic label identification
Standby	Press and hold on until you hear five beeps	Reset Printer

Specification

Method	Direct Thermal
Resolution	203 dpi
Max Printing Speed	150 mm/s
Paper Width	40-110 mm (1.57-4.3inches)
Paper Thickness	0.06-0.25 mm
Power Adapter	24V / 2.5A
Printing Life	TPH 50Km
Operating Environment	Temperature: 0 to 45°C Humidity: 10-90% (non condensing)
Storage Environment	Temperature: -10 to 50°C Humidity: 10-80% (non condensing)
Connection	Bluetooth / USB
Weight	1.76 lbs/0.8kg
Dimensions	182x99x87mm (LWH)

Safety Notices

The printer head can become very hot after printing labels. Do not touch the printer head.
Do not bend the power cord excessively or place objects on the cord.
Do not use the printer if you find any irregularities as these could result in fire or electrocution.
Keep the printer out of reach of children.
Use only approved accessories and do not try to disassemble, repair the unit by yourself.
Keep the printer away from water and other objects that could penetrate the components.
Please unplug the printer when it is not in use for long periods.

Tech Support

E-mail: support@munbyn.com
Whatsapp: +86 1335 295 0490
Phone: +1 650 206 2250
Skype: munbyn
Support Time: Monday to Friday 24 hours.

Support Time: Monday to Friday 24 hours.
MUNBYN provides 24 monthsl warranty and lifetime free service. If you encounter any issues with the product, please contact the MUNBYN team to promptly receive troubleshooting tips or a replacement.
