Medela Swing - Breast Pump Manual

Product Description

Take a moment to read through this entire instruction manual before using this product for the first time.
PLEASE SAVE THESE INSTRUCTIONS.
It is best to wait until your breastfeeding routine is established (approximately 4 weeks) before expressing breast milk, unless otherwise advised by your healthcare professional.

Glossary of Terms
2-Phase Expression^® technology – research based technology that mimics a baby's natural nursing rhythm.
Expression Phase – slower sucking/pumping rhythm for gentle and efficient milk removal as quickly as possible.
Maximum Comfort Vacuum^™ – highest vacuum setting where a mother still feels comfortable during pumping. It is different for every mother.
Stimulation Phase – fast sucking/pumping rhythm to stimulate the milk ejection reflex and to start the milk flowing.

Intended Use
For lactating women to express and collect milk from their breasts to complement breastfeeding.
If you have medical reasons or other needs for exclusively pumping, it is recommended that you use a hospital grade breast pump such as our Symphony Breast Pump. To learn more, visit us at www.medelabreastfeedingus.com.

Product Description

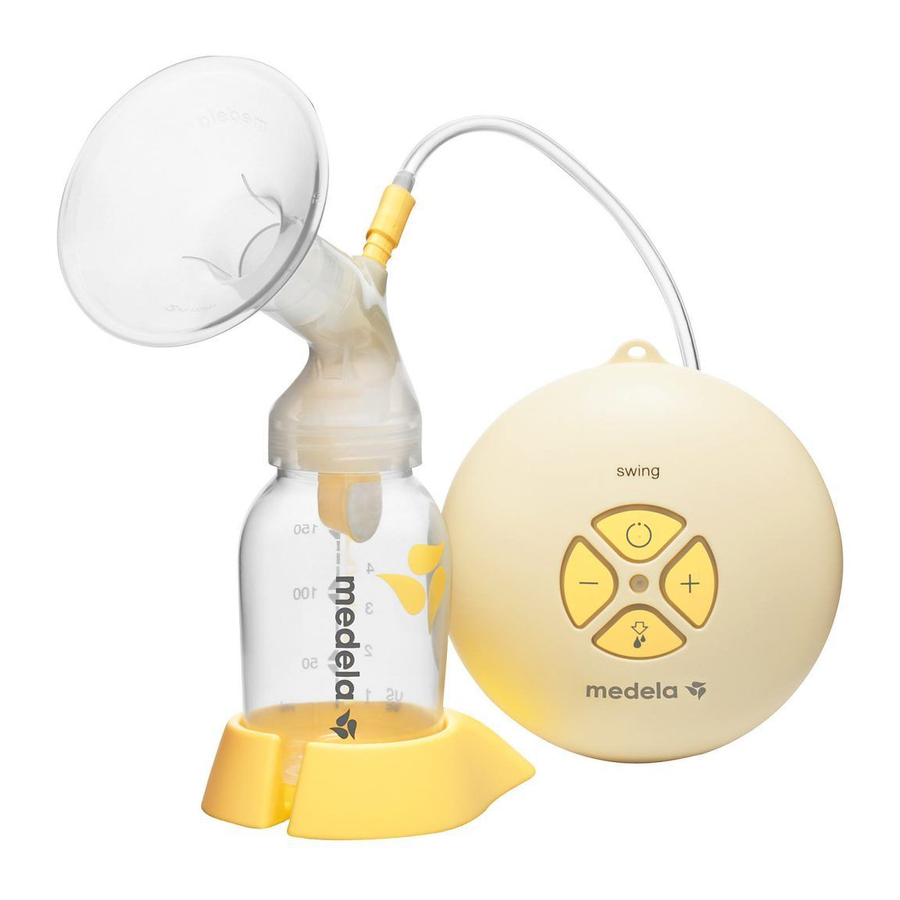

Swing ® is a personal use electric breast pump that includes 2-Phase Expression technology and is capable of single pumping.

Cleaning

Before using for the first time

Clean and sanitize the parts below before using your pump for the first time. Follow the cleaning and sanitizing instructions.

• Breast shield

• White membrane

• Breast milk bottle and lid


• Connector

• Yellow valve


After each use

Clean all parts that come in contact with your breast and breast milk.

Supplies Needed:

• Mild Dish Soap
• Clean Dish Towel or Soft Brush

• Clean Sink or Bowl
• Quality Drinking Water

Washing Options:

5. Washing in sink:


• Soak all separated parts in warm soapy water for 5 minutes.
• Clean with a clean dish-cloth or soft brush.
• Rinse all separated parts with clear water.
• Allow all parts to air dry in a clean area.
• Store dry parts when not in use.

• You may wash your kit parts by following the instructions on the Quick Clean Breast Milk Removal Soap bottle.


Note

• Wash breast pump kit parts after each use.
• Sanitize breast pump kit parts once daily.
• The pump kit requires no maintenance.
• Take care not to damage parts of the pump kit during cleaning.
• If the individual components of the pump kit are cleaned in a dish washer parts may be discolored by food pigments. This has no impact on the function.
• Store the pump kit in a clean bag/container until next use.

Sanitize daily

Wash hands thoroughly.

1. Separate all parts that come in contact with your breast and breast milk.

2.


• Fill a pot with enough water to cover all parts.
• Bring water to a boil.
• Place parts in boiling water for 10 minutes.

3. Allow water to cool and gently remove parts from water with tongs.

4.


• Place parts on a clean surface and/ or towel.
• Allow all parts to air dry.
• Store dry parts when not in use. Do NOT store wet or damp parts.

or
You may sanitize your kit parts by following the instructions on Medela's Quick Clean ™ Micro-Steam bag. (Do not sanitize tubing in Micro-Steam bag.)

Tubing and Motor Unit Cleaning

1. Turn off breast pump.

2. Unplug breast pump from power source.

3. Remove tube from motor unit.

4. Remove tube from connector.

5. Rinse tube in cool water to remove breast milk.

6.


• Wash tube in warm soapy water.
• Rinse tubing with clear water.
• Hang to air dry.

7. Wipe off with a clean, damp cloth.


Assembly

Parts you will need for this step:

• Motor unit

• Breast shield

• White membrane

• Breast milk bottle and lid


• Tube

• Connector

• Yellow valve


Note

• Inspect valves for cracks or chips and inspect membranes for holes, tears or warping. If you notice any damage to these parts, replace them immediately.

Info

• Carry out all the steps with care and assemble the pump kit correctly for optimum performance.

Assembly of pump kit

1. Wash hands before touching breast pump, kit and breasts and avoid touching the inside of containers or lids.

2. Snap membrane onto valve until membranes lies completely flat on valve.

3. Push yellow valve securely onto inner ring of connector.

4. Screw bottle onto connector.

   • Wash hands thoroughly with soap and water before touching the breast and pump parts.
5. Insert PersonalFit ™ breast shield into top opening on connector.

6. Insert hard yellow adaptor end of tube into connector.

7. Insert the triangle end of tube into triangle port on motor unit.




   Twists, kinks or bends

   • Use only the power adaptor supplied with your Swing Breast Pump.
   • Always inspect the power adaptor prior to use for damaged, kinked, twisted, frayed or exposed wires. If damaged, immediately discontinue use and call Medela Customer Service at 1-800-435-8316.

   Note

   • See Section Battery Compartment for instructions on the use of the Battery Compartment.
   • See Section Traveling Outside the U.S. for information on using your device internationally.
8. Plug the metal end of the power cord into the power adaptor port.

9. Plug power adaptor into a standard electrical outlet.


PersonalFit ™ Sizing

1. Medela's PersonalFit sizing
   Pumping should not hurt. For maximum comfort and pumping efficiency, Medela offers five breast shield sizes.
   Visit MedelaBreastShields.com to view the full guide to help you determine your optimal size based on your nipple diameter.


2. Test your breast shield size
   1. Start with the 24 mm that came with your pump, or the size determined by measuring.
   2. Center nipple and gently hold breast shield against your breast.
   3. Adjust for Maximum Comfort Vacuum™, to achieve optimum suction level.
   4. Refer to images while pumping in expression.

Too Small

• Nipple rubs along side of tunnel
• Try a larger size

Too Large

• Nipple and excessive areola are pulled into the tunnel
• Try a smaller size

If you answered "YES" to any of these questions, consider trying a new size by following the measuring instructions above.
If you are still unsure if you selected the correct size, see a lactation consultant, breastfeeding specialist, or visit MedelaBreastShields.com for assistance in choosing the right size breast shield.

• While some discomfort may be felt when first using a breast pump, using a breast pump should not cause pain. If you are unsure about breast shield sizing, please contact a healthcare professional or breastfeeding specialist who can help you get a proper fit.

Powering your pump

Power Adaptor Care
To care for your adaptor be sure to follow these storage directions.

Do not unplug power adaptor by pulling on the cord.

Correct!

Note

• Remove the batteries if they are not going to be used for an extended period of time.
• If breast pump does not turn on, make sure the batteries have been inserted properly. If this does not solve the problem refer to the troubleshooting section of this instruction booklet or contact Medela Customer Service at 1-800-435-8316.
• Each set of batteries will provide approximately 2 hours of pumping time.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.

Battery Compartment

1. Use 4 AA batteries.

2. Replace all batteries at the same time.
   Remove battery cover by pushing the button toward the clip.

3. Place the NEGATIVE (-) end of the battery against the front of the spring by pushing the battery in and down in one motion until the battery snaps into place. The POSITIVE (+) end of the battery should be near the positive sign on the battery pack.

4. Replace battery cover.


Note

• While travelling internationally, we recommend purchasing a Universal Power Plug Adapter (not included). Please consult with the country you are visiting to find out what type of adaptor will work best. For information about traveling with your breast pump and expressed breast milk, visit www.TSA.gov.

Pumping

• Always inspect breast shield, connector, white membrane, yellow valve, and tube prior to use for cleanliness.
• If you experience pain while pumping seek advice from your healthcare professional or breastfeeding specialist.
• Do not try and express with vacuum that is too high and uncomfortable (painful). The pain, along with potential breast and nipple trauma, may decrease milk output.
• Make sure tube is not kinked or pinched while pumping.
• Contact your healthcare professional or breastfeeding specialist if you can express only minimal or no milk or if expression is painful.

Info

• Research has shown that you will pump more efficiently – get more milk in less time – when pumping at Maximum Comfort Vacuum during the Expression Phase.
• You should reassess your Maximum Comfort Vacuum throughout your pumping experience because it can change during the different stages of lactation.
• Do not tilt or overfill containers when pumping.
• Do not kink tubing.

Device Operation

1. Wash hands before touching breast pump, kit and breasts and avoid touching the inside of containers or lids.

2. Center the assembled breast shield over your nipple.

3. Hold the breast shield onto your breast with your thumb and index finger. Support your breast with the palm of your hand.

4. Switch on the breast pump with. Your pumping session will start in the Stimulation Phase.

5. After two minutes, the pump will automatically change to the Expression Phase.


1. If you let-down (your milk starts to flow) sooner than 2 minutes, press the let-down button.
2. If let-down has not happened during the Stimulation Phase and the pump has switched to the Expression Phase, press the on/off button to turn the pump off. Press the on/off button again to turn the pump back on to go back to pumping in the Stimulation Phase.

6. The vacuum can be adjusted in every phase. Comfort vacuum: Use to increase the vacuum until it is slightly uncomfortable. Then press to dial it back minimally.
   Note: The LED light will flash rapidly when you have reached minimum and maximum pumping settings.


Note

• Always disconnect Swing ® from the power source after expression.
• Only fill the bottle to the 150 mL mark.
• Swing switches off automatically 30 minutes after last setting adjustment.

Info

• How often should you pump? A breast pump is a replacement for when you are separated from your baby. It is important to pump when the baby would be breastfeeding, which usually means a working mother pumps 2-3 times during an 8 hour working day.
• How long should your pumping session last? Pumping times can vary from mother to mother sometimes 15 minutes, sometimes up to 30 minutes.
• How should your breasts feel after pumping? After pumping, your breasts should feel soft and there should be no firm areas. Before pumping, your breasts will have a firm, heavy feeling. After pumping make sure your breasts are not firm or have lumpy areas. This could indicate that the breast is not draining all over.

7. Switch off the breast pump with .

8. Close the bottle with a lid. Follow the instructions in Section "Storing and thawing breast milk". Use bottle stand to prevent the bottle from tipping over.

9. Unplug breast pump from power source.

10. Disassemble and clean per Cleaning Instructions.


Overview of LEDs

Swing ® is small and lightweight, and comes with everything you need.

Mobility

Use on any tabletop or flat surface.

Clip onto your belt or pocket.

Hang around your neck, over your shoulder, or from a hook.

Storing, Preparing and Feeding Breast Milk

Storing Breast Milk

• Do not thaw frozen breast milk in a microwave or in a pan of boiling water.
• Do not microwave breast milk. Microwaving can cause severe burns to baby's mouth from hot spots that develop in the milk during microwaving. (Microwaving can also change the composition of breast milk.)
• When freezing, do not fill container more than 75% full to allow space for expansion. Label container with date of pumping.

References: www.BreastmilkGuidelines.com

Preparing Breast Milk

• Thaw breast milk overnight in the refrigerator. Thawed breast milk is safe in the refrigerator for 24 hours. Do not refreeze thawed breast milk.
• Quickly thaw breast milk by holding the bottle under warm running water.
• Place the sealed bottle in a bowl of warm water for 20 minutes to bring it to body temperature.
• If you are adding expressed breast milk to a container of already frozen breast milk, make sure to add a lesser amount than the already frozen amount.

Feeding Breast Milk

It is recommended that breastfeeding is well established prior to bottle feeding your baby.

• Always inspect the bottle, nipple and other components immediately before and after each use. If nipple appears cracked or torn, discontinue use immediately.
• To prevent possible choking hazard, test strength of nipple by pulling on bulb portion of the nipple.
• Do not attempt to enlarge the nipple hole.
• Infants must not be bottle fed without adult supervision.
• Nipple should not be used as a pacifier.

For additional Breast milk collection and storage information, please visit www.BreastmilkGuidelines.com

Troubleshooting

1. Open the battery cover, remove the foam piece. Wash the foam piece with clear, lukewarm water and squeeze out well. Allow to dry thoroughly.
2. Pour about 2 oz of warm soapy water into a container.
3. Connect the tubing and the power cable onto the pump.
4. Hold the device with the control button upwards over a basin and switch on. Press and ensure that the lowest vacuum level is set by pressing twice.
5. Hold the end of the tubing that is not connected to the pump in the container with the soapy water.
6. The water is pumped through the tubing into the device. Allow it to pump until all the water has been flushed through.
7. Repeat procedure with 1 oz of clear, warm water.
8. Then leave the device switched on for 3 minutes, until the pump is completely dry.
9. As soon as the expanded-plastic liner is dry, put it in place again and close the battery cover.
10. If necessary, clean the pump set according to cleaning instructions "Prior to first use and once daily".

Supplemental Information

Following are some common breastfeeding related conditions. If you experience any of these symptoms, contact a healthcare professional or breastfeeding specialist.

If you have not resolved the problem with your breast pump or your have further questions, please contact Medela Customer Service at 1-800-435-8316 or email customer.service@medela.com.

Technical Specifications

The warning symbol identifies all instructions that are important to safety. Failure to observe these instructions can lead to injury or damage to the breast pump. When used in conjunction with the following words, the warning symbols stand for:

	Can lead to serious injury or death.
	Can lead to minor injury.
NOTE	Can lead to material damage.
INFO	Useful or important information that is not related to safety.
