Medela Pump In Style - Breast Pump Manual

Important safety information

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
The defined signal words identify all instructions that are important to safety. Failure to observe these instructions can lead to injury or damage to the breast pump or yourself. When used in conjunction with the following words, the defined signal words stand for:
When using electrical products, especially when children are present, basic safety precautions should always be followed.

Can lead to serious injury or death.

To avoid fire, electric shock, or serious burns:

• Do not leave product unattended when plugged into an electrical outlet.
• Always unplug electrical product immediately after use.
• Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not place or drop into water or other liquid.
• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
• Never drop or insert any object into any opening or tubing.
• Do not use outdoors, or operate where flammable products, like aerosol (spray), are being used or where oxygen is being administered.
• Always inspect power adaptor and battery pack wires prior to use for damage or exposed wire. If damage is found, immediately discontinue use of power adaptor or battery pack and call Medela Customer Service at 1-800-435-8316.
• The breast pump and detachable components are not heat-resistant: keep away from heated surfaces or open flames.
• Do not use near flammable materials.
• Do not use an electrical outlet that has been exposed to water or other liquids.
• Do not use while bathing or showering.
• Do not run water over breast pump.
• If a device has been exposed to water or other liquids, do not touch, unplug the device from electrical outlet, turn off and contact manufacturer.

Can lead to serious injury or death.

To avoid health risks and reduce the risk of severe injury:

• This product is intended for use by a single user only and should not be shared between users.
• Do not use the pump while operating a moving vehicle.
• Inspect all appropriate pump components before each use.
• Do NOT continue pumping for more than 2 consecutive pumping sessions if no milk is expressed.
• Use the product only for its intended use as described in this manual. Do not use a ttachments not recommended by the manufacturer.
• Pumping while sleeping could result in tissue damage.
• This device cannot be serviced or repaired. Do not repair yourself. Do not modify the device or parts.
• Never use a damaged device. Replace damaged or worn parts.
• Before each use visually inspect the individual components for cracks, chips, tears, d iscoloration or deterioration. In the event that damage to the device is observed, please discontinue use until the parts have been replaced.
• Only use Medela recommended parts with your breast pump.
• Pumping can induce labor. Do not pump until after giving birth. If you become pregnant while breastfeeding or breast pumping, consult with a licensed healthcare professional before continuing.
• If irritation or discomfort occurs, discontinue use and see a doctor.
• If infected with Hepatitis B, Hepatitis C, or Human Immunodeficiency Virus (HIV), pumping breast milk will not reduce or remove the risk of transmitting the virus to your baby through your breast milk.
• Clean and sanitize all parts that come into contact with your breast and breast milk prior to first use.
• Wash all parts that come into contact with your breast and breast milk after every use.
• Close supervision is necessary when this product is used near children or persons with disabilities to prevent strangulation by the tubing or power adaptor cord.

Can lead to minor injury.

• Do not wrap cord around the power adaptor body.
• Use only the breast pump battery pack that comes with the breast pump.
• Plug the power adaptor into the breast pump first and then into the wall socket.
• Never put breast pump in water or a sterilizer, as you can cause permanent damage to the breast pump.
• Do not attempt to remove the breast shield from your breast while pumping. Turn the breast pump off and break the seal between your breast and breast shield with your finger, then remove breast shield from your breast.
• If pumping is uncomfortable or causing pain, turn the unit off, break the seal between the breast and the breast shield with your finger and remove the breast shield from your breast.
• Contact your health care professional or breastfeeding specialist if you can express only minimal or no milk or if expression is painful.
• While some discomfort may be felt when first using a breast pump, using a breast pump should not cause pain. For assistance with correct breast shield sizing and comfort please visit MedelaBreastShields.com (U.S.) or Medela.ca/BreastShields (Canada) or see a lactation consultant / breastfeeding specialist.
• Do not try to express with vacuum that is too high and uncomfortable (painful). The pain, along with potential breast and nipple trauma, may decrease milk output.
• Make sure tubing is not kinked or pinched while pumping.
• Do not hold the pump kit by the bottle. This can lead to blockage of the milk ducts and engorgement.
• Using a breast pump on an aircraft is not recommended. The cabin pressure may affect the breast pump's performance.
• Wash hands thoroughly with soap and water before touching breast pump, kit and breasts, and avoid touching the inside of bottles or lids.
• Separate and wash all parts that are exposed to breast milk immediately after use. This will help remove breast milk residue and prevent growth of bacteria.
• Always inspect breast shields, connectors, membranes, bottles, lids, and tubing prior to use for cleanliness. Contact Medela Customer Service if cleaning does not resolve the issue.
• Only use drinking-quality tap or bottled water for cleaning your breast pump and parts.
• Do not store wet or damp parts as mold may develop.
• Do not run pump with wet tubing. Doing so may damage the breast pump.
• If you are experiencing discomfort at the base of the nipple due to rubbing of your breast tissue against the breast shield tunnel, use of a lubricant such as lanolin may be beneficial. For assistance with correct breast shield sizing and comfort please visit MedelaBreastShields.com (U.S.) or Medela.ca/BreastShields (Canada) or see a lactation consultant / breastfeeding specialist.

NOTICE
Can lead to material damage.

• Do NOT use antibacterial or abrasive cleaners / detergents when cleaning breast pump or breast pump parts.
• Plastic bottles and component parts become brittle when frozen and may break when dropped.
• Bottles and component parts may become damaged if mishandled, e.g. dropped, over-tightened, or knocked over.
• Take appropriate care in handling bottles and components.
• Do not use the breast milk if bottles or components become damaged.
• Do not use lithium batteries in the breast pump battery pack.
• Do not use the branded textile loop to wear the breast pump on the body.

Take a moment to read through this entire instruction manual before using this product for the first time.

PLEASE SAVE THESE INSTRUCTIONS.

Indications and contraindications for use

Indications for use
The Pump in Style is a powered breast pump to be used by lactating women to express and collect milk from their breasts. The powered breast pump is intended for a single user. This breast pump is intended to be used in a home environment.

Contraindications
There are no known contraindications for use with this product.

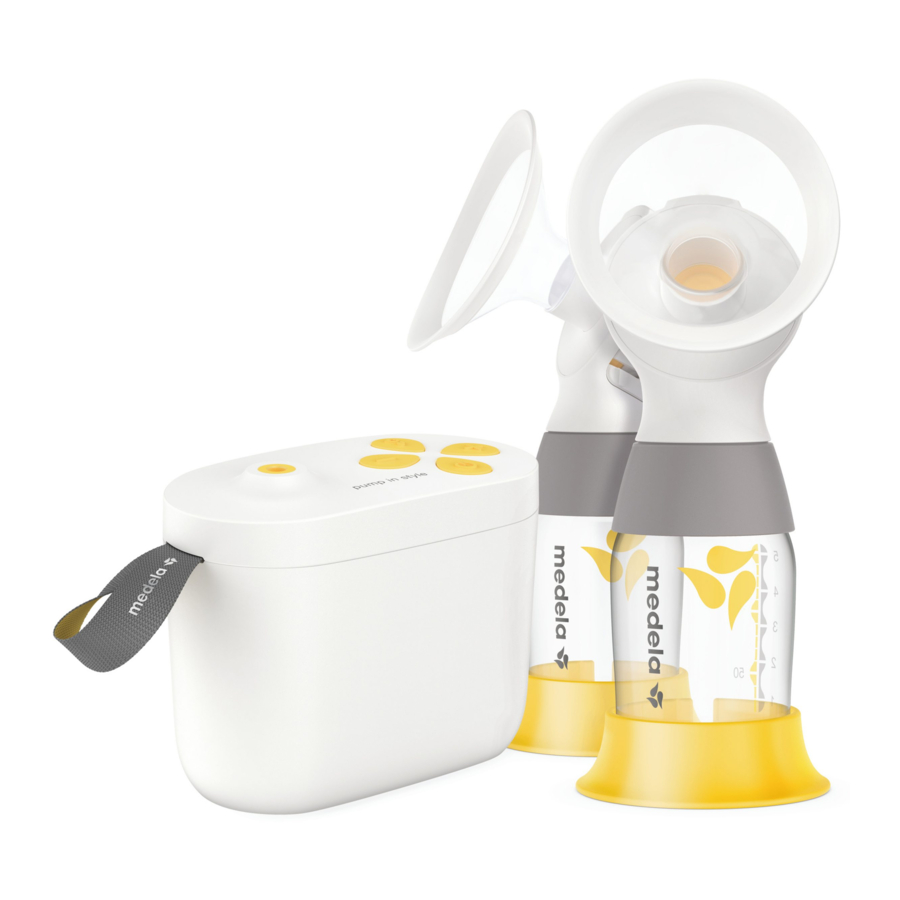

Product description / parts

Product description

This breast pump is a personal-use electric breast pump that includes 2-Phase Expression technology and is capable of single and double pumping.

Product parts

Not all parts listed are included with every Pump in Style model. See below for a complete list.

Parts not shown:
Breast pump bag
Item 101040561 or item 101040560

Cooler bag
Item 3007378
Replacement 67068
(includes ice pack & 4 bottles with lids)

Ice pack
Item 8117010
Replacement 87092

All pictures shown in these instructions are for illustration purpose only. The actual product may vary due to local differences or product enhancement. Medela reserves the right to substitute any component with a replacement of equivalent performance.

Breast pump model numbers
101041359
101041360
101041361
101041362
The model number (REF) can be found near the UPC code on the package your breast pump came in.

Battery pack
1x included with model numbers 101041360, 101041361 and 101041362.

Bottles
4x bottles included with model numbers 101041359, 101041361 and 101041362.
2x bottles included with model number 101041360.

Bottle stands
1x bottle stand included with model number 101041359.
2x bottle stands included with model number 101041361.

Breast pump
1x included with all model numbers

Breast pump bag
1x breast pump bag included with model numbers 101041359, 101041361 and 101041362.

Breast shields
2x 24mm PersonalFit PLUS breast shields with model number 101041360.
2x 21mm and 24mm PersonalFit PLUS breast shields with model number 101041359.
2x 21mm and 24mm PersonalFit Flex breast shields with model numbers 101041361 and 101041362.

Connectors and membranes
2x connectors and 2x membranes included with all model numbers.

Removable cooler bag
1x included with model numbers 101041361 and 101041362.

Ice pack
1x included with model numbers 101041359, 101041361 and 101041362.

Lids
4x lids included with model numbers 101041359, 101041361 and 101041362.
2x lids included with model number 101041360.

Manual breast pump
1x included with model number 101041359.

Power adaptor
1x included with all model numbers

Tubing
1x included with all model numbers

Cleaning

It's important you do the following before using your breast pump for the first time: Disassemble all parts & clean using your breast pump cleaning instructions.

For additional cleaning guidelines see the Center for Disease Control website – https://www.cdc.gov/healthywater/hygiene/healthychildcare/infantfeeding/breastpump.html

Supplies needed:

• Mild dish soap
• Clean wash basin
• Drinking-quality water
• Clean pot for boiling water

Parts to wash or sanitize:

• Breast shields
• Breast milk bottles and lids
• Connector bodies
• Connector caps
• Membranes

How to take apart

After each use
Disassemble the individual parts (breast shield, connector and breast milk bottle) as follows:

1. Remove the breast shield from the connector.

2. Open the back cap of the connector by squeezing both flaps and swiveling the cap upwards.

3. Remove the membrane from the connector body.

4. Separate the breast milk bottles and lids.

How to wash before first use and after each use

Washing is important for hygiene and serves to clean the surfaces of the parts by physically removing contamination. Wash the parts either by hand or in a dishwasher.

Washing in a dedicated basin
Do not place the parts directly in the kitchen sink for rinsing and washing. Use a dedicated wash basin for infant feeding items.

1. Rinse the disassembled parts, except for the tubing, with cold, clear drinking-quality water.
2. Soak with warm soapy water for 5 minutes and wash with a clean, unused dish cloth. Use a commercially available dish soap, preferably without artificial fragrances and coloring (pH neutral).
3. Rinse the parts with cold, clear drinking-quality water.
4. Store dry parts when not in use. Do NOT store wet or damp parts.

Wash in dishwasher

1. Place the disassembled parts, except for the tubing, on the top rack or in the cutlery section. Use a commercially available dishwashing detergent.

2. Store dry parts when not in use. Do NOT store wet or damp parts.

Useful information

• If using the dishwasher, parts may become discolored. This will not impact the function of the parts.

How to sanitize

Sanitize before first use and once per day
Sanitizing is important for hygiene and serves to kill living organisms, such as bacteria or viruses. Boil the parts either on the stovetop or use Quick Clean microwave bags.

Sanitize by boiling

1. Cover the disassembled parts, except for the tubing, with water and boil for 10 minutes.

2. Allow water to cool and gently remove parts from water with tongs.
3. Place parts on a clean surface and / or towel and allow parts to air dry.
4. Store dry parts when not in use. Do NOT store wet or damp parts.

Sanitize in the microwave

1. Use Quick Clean* bags in the microwave in accordance with the instructions on the bags. (sold separately)

2. Place parts on a clean surface and/or towel and allow parts to air dry.
3. Store dry parts when not in use. Do NOT store wet or damp parts.

Do NOT clean tubing in a micro-steam bag.

* Refer to local website/shops for availability in your country.

Cleaning the product

(as needed)
Supplies needed:

• Clean cloth and towel
• Drinking-quality water

Parts needed:

• Breast pump

1. Turn the breast pump off.
2. Unplug the breast pump from the power source.
3. Wipe the breast pump with a clean, damp cloth and dry with a clean towel.


Cleaning the tubing

Normally, cleaning of the tubing is not necessary. Only if condensation is present is it necessary to wash the tubing as described in these instructions.

Supplies needed:

• Drinking-quality water
• Mild dish soap

Parts needed:

• Tubing

Useful information

• Inspect the tubing. If you find condensation in the air tube, wash and dry it immediately or replace the tubing. If you see breast milk in the tubing do not attempt to wash or clean the tubing. Instead contact Medela Customer Service.

Washing the tubing

1. Rinse the tubing by pouring cool water into both short tubing ends until it flows out of the long tubing end.

2. Wash the tubing in warm, soapy water.
3. Rinse the tubing with clear water.

Drying the tubing

1. Shake out any water droplets.
2. Hang the tubing to air dry.
3. Make sure that the tubing is completely dry before using it.

Putting together your product

Parts needed:

• Breast pump
• Tubing
• Breast shields
• Breast milk bottles and lids
• Connector bodies
• Connector caps
• Membranes

NOTICE
Can lead to material damage.

To prevent damage to the breast pump all components must be completely dry before use.

1. Wash hands thoroughly.
2. Carefully insert the (dark yellow) membrane with the flap into the opening of the connector.

   • Make sure that the membrane forms a seal around the edge of the connector.
3. Close the lid of the connector until you hear a click.
4. Screw the connector onto the bottle.
5. Carefully push the breast shield into the connector body.

   • Choose a breast shield size that suits your needs.
     For proper sizing see MedelaBreastShields.com (U.S.) or Medela.ca/BreastShields (Canada).
6. The oval breast shields can be rotated (360°) and placed in the desired position to have the most comfortable fit for you.
7. Insert one of the short ends of the tubing into the opening of the connector lid.

8. Insert the long end of the tubing into the breast pump as far as it will go.


How to single pump

1. Insert the unused tubing end into the tubing holder.

   • Correctly assembled system (for single pumping).

How to double pump

1. Assemble the second breast pump kit, see above.

   • Correctly assembled system (for double pumping).

Powering your unit

1. Power adaptor (included with your breast pump)
2. Battery pack (included with some models see "Product description" section for detailed contents, also sold separately)
   1. You will need a total of 8 AA rechargeable batteries or alkaline batteries.
   2. Slide off both battery covers. One cover on each side of the battery pack.
   3. Place the negative (-) end of the battery against the front of the spring by pushing the battery in and down in one motion until the battery snaps into place. The positive (+) end of the battery should be near the positive sign on the battery pack.


Operating your device

Glossary

2-Phase Expression technology – research-based technology that mimics a baby's natural nursing rhythm.
Stimulation Phase – fast sucking/pumping rhythm to stimulate the milk ejection reflex and to start the milk flowing.
Let-down – when your milk starts to flow.
Expression Phase – slower sucking/pumping rhythm for gentle and efficient milk removal as quickly as possible.
Maximum Comfort Vacuum – the highest vacuum level where a mother feels comfortable during pumping. It is different for every mother.

Get ready to pump

1. Check to see if you are using the correct size breast shield. Visit MedelaBreastShields.com (U.S.) or Medela.ca/BreastShields (Canada) for more information.
2. Wash hands thoroughly.
3. Connect your assembled breast pump kit to the tubing port on the top of the breast pump.
4. Make sure that the breast pump kit is connected and positioned properly.
5. Place the breast shield on the breast so that the nipple is properly centered in the tunnel.

6. Hold the breast shield and connector onto your breast with your thumb and index finger.
7. Support your breast with the palm of your hand.

Expressing your milk

1. Press the On/Off button ( ) to start pumping.
   • The breast pump begins in the Stimulation Phase.
2. Adjust the vacuum by pressing the Increase vacuum ( ) and Decrease vacuum ( ) buttons to find your Maximum Comfort Vacuum - see below.
3. If your milk begins to flow, and the pump has not already changed to the Expression Phase, press the Let-down button ( ). By pressing this button, the pump switches from the Stimulation Phase to the Expression Phase.
   • Your pump will automatically switch to the Expression Phase after one minute of pumping.
4. You may need to adjust the vacuum by pressing the Increase vacuum ( ) and Decrease vacuum ( ) buttons to find your Maximum Comfort Vacuum.
5. When your pumping session is over, press the On/Off button ( ) on the breast pump to stop the pump.

After pumping

If you don't press any buttons for 30 minutes, the pump will shut off on its own.

Prepare your breast milk for storage:

1. Use the bottle stand (if available) to prevent the bottle from tipping over.
2. For information on storing your breast milk, visit BreastMilkGuidelines.com (U.S.) or Medela.ca/Breastfeeding/Moms-Journey/Storing-and-Thawing-Breast-Milk (Canada).
3. Remove tubing from the connector lid and breast pump.
4. Store tubing in clean bag/container.
   • Do not wrap tubing around the breast pump.

Finding your Maximum Comfort Vacuum

Maximum Comfort Vacuum is the highest vacuum level where pumping still feels comfortable.

1. Once you are pumping in the Expression Phase, increase the vacuum with the ( ) button until pumping feels slightly uncomfortable (not painful).
2. Then decrease the vacuum slightly with one press of the ( ) button.

Useful information

• Stimulation should be at a comfortable vacuum level, pumping at a level that is too high is not necessary.
• Reassess your Maximum Comfort Vacuum throughout your pumping experience. It can change throughout each stage of lactation.

Resources for you

Helpful resources to support you throughout your breast milk feeding journey.

Visit our website for helpful videos.
MedelaVideos.com (U.S.) or
youtube.com/channel/UCXu0hfQ0z-B1RNyS-2zKcSQ (Canada)

Choosing the right breast shield size can impact your breast milk supply. Find out why and get help choosing the right size.
MedelaBreastShields.com (U.S.) or
Medela.ca/breastshields (Canada)

Complement your breastfeeding journey with our free, personalized, award-winning app, designed to help you achieve your goals. Track baby's key activities, log nursing and pumping details, and get access to breastfeeding tips. Available on Android and iOS devices.
MyMedelaApp.com (U.S.) or
Medela.ca/breastfeeding/moms-journey/mymedela (Canada)

Learn more about storing your breast milk.
BreastMilkGuidelines.com (U.S.) or
Medela.ca/breastfeeding/moms-journey/storing-and-thawing-breast-milk (Canada)
or
Office On Women's Health
https://www.womenshealth.gov/breastfeeding/pumping-and-storing-breastmilk

An exclusive place for you to find the right information, tools, and service, delivered to you at the right time. Join now to get access to breastfeeding tips, support and deals for free! Only available in the United States.
MedelaMomsRoom.com

Whether it's your first latch or you have been breastfeeding for months, utilize these helpful solutions to keep you on the path of providing breast milk to your baby.
MedelaBreastfeedingUS.com/Breastfeeding-Guide (U.S.) or
Medela.ca/breastfeeding/moms-journey (Canada)

Troubleshooting

Problem	Solution
The breast pump generates no vacuum (motor not working) after you pressed the On/Off button	Make sure that the breast pump is attached to a power source. Try using the battery pack If the pump turns on with the battery pack, then you may have a a faulty power adaptor (replace power adaptor). If it still doesn't work, contact Medela Customer Service.
There is low or no suction	Make sure that all breast pump kit components are clean and dry and that connections are secure. Make sure the membranes are placed in the connector caps correctly and the connector caps are shut tightly. Make sure the breast pump shields are pushed into the connector caps tightly. While pumping, make sure the breast shields form a complete seal around the breast. When single pumping, make sure that the unused tubing end is correctly plugged into the tubing holder. If suction does not improve, contact Medela Customer Service.
The unit exterior got wet	Unplug the breast pump from the power source and turn off. Dry off the outside of the breast pump.
The unit has been submerged in water	Unplug the breast pump from the power source. Contact Medela Customer Service.

If you have not resolved the problem with your breast pump or you have more questions, please contact Medela Customer Service at 800-435-8316.

Warranty

For questions regarding this warranty or instructions on making a warranty claim, please call Medela Customer Service (toll free) at 1-800-435-8316. All returns must be sent with a Return Authorization Number from Medela, with your dated bill of sale or other proof of purchase and a brief statement of the problem to the following address:

Medela LLC – Returns, Door 4501
1101 Corporate Dr.
McHenry, IL 60050
ATTENTION: RETURNS

Medela Canada
4160 Sladeview Crescent Unit #8
Mississauga, ON L5L 0A1
ATTENTION: RETURNS
info@medela.ca

Meaning of symbols

Technical specifications

The operating life of this breast pump is defined to be approximately three 15-minute sessions per day, for one year. The operating life for the breast pump kit is 6 months.

Vacuum Range
-50 to -295 mmHg^{1, 2}
45 to 111 cpm

Mode of operation: Continuous

Size
140 x 77 x 111 mm

Weight
1.18 lbs (535g)

Power adapter P/N - 101036149
Power In	Power Out
100-240V~ 50/60 Hz 0.7A max	9.0 VDC 2A
Battery Pack P/N - 9017002
Power Out
9.6 - 12 VDC 2A
	Operation Temperature (5˚C to 40˚C) (41˚F to 104˚F)
	Transport / Storage Temperature (-25˚C to 70˚C) (-13˚F to 158˚F)
	Operation / Storage Humidity
	Transport / Storage Humidity
	Ambient Pressure kPa

Materials touching skin or coming in contact with milk

• Breast shield: Polypropylene, thermoplastic elastomer
• Connector: Polypropylene, silicone
• Bottle: Polypropylene
• Lid: Polypropylene

All parts that come in contact with breast milk are not made with BPA (Bisphenol A).

¹ Maximum Vacuum in Expression (when single or double pumping).
² Under the typical conditions, the Pump In Style breast pump is capable of providing vacuum levels from -50 to -240 mmHg.
Under the foreseeable limits of use conditions which produce peak vacuum of the greatest magnitude, the pump could produce vacuums of -295 mmHg.

Documents / Resources

References

• Breastfeeding | Office on Women's Health
• Breastfeeding & Pumping
• How to store, freeze and thaw breast milk | Medela
• Medela Canada - YouTube
• Medela Family App
• Articles
• Pumping and storing breastmilk | Office on Women's Health
• Articles

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Medela Pump In Style - Breast Pump Manual
