ALLEN & HEATH DX88-P - Digital Mixing Systems Manual

Introduction

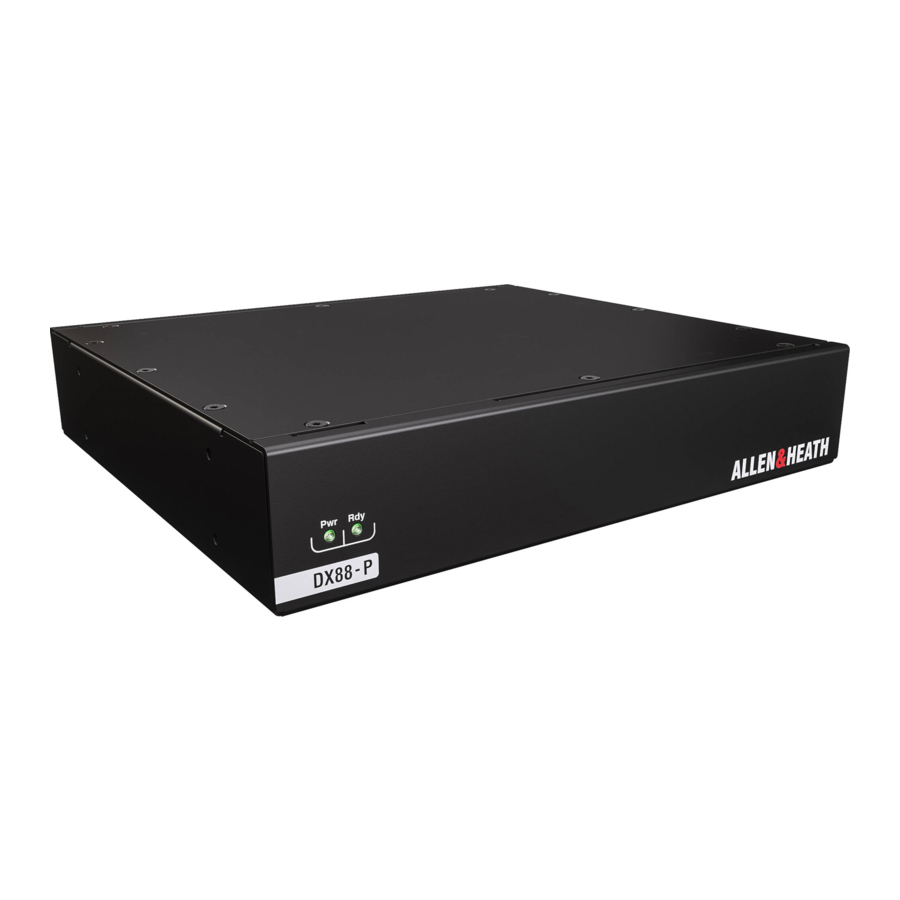

The DX88-P is a fixed installation I/O Expander for Allen & Heath 96kHz digital mixing systems. It provides 8 remote controlled mic/line preamps and 8 line outputs. It connects to the mixer over a single Cat5 cable.
A second DX88-P, DX164-W, DX012 or DX168 can be connected via the DX B connection.
The DX88-P can be operated freestanding or rack mounted using the optional DX88-P-RK19/X kit.

information Update the mixing system to the latest available version of firmware before connecting the DX Expander. The unit might operate incorrectly when running earlier firmware.

Check that you have received the following with your DX88-P unit:

16 x 3-Way Phoenix Contact Plug
DC 12V power supply

Front panel

Power LED indication and Ready Indicator.
Ready lights up when the unit is successfully booted and ready to pass audio.

Rear panel

Inputs
Balanced Phoenix mic/line inputs.
Output
Balanced Phoenix line outputs.
DC Input
DC 12V connector via external PSU.

information Use only the power supply provided with the product (Adapter Tech EDA4012-C14, A&H part code AM13303). The use of a different power supply can cause electrical or fire hazards.

DX A
Ethernet port for connection to the mixing system. The cable carries the audio signals as well as preamp control and system status data.
DX B
Ethernet port for daisy chaining of a second unit.
Vents
Ensure good ventilation at the sides and back of the unit.
Avoid obstruction of vents while operating. Avoid dirt or liquid ingress.

Connection

Connection Diagram

Cables

Cat5e or higher STP cable is required for connections, with a maximum cable length of 100m per connection.

information The DX88-P and its network connection are for indoor use only.

Specification

Mic/Line Inputs	Balanced Phoenix, +48V phantom power
Mic/Line Preamp	Fully recallable
Input Sensitivity	-60 to +15dBu
Analogue Gain	+5 to +60dB, 1dB steps
Pad	-20dB Active PAD
Maximum Input Level	+30dBu (PAD in)
Input Impedance	>4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN	-127dB with 150Ω source
Analogue Outputs	Balanced Phoenix
Output Impedance	<75Ω
Nominal Output	+4dBu = 0dB meter reading
Maximum Output Level	+21dBu
Residual Output Noise	-92dBu (muted, 20-20kHz) -90dBu (muted, 20-40kHz)
Operating Temperature Range	0°C to 40°C (32°F to 104°F)
Power
DC Input	12V DC via external PSU, 3.3A max
Mains Power Consumption	39.6W max
Dimensions and Weight	Width x Depth x Height x Weight
DX88-P	216.5 x 195.4 x 42.8 mm x 1.51kg (8.5" x 7.7" x 1.7" x 3.33lbs)
