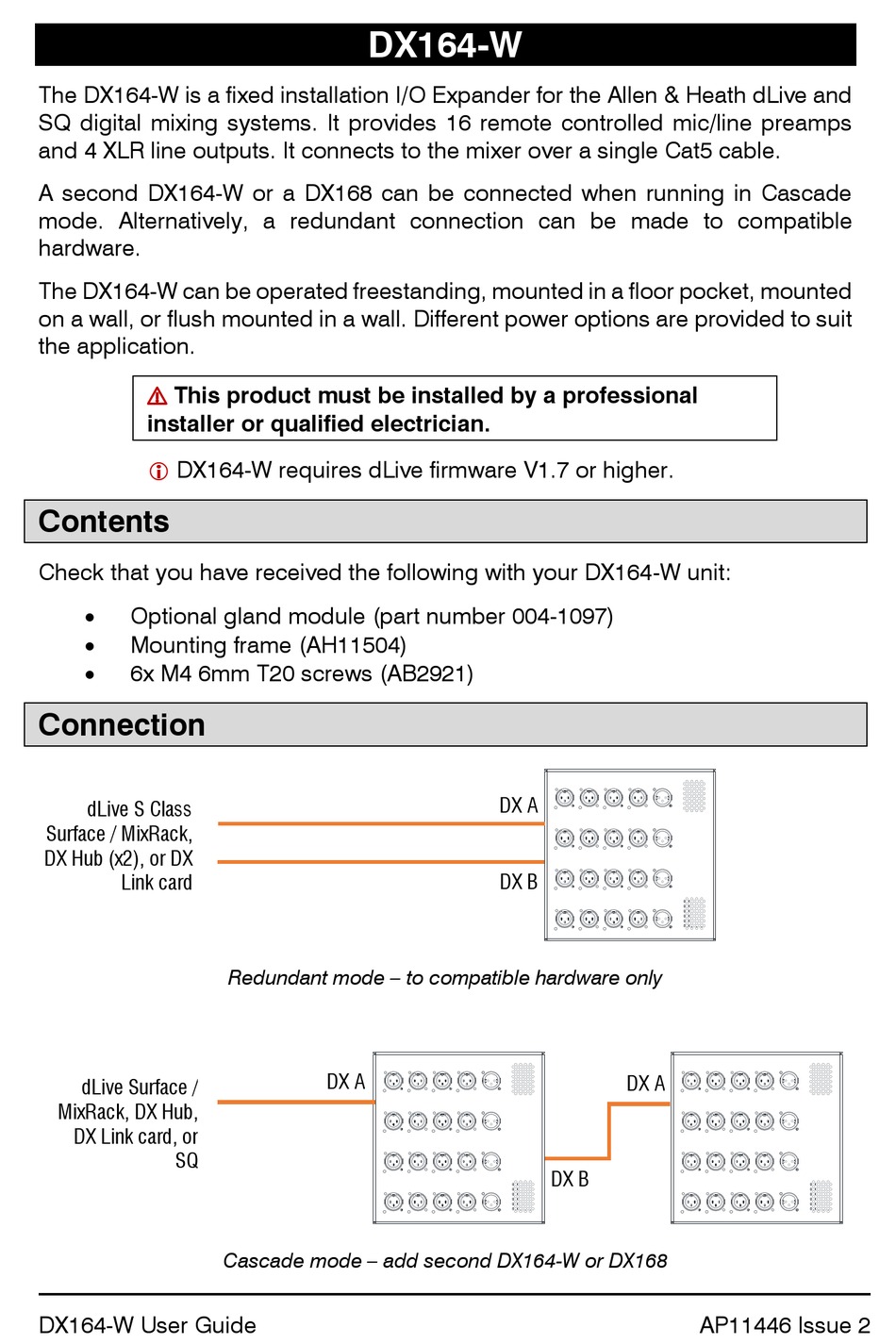

The DX164-W is a fixed installation I/O Expander for the Allen & Heath dLive and
SQ digital mixing systems. It provides 16 remote controlled mic/line preamps
and 4 XLR line outputs. It connects to the mixer over a single Cat5 cable.
A second DX164-W or a DX168 can be connected when running in Cascade
mode. Alternatively, a redundant connection can be made to compatible
hardware.
The DX164-W can be operated freestanding, mounted in a floor pocket, mounted
on a wall, or flush mounted in a wall. Different power options are provided to suit
the application.
⚠
This product must be installed by a professional
installer or qualified electrician.
DX164-W requires dLive firmware V1.7 or higher.
Contents
Check that you have received the following with your DX164-W unit:
•
Optional gland module (part number 004-1097)
•
Mounting frame (AH11504)
•
6x M4 6mm T20 screws (AB2921)
Connection
dLive S Class
Surface / MixRack,
DX Hub (x2), or DX
Link card
dLive Surface /
MixRack, DX Hub,
DX Link card, or
SQ
DX164-W User Guide
DX164-W
Redundant mode – to compatible hardware only
DX A
Cascade mode – add second DX164-W or DX168
DX A
DX B
DX A
DX B
AP11446 Issue 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the DX164-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALLEN & HEATH DX164-W

Summary of Contents for ALLEN & HEATH DX164-W

  • Page 1 DX164-W The DX164-W is a fixed installation I/O Expander for the Allen & Heath dLive and SQ digital mixing systems. It provides 16 remote controlled mic/line preamps and 4 XLR line outputs. It connects to the mixer over a single Cat5 cable.
  • Page 2 DX B mode switch Switch to Redundant for 2 cable connection to compatible hardware e.g. dLive S Class or DX Link card. Switch to Cascade for connection to a second DX164-W or DX168 unit.  DC 12V Input Can be used instead of AC mains to power the unit where adequate DC distribution is provided in a building.

  • Page 3: Front Panel

    Input sockets Balanced XLR mic/line inputs with +48V Phantom Power indicator. The preamps are built into the DX164-W and their Gain, Pad and +48V are controlled from the mixer via the DX link. The +48V indicator detects voltage at the socket whether supplied by the DX164-W or received from an external source.

  • Page 4: Installation - Mounting

    Fix the frame to the wall using appropriate fixings or screws for the type of wall, then align the threaded inserts on the sides of the DX164-W with the frame, and secure the unit in place with the 6x M4 6mmT20 screws provided.
  • Page 5 Floor mounting The DX164-W can be installed in a floor box / stage pocket / dip trap. We recommend using the ACE Backstage 174SLBK stage pocket system for use with the DX164-W. Other options The DX164-W can fit a 12x12” NEMA Type 1 box or equivalent.
  • Page 6 Dimensions 210.00 DX164-W User Guide AP11446 Issue 2...

  • Page 7: Specification

    35W max DC Input 12V DC, 3A max Dimensions and Weight Width x Depth x Height x Weight DX164-W 210 x 87 x 210 mm x 3.2kg (8.25” x 3.5” x 8.25” x 7lbs) DX164-W User Guide AP11446 Issue 2...
  • Page 8 User Licence Agreement (EULA), a copy of which can be found at: www.allen-heath.com/legal Register your product with Allen & Heath online at: http://www.allen-heath.com/support/register-product/ Check the Allen & Heath website for the latest documentation and software updates ALLEN&HEATH Copyright © 2018 Allen & Heath. All rights reserved DX164-W User Guide AP11446 Issue 2...
