ALLEN & HEATH DX012 - Output Expander Manual

Introduction

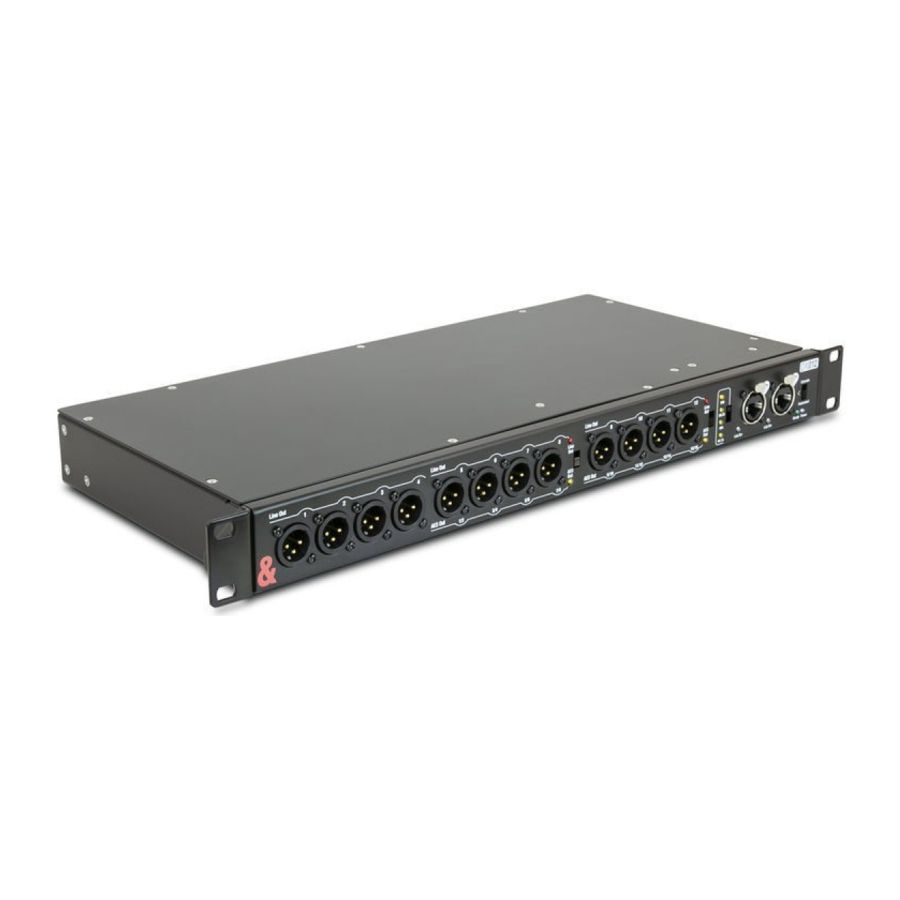

The DX012 is a 19" rack-mountable output expander for Allen & Heath digital mixing systems. It provides 12 XLR outputs, configurable as 12 analogue, 8 analogue + 4 stereo AES, or 4 analogue + 8 stereo AES outputs. It connects to the mixer over a single Cat5e cable.
A second DX012, DX168 or DX164-W can be connected when in Cascade mode. Alternatively, a redundant connection can be made to compatible hardware.

Front panel

Output sockets 1-4
Balanced analogue XLR outputs operating at nominal +4dBu level.
Output sockets 5-8
Balanced analogue XLR outputs operating at nominal +4dBu level, configurable to stereo AES outputs 1-8. Use the recessed switch to choose analogue or AES digital operation.
Output sockets 9-12
Balanced analogue XLR outputs operating at nominal +4dBu level, configurable to stereo AES outputs 9-16. Use the recessed switch to choose analogue or AES digital operation.
Sample Rate
Global selection for sample rate of the AES outputs - 44.1kHz, 48kHz, 88.2kHz or 96kHz.
DX A
EtherCon port for connection to the mixing system.
DX B
EtherCon port for daisy chaining of a second unit or cable redundancy. Switch to Redundant for 2 cable connection to compatible hardware e.g. dLive S Class or DX Link card. Switch to Cascade for connection to a second DX012, DX168 or DX164-W unit.

Rear panel

Vents
Ensure good ventilation at the sides and back of the unit. Avoid obstruction of vents while operating. Avoid dirt or liquid ingress.
Mains power input
Switch, IEC connector and fuse for the built-in universal voltage PSU. This accepts voltages from 100 to 240V AC 50/60Hz. Secure the cable to the plastic P-clip using a T20 screwdriver.

Rack ears

The rack ears can be reversed so the unit is mounted with the XLR connectors facing the rear of the rack. Using a Torx T8 driver, remove the 3x M3 screws holding the rack ears in place on each side, reposition the rack ears as shown below, and secure them again using the same screws.
Rack ears mounting

information Only use the M3x5mm countersunk screws provided with the unit.

Connection

Connection - Redundant mode
Redundant mode – to compatible hardware only

Connection - Cascade mode
Cascade mode – add second DX012, DX168 or DX164-W

information DX012 requires dLive firmware V1.8 or higher / SQ firmware V1.4 or higher.

Cables

Cat5e or higher STP cable is required for connections, with a maximum cable length of 100m per connection.
Allen & Heath can provide a number of Cat6 cables suitable for use with the DX012:

AH9997	2m CAT5e cable with Neutrik EtherCon locking connectors
AH10887	100m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10886	80m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10885	50m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10884	20m drum of CAT6 cable with Neutrik EtherCon locking connectors

Contact your local A&H dealer for more information.

Specification

Digital Outputs	AES3 2 Ch XLR, 2.5V balanced, terminated 110Ω
Sample Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Analogue XLR Outputs	Balanced, Relay protected
Output Impedance	<60Ω
Nominal Output	+4dBu = 0dB meter reading
Maximum Output Level	+22dBu
Residual Output Noise	-95dBu (22Hz-22kHz)
THD+N	-98dB (0dBu, 1kHz)
Operating Temperature Range	0°C to 40°C (32°F to 104°F)
Power
Mains Voltage Operating Range	100-240V AC, 50/60Hz
Mains Power Consumption	35W max
Dimensions and Weight	Width x Depth x Height x Weight
DX012	482.6 x 48.2 x 214.7 mm x 2.95kg (19" x 1.9" x 8.5" x 6.5lbs)
DX012 (boxed)	600 x 335 x 150 mm x 4.1kg (23.6" x 13.2" x 5.9" x 9lbs)
