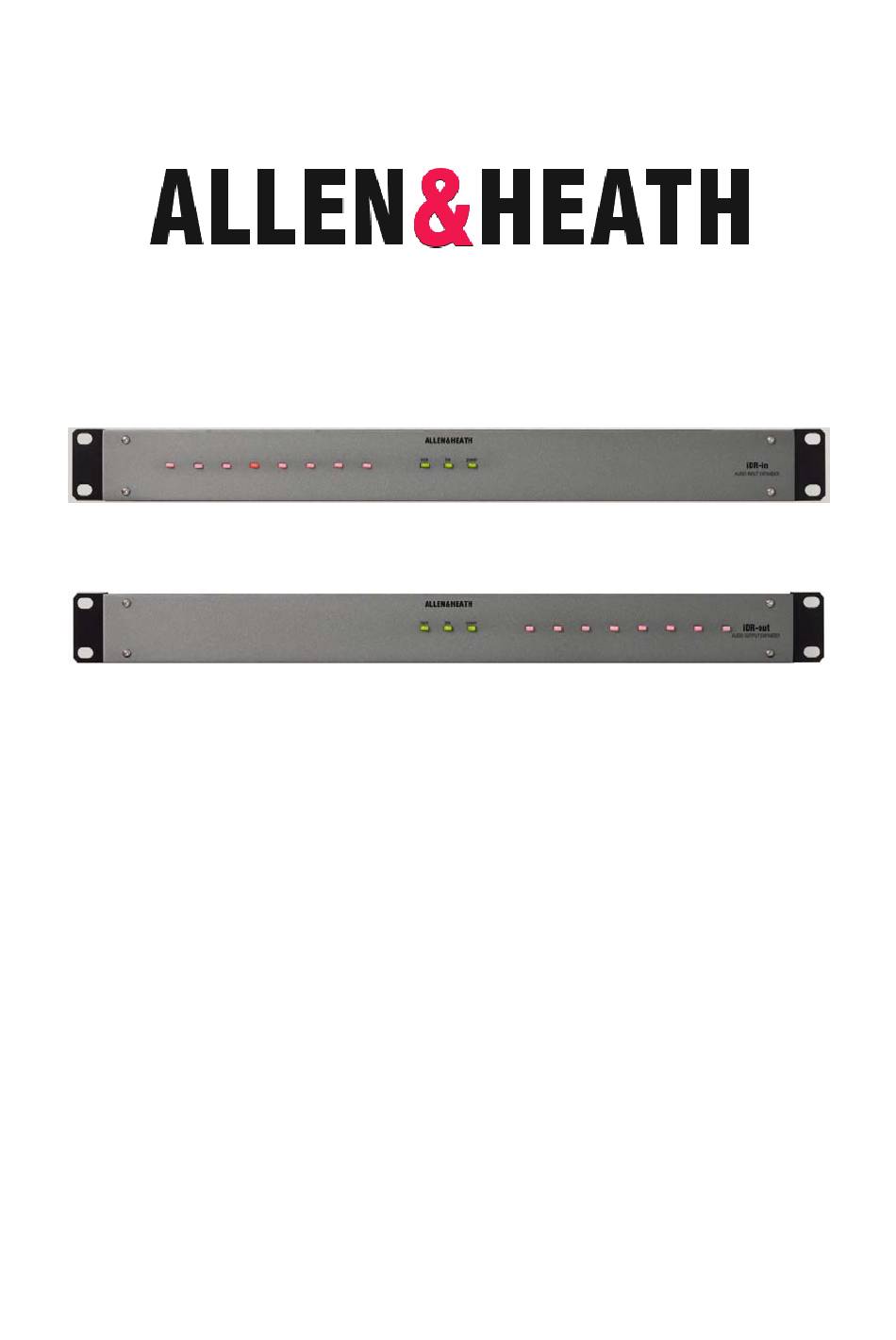

- Page 1 EXPANDERS 8 IN / 8 OUT AUDIO EXPANDERS SERVICE INFORMATION Publication AP5286...
- Page 2 Company contacts Technical support support@allen-heath.com See web for local contact Operating software iDR System Manager Download from web site Help file iDR-in/out user guide AP4774 Operating instructions Performance specification iDR-8 user guide AP4530 iDR system overview iDR-4 user guide AP5230...
- Page 3 Technology: The iDR-in/out expanders use SMT (surface mount) PCB technology. In certain cases it may be better to replace a faulty assembly rather than try to fix it without the appropriate tools and training. The power supply uses a built-in universal mains input, switched mode circuit which should be serviced by suitably qualified personnel only.
- Page 4 Contents Log Internal Layout drawing ..........idr-inout_layout_1.pdf Surface and Main Parts..........idr-inout_parts_1.pdf Analog Input Pcb .......idr-inout_003-004_analoginput_1.pdf Front PCB........idr-inout_003-025_expanderfront_1.pdf Input Comms PCB ......... idr-inout_003-026_incomms_1.pdf Output Comms PCB ......idr-inout_003-027_outcomms_1.pdf Power Supply PCB......idr-inout_003-028_expanderpsu_1.pdf Analog Output PCB......idr-inout_003-029_analogoutput_2.pdf idr-inout_ap5286_2.doc...
