Introduction

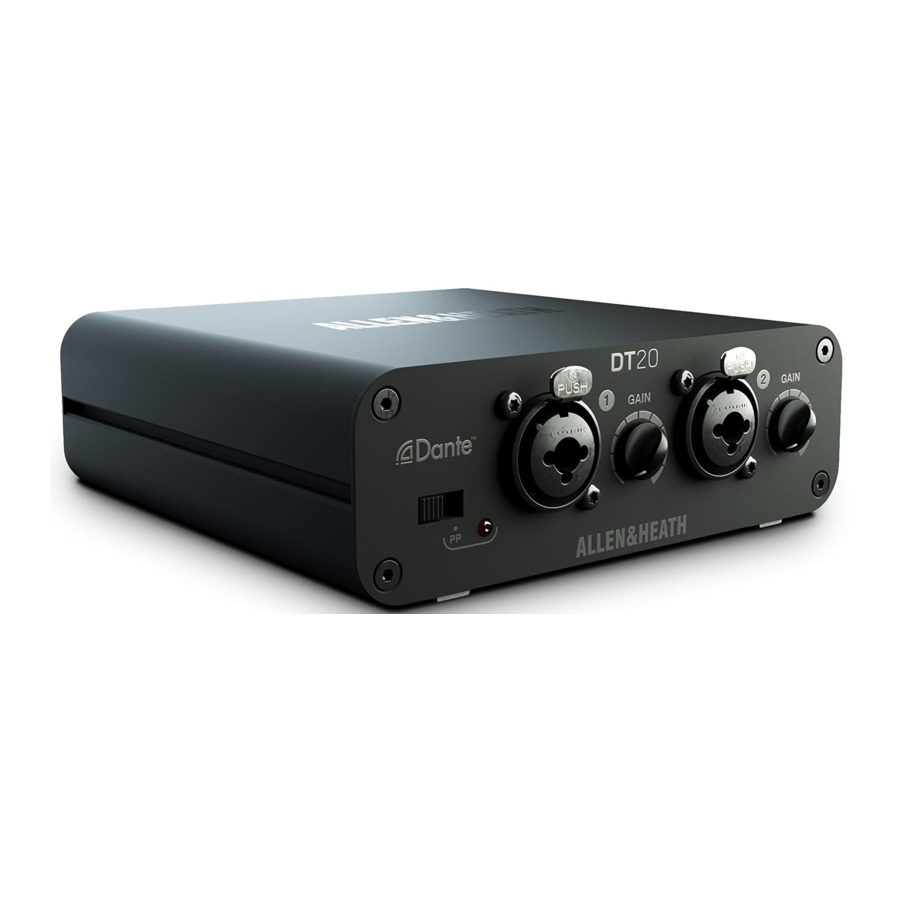

The DT20 is a portable, PoE enabled, rugged Dante I/O unit. It can be used to complement Allen & Heath digital mixing systems, or any other system on a Dante network. It provides 2 mic/line preamps with local gain and phantom power control. It connects to the Dante network over a single Cat cable.
The DT20 can be ordered in either of two versions:
- DT20 - standard version with rubber feet and 12V power supply.
- DT20-M - version for fixed installation with brackets for surface mounting and no external power supply.
Software
Visit the Audinate website to learn more about Dante, and download Dante Controller to route audio and configure devices on a Dante network: https://www.audinate.com/
Specification
| Mic/Line Inputs | |
| Mic Inputs | Balanced XLR, +48V phantom |
| Analogue Gain | 0 to +55dB |
| Line Inputs | Balanced TRS, -20dB PAD |
| Maximum Input Level | +30dBu (TRS in) |
| Input Impedance | >4kΩ (XLR), >10kΩ (TRS) |
| Dante | 48kHz/96kHz |
| Power and Temperature | |
| DC Input | +12V DC 1.25A |
| Power Consumption | 10W max |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F |
| PoE Requirements | 802.3af 15W |
| Dimensions and Weight | Width x Depth x Height x Weight |
| DT20 | 130 x 136 x 43 mm, 0.5kg (5.1" x 5.4" x 1.7", 1lbs) |
Surface mounting
The surface mounting ears allow the device to be mounted on top or under a surface, desktop or podium, or vertically on a wall or partition. They can be installed to face either the top or bottom of the unit.
The DT20-M comes with surface mounting ears and preassembled insert bars. Position the ears centrally on each side of the unit, aligned with the threaded holes on the insert bars, facing either up or down as required, and secure them using the 4x M3x6mm screws provided in the package.
For surface mounting of a standard DT20, the optional surface mounting kit DT-SMK is available.
Rack mounting
Up to two units can be rack-mounted in a single 1U rack space with the optional rack kit DT-RK19.
Front panel
- Input sockets
Balanced combi mic/line inputs. The TRS inputs have an integrated 20dB Pad for use with line level signals. - Gain
Rotary control for the analogue gain of the preamp, 0dB to 55dB. To prevent any tampering with the gain level, the knobs can be removed and replaced with the blanking lids provided. - PP
+48V Phantom Power switch and indicator.
Rear panel
- Dante
EtherCon port for connection to the Dante network and Link / Activity LED indicator. Use a PoE Ethernet switch or PoE injector to power the unit via this port. - Power
LED indicator and Ready indicator. Ready lights up when the unit is successfully booted and ready to pass audio. - Factory Reset
Hold down the recessed switch while powering up. After at least 10 seconds, remove power then power up again normally to reset the network settings and name. This will delete any static IP address and revert to factory default (DHCP / zero-conf). - DC input
DC 12V connector. Only use with the power supply provided with the unit.
Register your product with Allen & Heath online at:
http://www.allen-heath.com/support/register-product/
