Summary of Contents for ALLEN & HEATH DX32

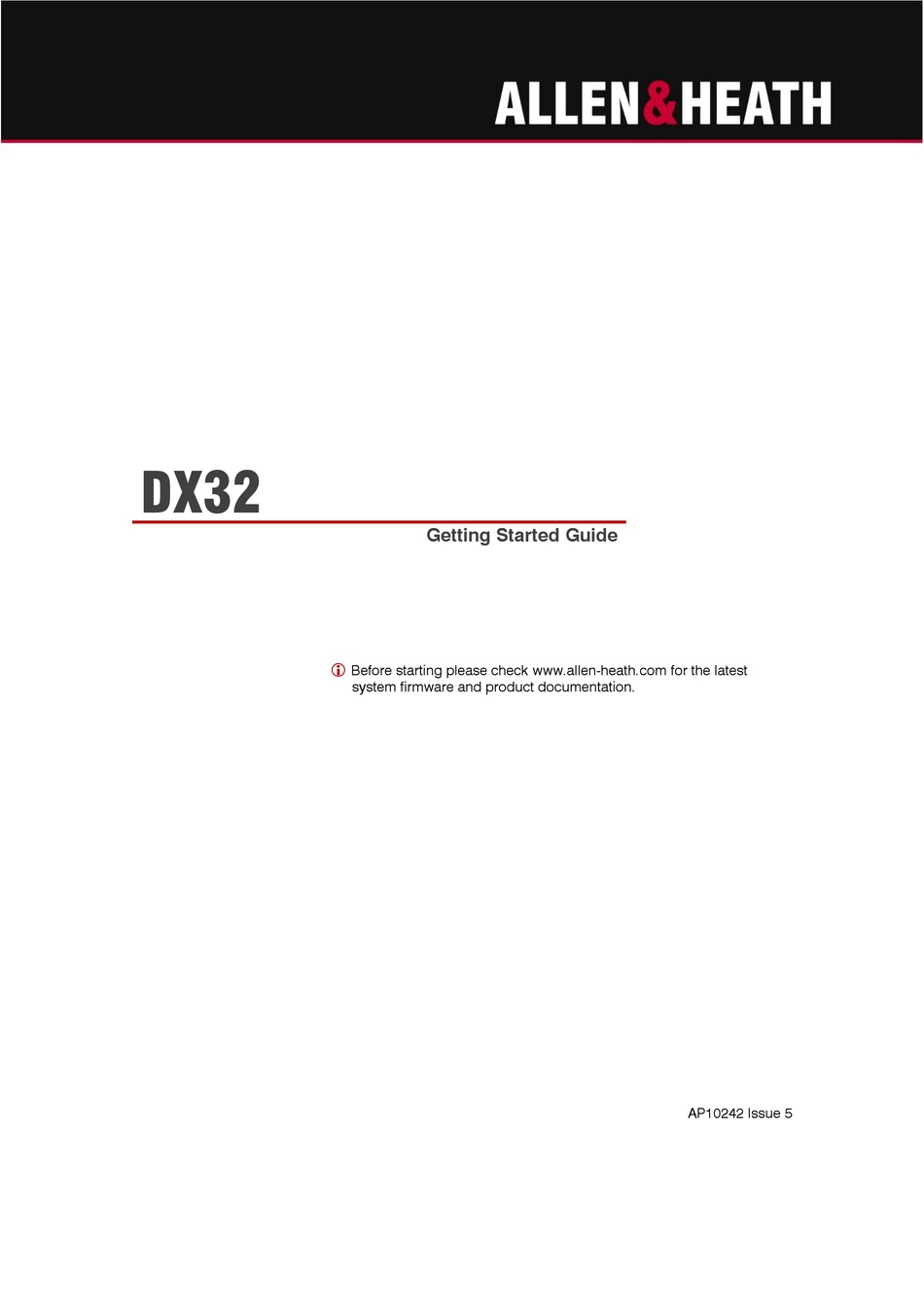

- Page 1 DX32 Getting Started Guide Before starting please check www.allen-heath.com for the latest system firmware and product documentation. AP10242 Issue 5...
- Page 2 Check with your Allen & Heath distributor or agent for any additional warranty information which may apply. If further assistance is required please contact Allen & Heath Ltd. DX32 Getting Started Guide Copyright © 2021 Allen & Heath. All rights reserved.
-
Page 3: Important - Read Before Starting
Allen & Heath website. Allen & Heath do not accept liability for damage caused by maintenance, repair or modification by unauthorised personnel. Register your product Register your product online at www.allen-heath.com/register. DX32 Getting Started Guide AP10242 Issue 5... -
Page 4: Table Of Contents

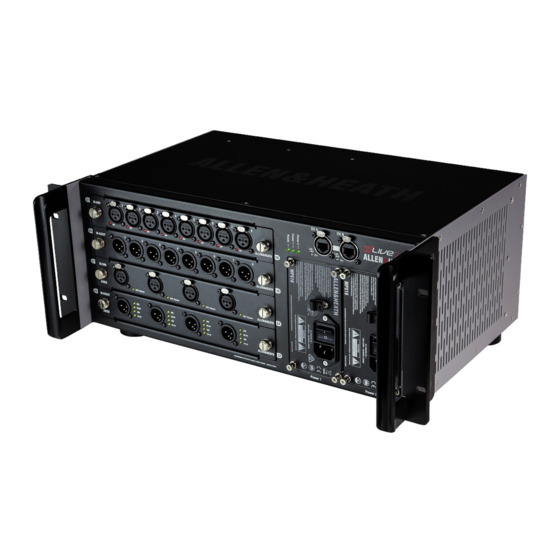

IEC mains lead Introduction The DX32 is a rack I/O Expander for Allen & Heath 96kHz digital mixing systems. It provides 4 slots for 8ch analogue or digital I/O cards, in any combination, and a modular power supply with optional redundancy. -
Page 5: Installing The Expander
1.2 Rack mounting and flight casing The DX32 is designed as a 19 inch rack mount unit and occupies 4U of rack space. The plastic feet may need to be removed before rack mounting; retain them for future use. -
Page 6: Front Panel
A plastic P-clip cable clamp is provided to secure the mains cable. Slot the cable in or lock it in place using a star Torx T20 screwdriver to refit the clamp around the cable. DX32 Getting Started Guide AP10242 Issue 5... -
Page 7: Rear Panel
– Removable plastic feet. Use a flat-head screwdriver to remove or reposition the plastic feet. Kensington Lock - A slot for fitting standard Kensington anti-theft security devices. – Ultra-quiet fan. Make sure the ventilation opening is not obstructed. DX32 Getting Started Guide AP10242 Issue 5... -
Page 8: I/O Modules
– Next-generation preamp design with DC coupled gain stage and 32bit ADC for class- leading conversion. PRIME OUTPUT – Next-generation output design using the very latest 32bit converters and specially selected op amps for ultra-low noise. DX32 Getting Started Guide AP10242 Issue 5... -
Page 9: Connect And Power Up
80m drum of CAT6 cable with Neutrik EtherCon locking connectors AH10885 50m drum of CAT6 cable with Neutrik EtherCon locking connectors AH10884 20m drum of CAT6 cable with Neutrik EtherCon locking connectors Contact your local A&H dealer for more information. DX32 Getting Started Guide AP10242 Issue 5... -
Page 10: Dimensions
6. Dimensions 24.30 433.00 465.10 481.60 289.00 311.00 DX32 Getting Started Guide AP10242 Issue 5... -
Page 11: Technical Specs
-60 to +15dBu Analogue Gain +5 to +60dB, 1dB steps -20dB Active PAD Latency + 8 samples, DX32 to Mixrack or DX32 to Surface (DX hop) Maximum Input Level +30dBu (PAD in) System latency <0.6 ms (MixRack XLR in to...
