ALLEN & HEATH DX012 Getting Started Manual

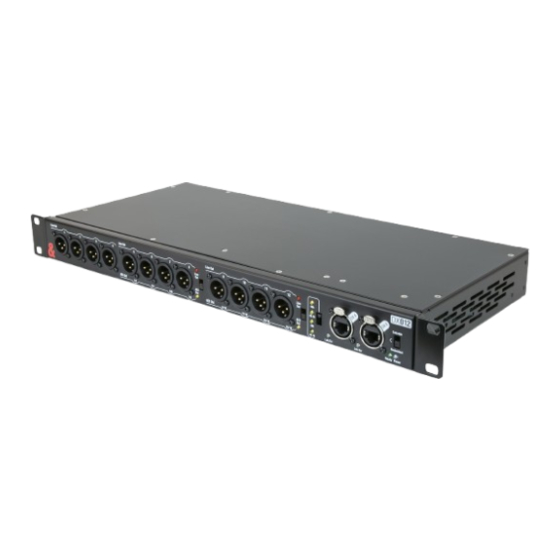

The DX012 is a 19" rack-mountable output expander for Allen & Heath digital
mixing systems. It provides 12 XLR outputs, configurable as 12 analogue, 8
analogue + 4 stereo AES, or 4 analogue + 8 stereo AES outputs. It connects to
the mixer over a single Cat5e cable.
A second DX012, DX168 or DX164-W can be connected when in Cascade mode.
Alternatively, a redundant connection can be made to compatible hardware.

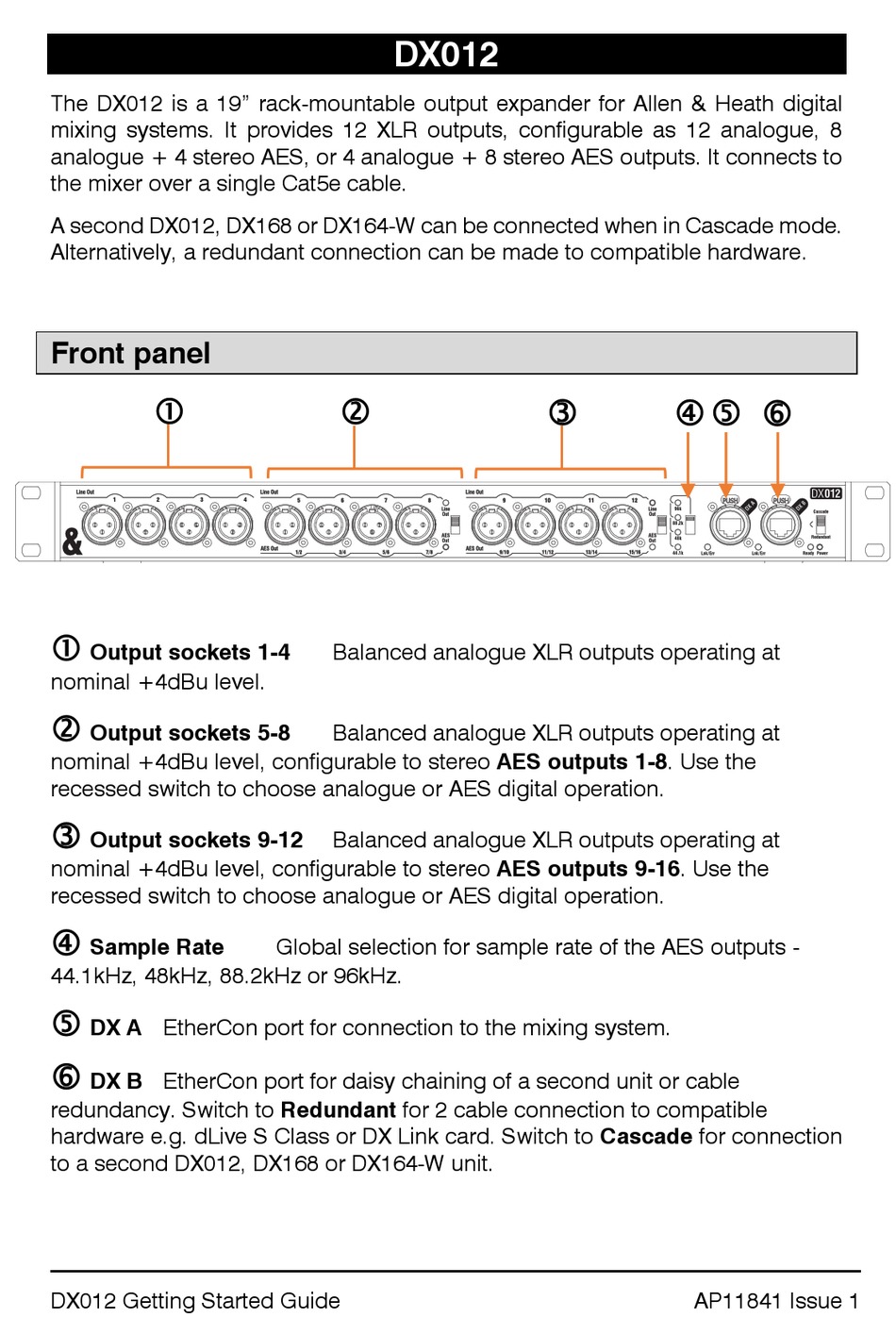

Front panel



Output sockets 1-4
nominal +4dBu level.

Output sockets 5-8
nominal +4dBu level, configurable to stereo AES outputs 1-8. Use the
recessed switch to choose analogue or AES digital operation.

Output sockets 9-12
nominal +4dBu level, configurable to stereo AES outputs 9-16. Use the
recessed switch to choose analogue or AES digital operation.

Sample Rate
44.1kHz, 48kHz, 88.2kHz or 96kHz.

DX A EtherCon port for connection to the mixing system.

DX B EtherCon port for daisy chaining of a second unit or cable
redundancy. Switch to Redundant for 2 cable connection to compatible
hardware e.g. dLive S Class or DX Link card. Switch to Cascade for connection
to a second DX012, DX168 or DX164-W unit.
DX012 Getting Started Guide
DX012

Balanced analogue XLR outputs operating at
Balanced analogue XLR outputs operating at
Balanced analogue XLR outputs operating at
Global selection for sample rate of the AES outputs -

  
AP11841 Issue 1
