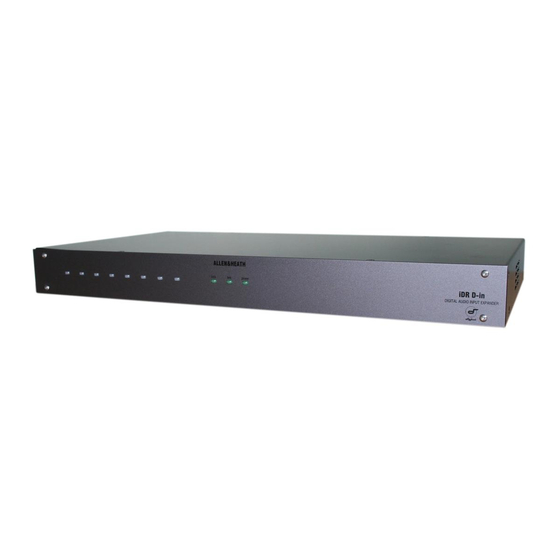

iDR D-in and iDR D-out are add-on digital audio expander units for the Allen & Heath iDR-4 and iDR-8 audio mix
processors. They provide AES3 and SPDIF format digital audio inputs and outputs to add to the analogue audio
connections on the main unit. The iDR D-in has 8 inputs arranged as 4 pairs. Either the AES3 (XLR) or the SPDIF
(RCA phono) input may be selected for each pair. The iDR D-out has 8 outputs arranged as 4 pairs. These provide
AES3 and SPDIF outputs simultaneously available. Only one input and one output expander may be added to the iDR
system bringing it up to a maximum 16x16 audio matrix. This may be any combination of the analogue and digital
expanders available for the iDR system. These units do not have any processing built in. They simply convert the
AES3 and SPDIF formats to work with the 8 channel wide iDR digital bus which feeds the main unit via a CAT5 STP
cable. The processing and mixing is handled by the main iDR-4 or iDR-8 unit which features the full 16x16 DSP matrix.
The iDR System Manager software is used to select either the AES3 or the SPDIF connection for each expander input
pair. Both expander units have 8 front panel LEDs in addition to the 3 status indicators. These are 3-colour soft LEDs
which can be assigned as audio meters, mute indicators or patch related indicators. They are programmed in the
usual way using the iDR System Manager software. Control of the expanders is via the DR-Link port using a CAT5 STP
cable. This means that two CAT5 cables are required to interconnect an expander to the main unit. Maximum distance
between the units is 250 metres. Local mains power is required.
NOTE:
parts inside. Any changes or modifications to the equipment not approved by
Allen & Heath could void the compliance of the equipment and therefore the
users authority to operate it.
Whilst we believe the information in this guide to be reliable we do not assume
responsibility for inaccuracies. We also reserve the right to make changes in
the interest of further product development.
iDR D-in/out User Guide AP6636

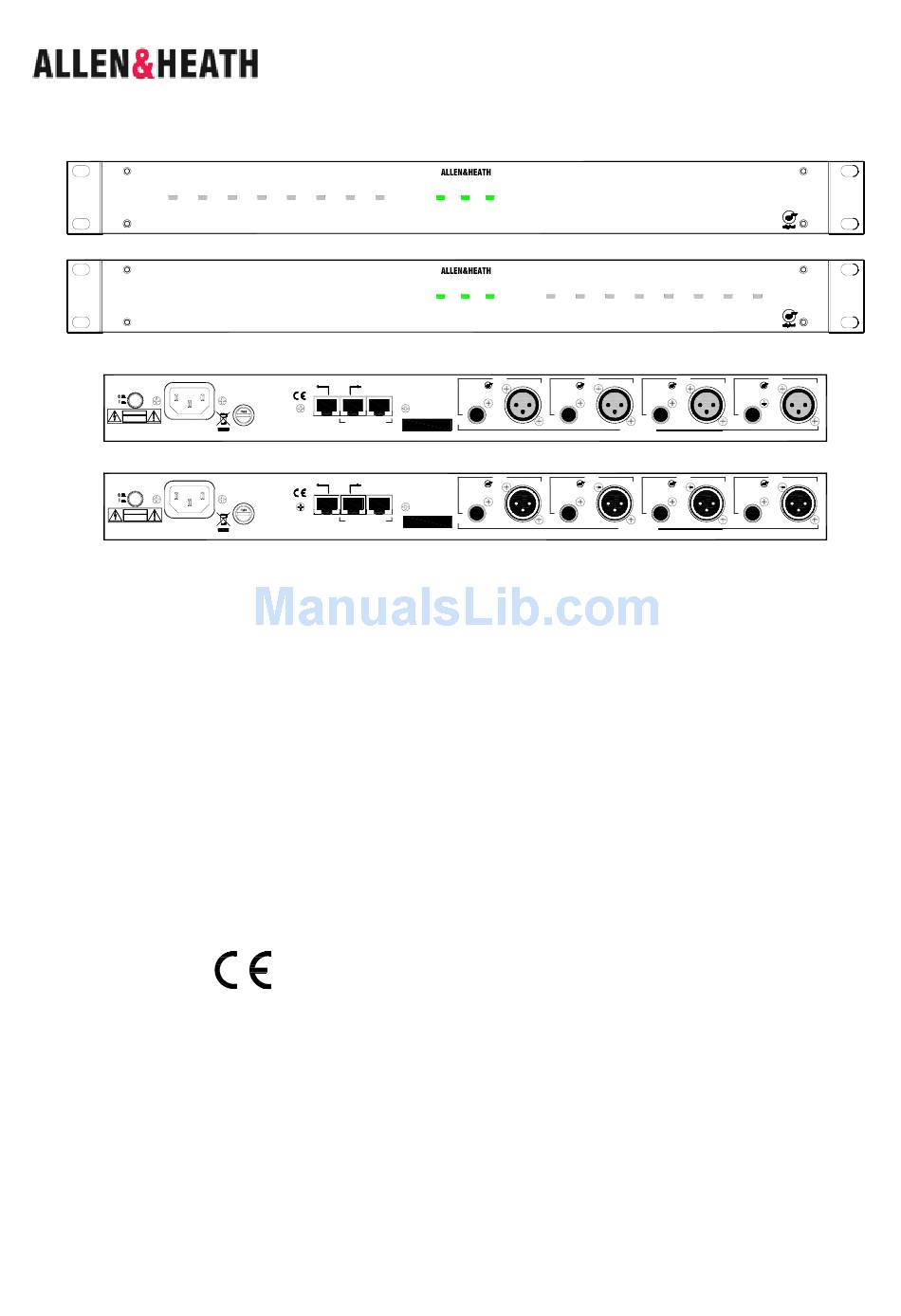

iDR D-in/out DIGITAL EXPANDERS

User Guide

lock
lock
EXPANDER INPUTS
next
previous
ALLEN&HEATH
OUT DR-LINK IN
AUDIO OUT
iDR D-in
S/N
DIGITAL EXPANDER
EXPANDER OUTPUTS
next
previous
ALLEN&HEATH
OUT
IN
AUDIO IN
DR-LINK
iDR D-out
S/N
DIGITAL EXPANDER
This product complies with the European Electromagnetic
Compatibility directives 89/336/EEC & 92/31/EEC and the
European Low Voltage Directives 73/23/EEC & 93/68/EEC.
Do not remove the cover of the unit. There are no user serviceable
iDR D-in/out User Guide AP6636 Issue 1
Copyright © 2008 Allen & Heath Limited. All rights reserved
link
power
link
power
4
3
AES IN
AES IN
S/PDIF IN
S/PDIF IN
DIGITAL INPUTS
Made in the UK by ALLEN&HEATH LIMITED
4
3
AES OUT
AES OUT
S/PDIF OUT
S/PDIF OUT
DIGITAL OUTPUTS
Made in the UK by ALLEN&HEATH LIMITED
AP6636
iDR D-in
DIGITAL AUDIO INPUT EXPANDER
iDR D-out
DIGITAL AUDIO OUTPUT EXPANDER
2
1
AES IN
AES IN
S/PDIF IN
S/PDIF IN
2
1
AES OUT
AES OUT
S/PDIF OUT
S/PDIF OUT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDR D-in and is the answer not in the manual?

Questions and answers

Summary of Contents for ALLEN & HEATH iDR D-in

  • Page 1: User Guide

    They provide AES3 and SPDIF format digital audio inputs and outputs to add to the analogue audio connections on the main unit. The iDR D-in has 8 inputs arranged as 4 pairs. Either the AES3 (XLR) or the SPDIF (RCA phono) input may be selected for each pair.
  • Page 2 The iDR D-in and iDR D-out expanders can be rack mounted or free standing. There are no user controls on the front panel, only the status and assignable LEDs. Allow a minimum of 75mm clearance behind the unit for the connectors and cables. Ensure adequate ventilation to the side of and behind the unit.
  • Page 3 12 LR 11 LR 10 LR 9 LR expanders are also available. The iDR D-in AUDIO OUT iDR D-in connects to the iDR-4(8) AUDIO IN. The iDR D-out AUDIO IN connects to the iDR-4(8) AUDIO OUT. Ensure that the expander DR-Link IN connects to DR-Link on the iDR-4(8) it is associated with.
  • Page 4: Power Supply

    Inputs x8 Soft LEDs 4x pairs AES3 and SPDIF Assignable by the installer Sample rate conversion iDR D-in 8x front panel indicators Select using iDR System Manager iDR D-out 8x front panel indicators 3-colour – green, yellow, red, off Outputs x8...
